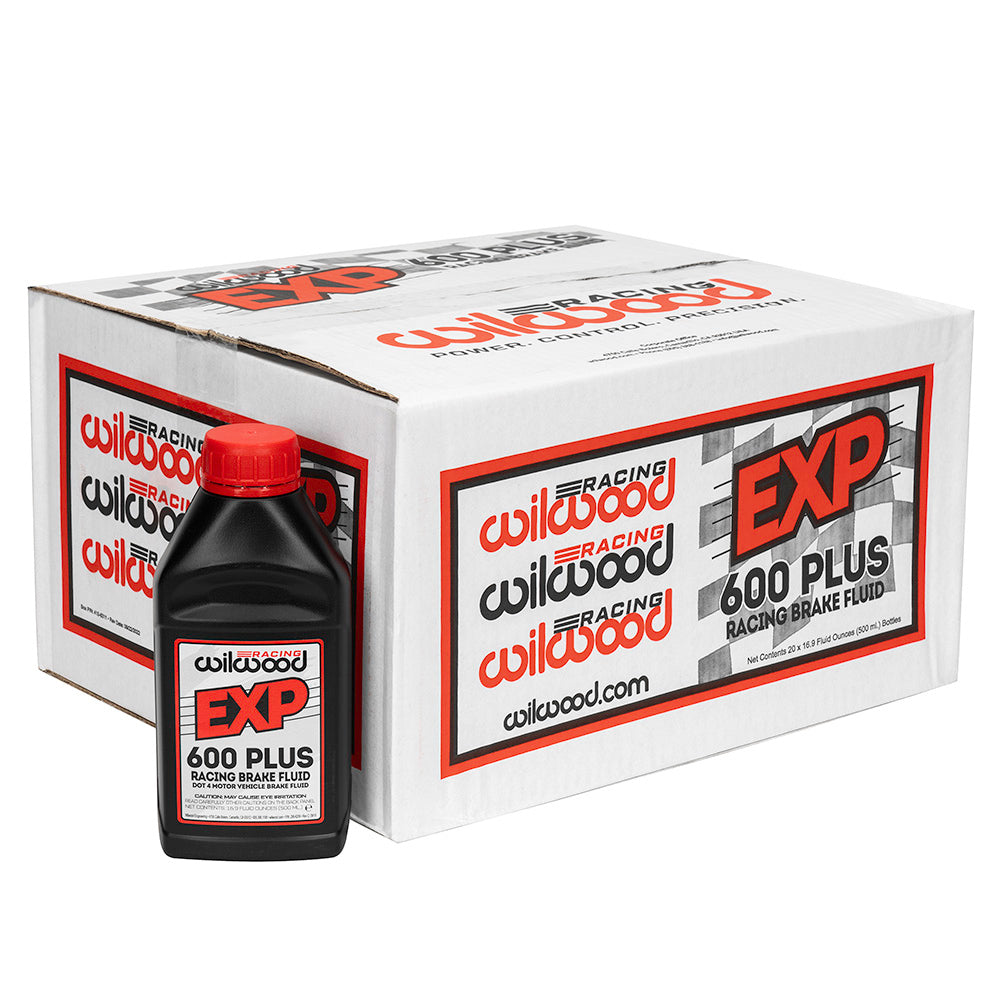

Wilwood EXP 600 Plus Brake Fluid, Twenty 500 mL Bottles, DOT 4

A twenty-bottle case of Wilwood EXP 600 Plus supplies ten liters of DOT 4 racing brake fluid in separate 500 mL containers. This format supports repeated brake-system flushing and bleeding without opening the entire fluid supply at once. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.

Technical Details

• Manufacturer part number: 290-6210
• Fluid: EXP600 PLUS Brake Fluid
• Pack contents: 20 x 500 mL; 10 liters total
• Fluid classification: DOT 4 per FMVSS No. 116
• Manufacturer-listed dry boiling point: 626°F
• Manufacturer-listed wet boiling point: 417°F

Fitment & Compatibility

Choose the case for systems specified to accept DOT 4 fluid; Wilwood identifies EXP 600 Plus as meeting and exceeding FMVSS No. 116 DOT 4. Follow the hydraulic component manufacturer's procedure and use fresh fluid rather than saving an open container for later service.

Manufacturer Documents

• Wilwood FL143 technical document
• Wilwood DS371 technical document
• Wilwood product information

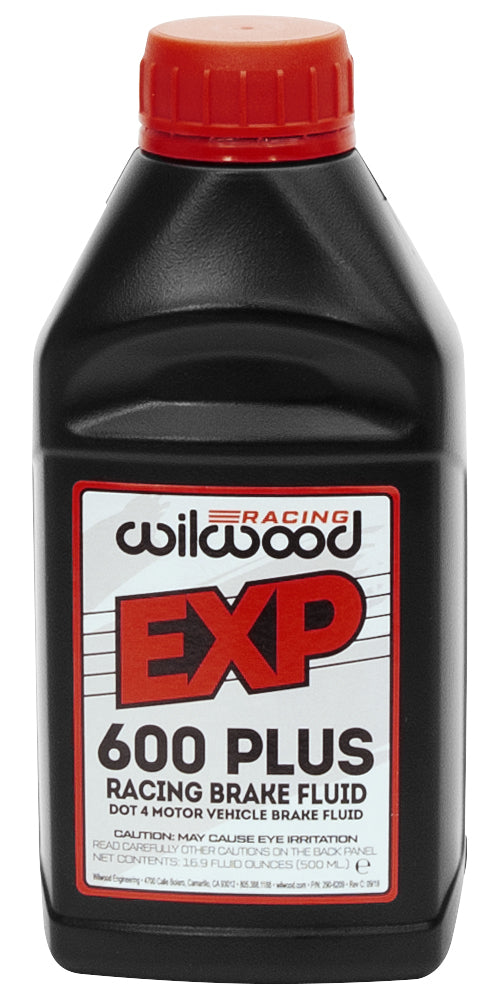

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.

PMB Performance has over 20 years of experience helping customers select brake-system parts. Share the existing assembly information so we can help you check the details before ordering.
