Wilwood EXP 600 Plus DOT 4 Racing Brake Fluid, 500 mL

EXP 600 Plus is Wilwood’s DOT 4 brake fluid for hydraulic systems exposed to repeated high brake temperatures. This listing supplies one 500 mL bottle; Wilwood’s product flyer specifies 626°F dry and 417°F wet boiling points. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Founded by Bill Wood in 1977, it serves motorsport, street-performance and specialized applications with calipers, rotors, master cylinders, valves, fittings and brake lines that must be selected as part of a matched braking system.

Technical Details

• Manufacturer part number: 290-6209
• Fluid: EXP600 PLUS Brake Fluid
• Fluid standard: FMVSS No. 116 DOT 4
• Manufacturer-listed dry boiling point: 626°F
• Manufacturer-listed wet boiling point: 417°F
• Package: One 500 mL bottle (16.9 US fl oz)

Fitment & Compatibility

Confirm that the system requires or permits DOT 4 fluid. Use fresh fluid from an unopened bottle and follow the applicable flush and bleed procedure for the complete brake system.

Manufacturer Documents

• Wilwood FL143 technical document
• Wilwood DS371 technical document
• Wilwood product information

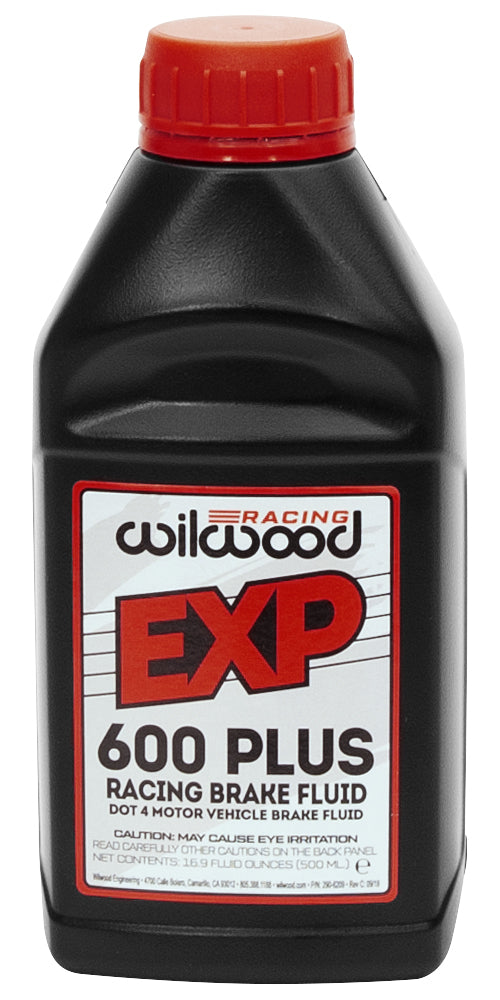

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.

PMB Performance’s team has over 20 years of experience with brake parts and fitment. If the assembly is uncertain, contact us with its part numbers, measurements and vehicle details.
