Product details

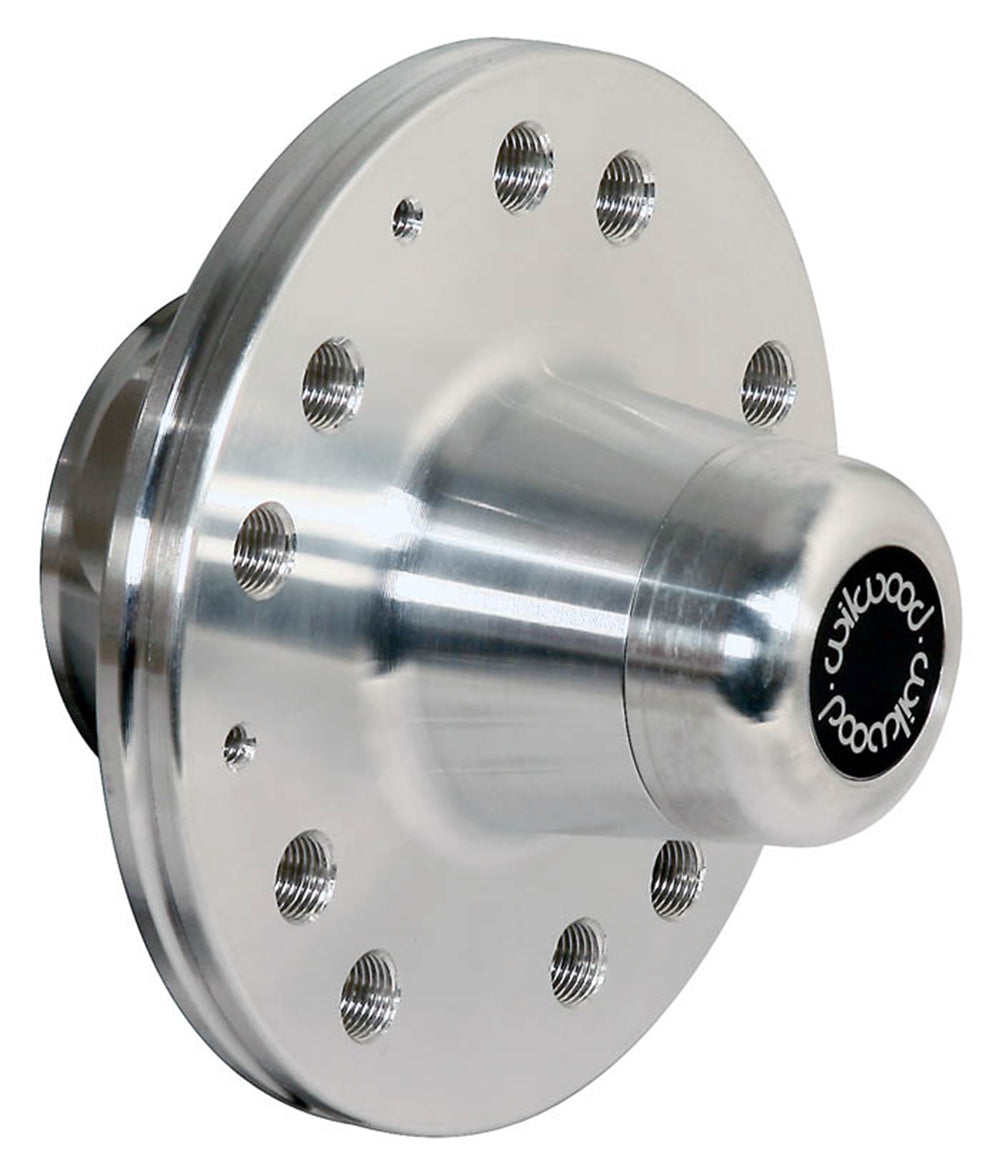

This Wilwood Mustang V8 front hub carries a separate rotor hat and uses an A6 inner/A2 outer bearing arrangement. It is a replacement component for the specifically matched spindle and brake-kit assemblies, with dual 5 x 4.50/4.75-inch wheel patterns. The manufacturer, Wilwood Engineering, was established in 1977 by Bill Wood and is based in Camarillo, California. It produces disc-brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Motorsport, street-performance and specialized applications each require a suitable combination of those components.
Technical Details
- Manufacturer part number: 270-9502
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Included components: Bearing races and screw-on aluminum cap
- Weight: 3.3 lb
- Inner bearing specification: 370-0879 / A6 set (fitment reference)
- Outer bearing specification: 370-0877 / A2 set (fitment reference)
- Hat retention: Three 1/4-20 holes; use the fasteners specified for the complete kit
Fitment & Compatibility
Wilwood kit instruction DS-1295 lists this hub for 1965–1967 Mustang V8 disc/drum spindles and 1968–1969 V8 drum spindles. Match the installed kit number and A6/A2 spindle journals before ordering. The hub page uses a different year label, so vehicle year alone is insufficient.
Manufacturer Documents
The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
With over 20 years of experience, PMB Performance can help work through the dimensions and component requirements. Provide the installed kit information when requesting a fitment check.
