Product details
A 1.630-inch N drawing dimension distinguishes this Wilwood Pinto/Mustang II hat-mount front hub. The rotor uses a separate hat retained by three screws, while the wheel mounts to either of the two five-lug patterns. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Founded by Bill Wood in 1977, it serves motorsport, street-performance and specialized applications with calipers, rotors, master cylinders, valves, fittings and brake lines that must be selected as part of a matched braking system.
Technical Details
- Manufacturer part number: 270-9486
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Cap application: Short screw-on cap 270-9380
- Hub drawing dimensions: H: 1.810 inches; M: 3.150 inches
- Weight: 3.1 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0882 / A12 set (fitment reference)
- Drawing dimension N: 1.630 inches
Fitment & Compatibility
Check the spindle and bearing fit as well as the complete hub drawing. Do not interchange with the 2.060-inch-N version without confirming the rotor-hat and caliper position required by the brake kit.
Manufacturer Documents

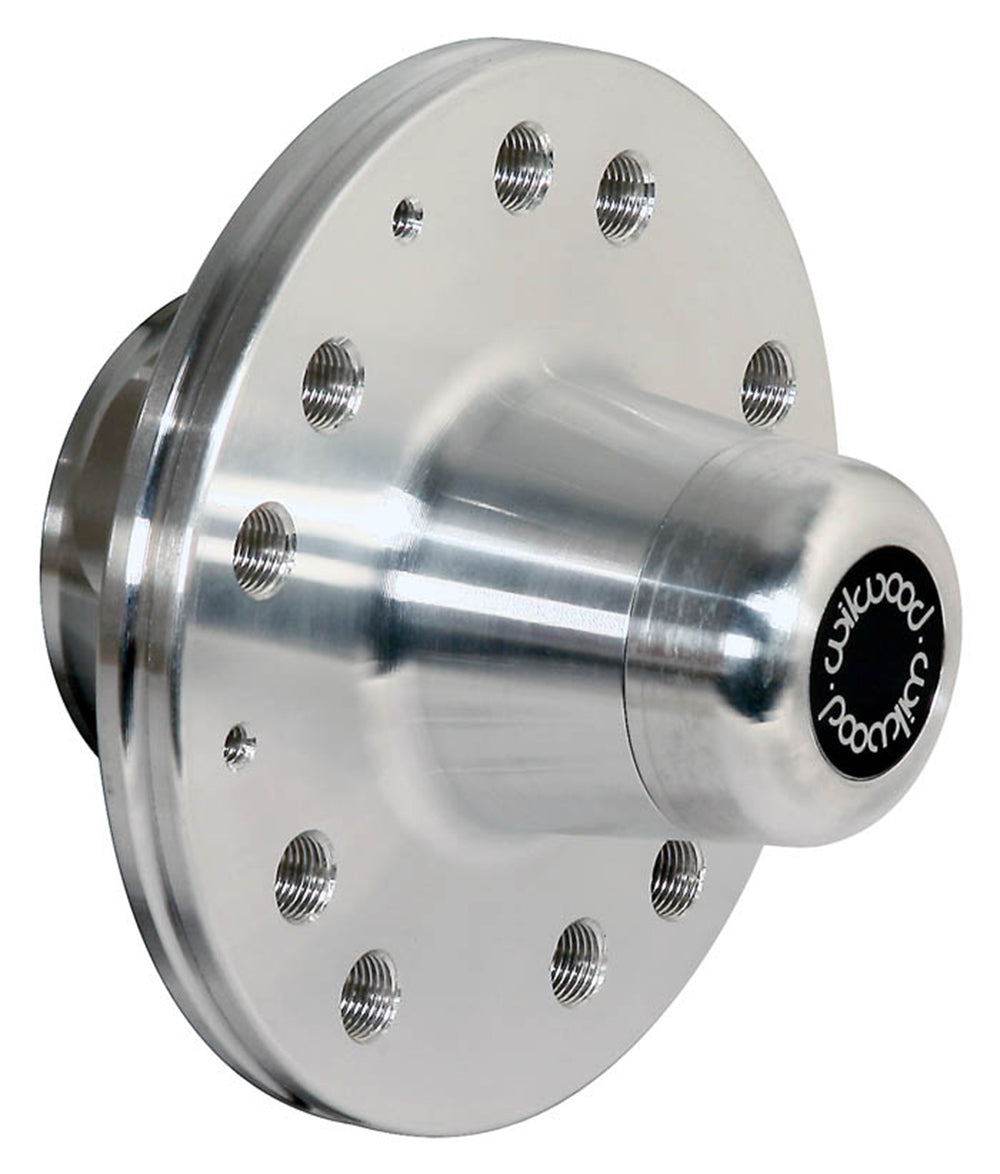

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance’s team has over 20 years of experience with brake parts and fitment. If the assembly is uncertain, contact us with its part numbers, measurements and vehicle details.
