Product details
This Wilwood Mustang front hub is the hat-mount configuration specified for A13 inner and A12 outer bearing sets. It gives the 1970-1973 spindle application a separate wheel hub and brake-hat interface, with both listed five-lug wheel patterns. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 270-9320
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Included components: Bearing races and screw-on aluminum cap
- Weight: 3.3 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0882 / A12 set (fitment reference)
Fitment & Compatibility
Check the bearing series against the installed spindle; a second Mustang hub uses different bearings despite similar outside dimensions. Select the brake hat and verify its rotor position. Three 1/4-20 retention holes use kit 230-7032; bearing rollers and brake parts must be matched separately.
Manufacturer Documents

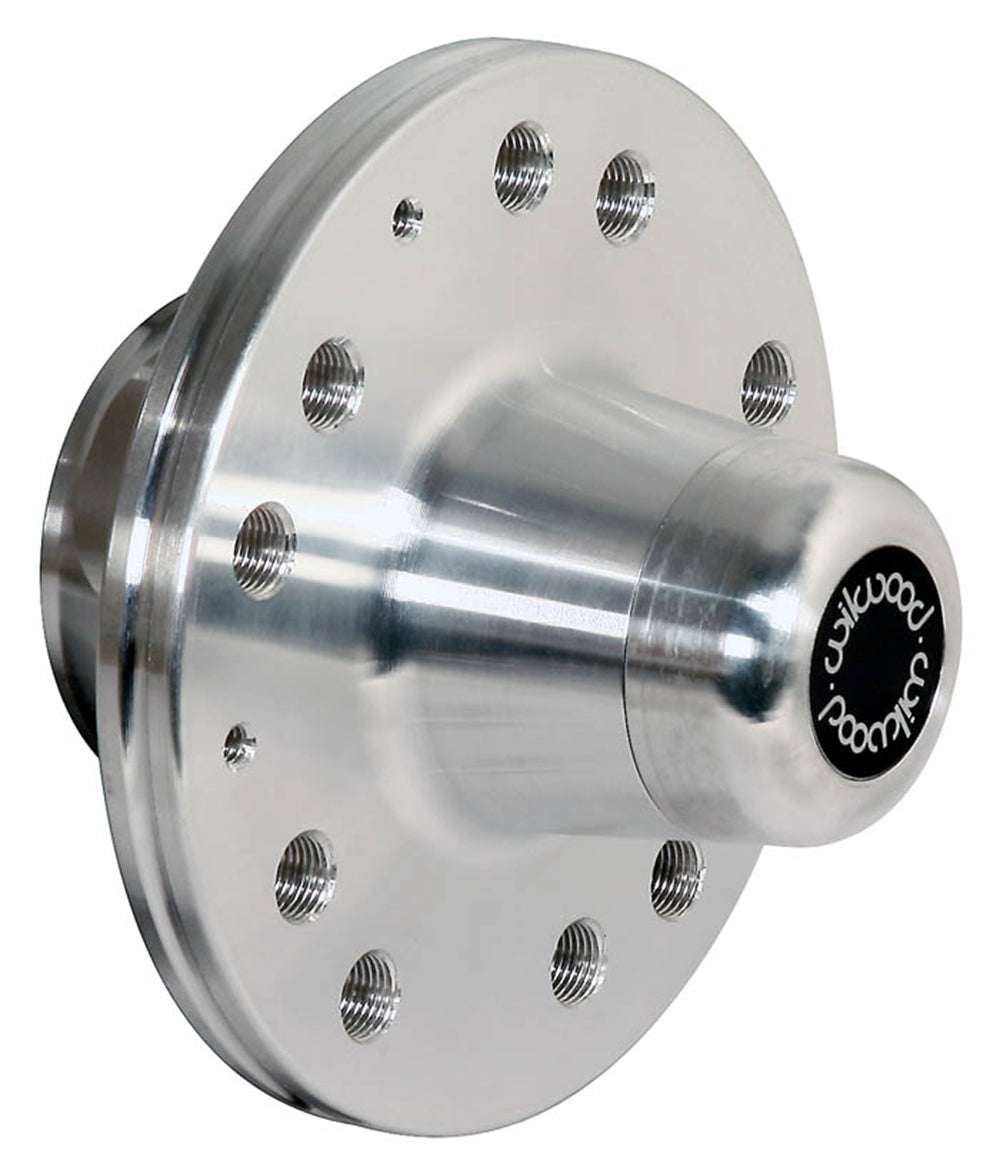

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
