Product details
This front Wilwood hub combines the 1973–1976 Mopar A-Body disc-spindle bearing arrangement with solid-rotor offset geometry. It is a conversion component for the matching Wilwood brake assembly, rather than a complete brake kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components include calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected for the complete brake system.
Technical Details
- Manufacturer part number: 270-8777
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Weight: 3.5 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0877 / A2 set (fitment reference)
- Drawing dimension N: 2.020 inches
- Documented solid-rotor arrangement: 0.35-inch solid rotor, mounted directly or with adapter 300-3307 as specified in DS-719
Fitment & Compatibility
Check the 1973–1976 A-Body disc spindle, A13/A2 bearing arrangement and 2.020-inch N dimension on the hub drawing. Confirm the direct-mount or adapter-based solid rotor and its alignment with the caliper using the complete kit instructions.
Manufacturer Documents

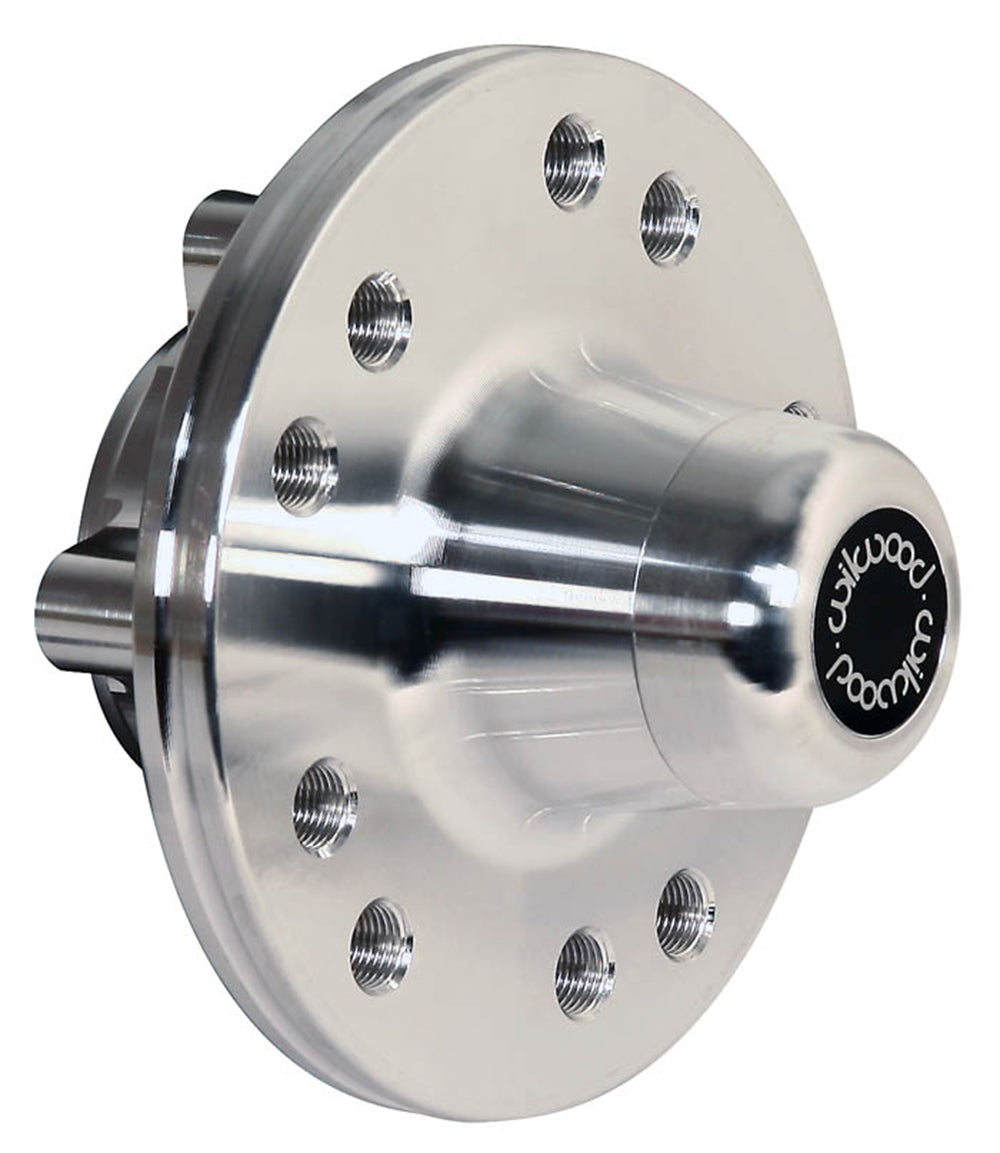

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance brings over 20 years of experience with brake components and fitment. Send us the installed kit number and relevant measurements if you need help confirming this part.
