Product details
Designed around the 1973-1976 Mopar A-Body disc-brake spindle application, this Wilwood hub supports an adapter-mounted vented rotor. It is the vented-offset option for the conversion and should be selected with the intended rotor and caliper bracket geometry. Wilwood Engineering designs and manufactures complete disc brake systems as well as calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Based in Camarillo, California, it was founded by Bill Wood in 1977. The range serves motorsport, street-performance, and specialized applications, requiring each part to be matched to the system in which it operates.
Technical Details
- Manufacturer part number: 270-8775
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Rotor adapter patterns: 6 x 6.25 in; 8 x 7.00 in
- Rotor adapter options: 300-3307 six-bolt / 300-3099 eight-bolt
- Weight: 3.5 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0877 / A2 set (fitment reference)
- Drawing dimension N: 2.310 inches
Fitment & Compatibility
Confirm that the vehicle retains the specified disc-brake spindle. Compare the 2.310-inch N dimension and bearing sizes, then match the vented rotor and adapter to the complete conversion kit.
Manufacturer Documents

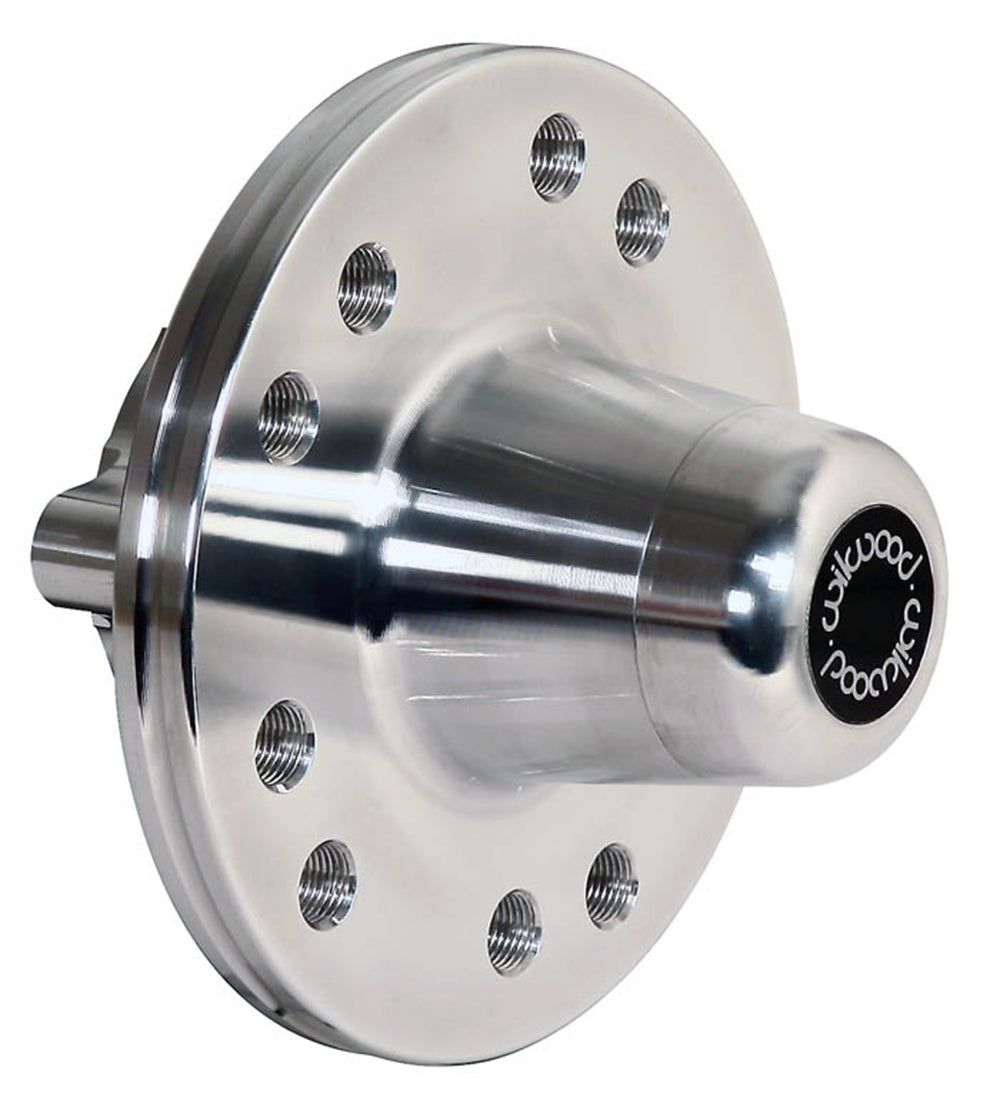

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
With over 20 years of experience, PMB Performance can help work through the dimensions and component requirements. Provide the installed kit information when requesting a fitment check.
