Product details
This Wilwood solid-rotor-offset front hub is machined for the 10-inch drum-brake spindle used in the specified 1965-1975 Mopar A-Body applications. The drum-brake reference identifies the spindle being converted, not a drum supplied with the hub. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California and designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings, and brake lines form part of its range for motorsport, street-performance, and specialized installations; suitability depends on the full brake-system arrangement.
Technical Details
- Manufacturer part number: 270-8769
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Weight: 3.200 lb
- Inner bearing specification: 370-0879 / A6 set (fitment reference)
- Outer bearing specification: 370-0877 / A2 set (fitment reference)
- Documented solid-rotor arrangement: 0.35-inch solid rotor, mounted directly or with adapter 300-3307 as specified in DS-719
Fitment & Compatibility
Confirm the specified 1965–1975 Mopar A-Body application retains its 10-inch drum spindle. Match the A6/A2 bearings and solid-rotor mounting arrangement to the kit instructions; the 9-inch drum and disc spindles require different hubs.
Manufacturer Documents

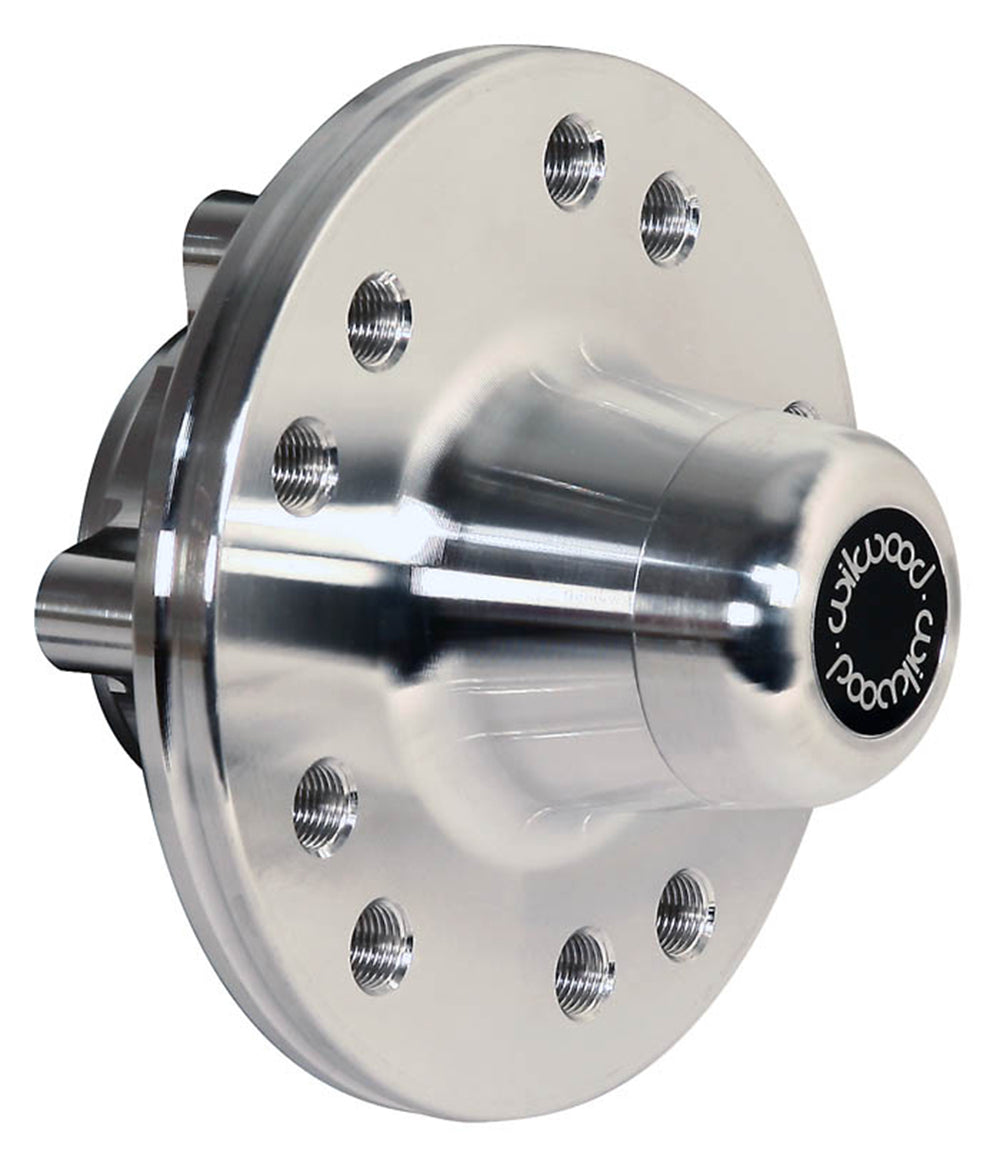

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance’s team has over 20 years of experience with brake parts and fitment. If the assembly is uncertain, contact us with its part numbers, measurements and vehicle details.
