Product details
A separate rotor hat attaches to this Wilwood front hub for the specified Ford Granada spindle. The hub is forged aluminum with two five-lug wheel patterns and a three-hole hat-retention arrangement. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. The company designs and manufactures complete disc-brake systems and parts, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Selection depends on the complete brake-system configuration.
Technical Details
- Manufacturer part number: 270-7466
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Supplied with hub: Bearing races and screw-on aluminum cap
- Weight: 3.1 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0882 / A12 set (fitment reference)
- Drawing dimension N: 1.720 inches
Fitment & Compatibility
Verify the Granada spindle and bearing sizes against the hub drawing, including dimension N at 1.720 inches. Match the rotor hat and use the specified 1/4-20 retention fasteners.
Manufacturer Documents

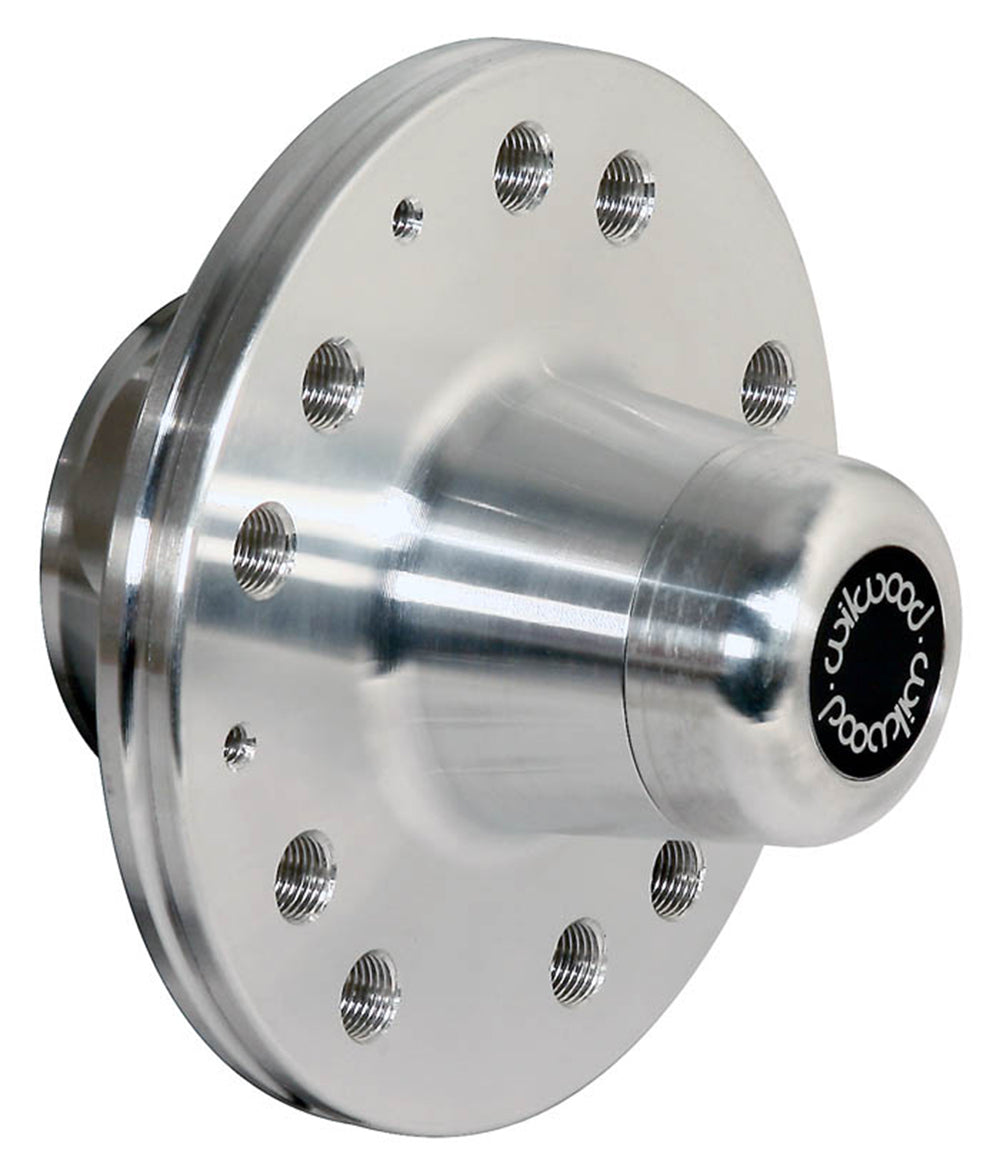

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
For help matching the component to your assembly, contact PMB Performance with the brake-kit details and dimensions. Our team has over 20 years of experience working through parts and fitment questions.
