Product details
The solid-rotor version of this Wilwood front hub establishes the mounting geometry for an adapter-based GM G-Body brake assembly. It retains the dual five-lug wheel pattern while using a different brake offset from the vented-rotor hub. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems, from calipers and brake rotors to master cylinders, valves, fittings, and brake lines. Its motorsport, street-performance, and specialized components are chosen to suit the complete braking installation.
Technical Details
- Manufacturer part number: 270-7310
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Weight: 3.200 lb
- Inner bearing specification: 370-0879 / A6 set (fitment reference)
- Outer bearing specification: 370-0933 / A34 set (fitment reference)
- Documented solid-rotor arrangement: 0.35-inch solid rotor, mounted directly or with adapter 300-3307 as specified in DS-719
Fitment & Compatibility
Use with the specified 1980–1987 GM G-Body spindle and A6/A34 bearings. Compare the solid-rotor hub dimensions and complete kit drawing before selecting the rotor attachment components. The vented-offset hub has different geometry.
Manufacturer Documents

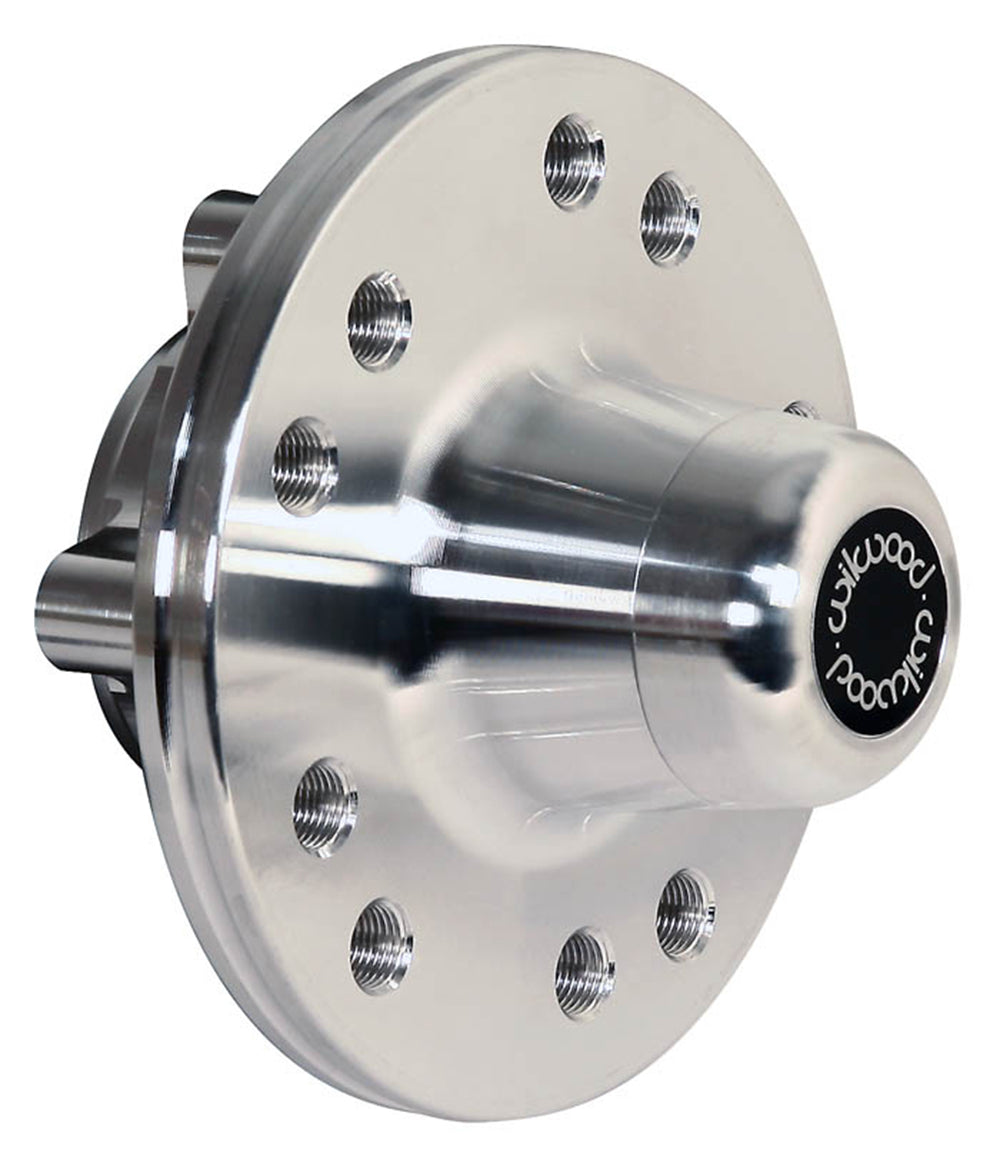

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
Before ordering for a modified assembly, send PMB Performance the kit number and relevant component details. Our over 20 years of experience can help you confirm the correct combination.
