Product details
Wilwood supplies this front hub for solid-rotor brake configurations built around the specified 1987–1993 Mustang spindle. The hub carries a 5 x 4.50/4.75-inch wheel flange and uses the Mustang-specific bearing and seal dimensions. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components include calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected for the complete brake system.
Technical Details
- Manufacturer part number: 270-7285
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Weight: 3.200 lb
- Inner bearing specification: 370-2609 / A5 set (fitment reference)
- Outer bearing specification: 370-0882 / A12 set (fitment reference)
- Documented solid-rotor arrangement: 0.35-inch solid rotor, mounted directly or with adapter 300-3307 as specified in DS-719
Fitment & Compatibility
Confirm the 1987–1993 Mustang spindle, A5 inner/A12 outer bearings and solid-rotor configuration. Use the mounting arrangement documented for that complete brake kit; matching a five-lug wheel pattern does not establish hub interchangeability.
Manufacturer Documents

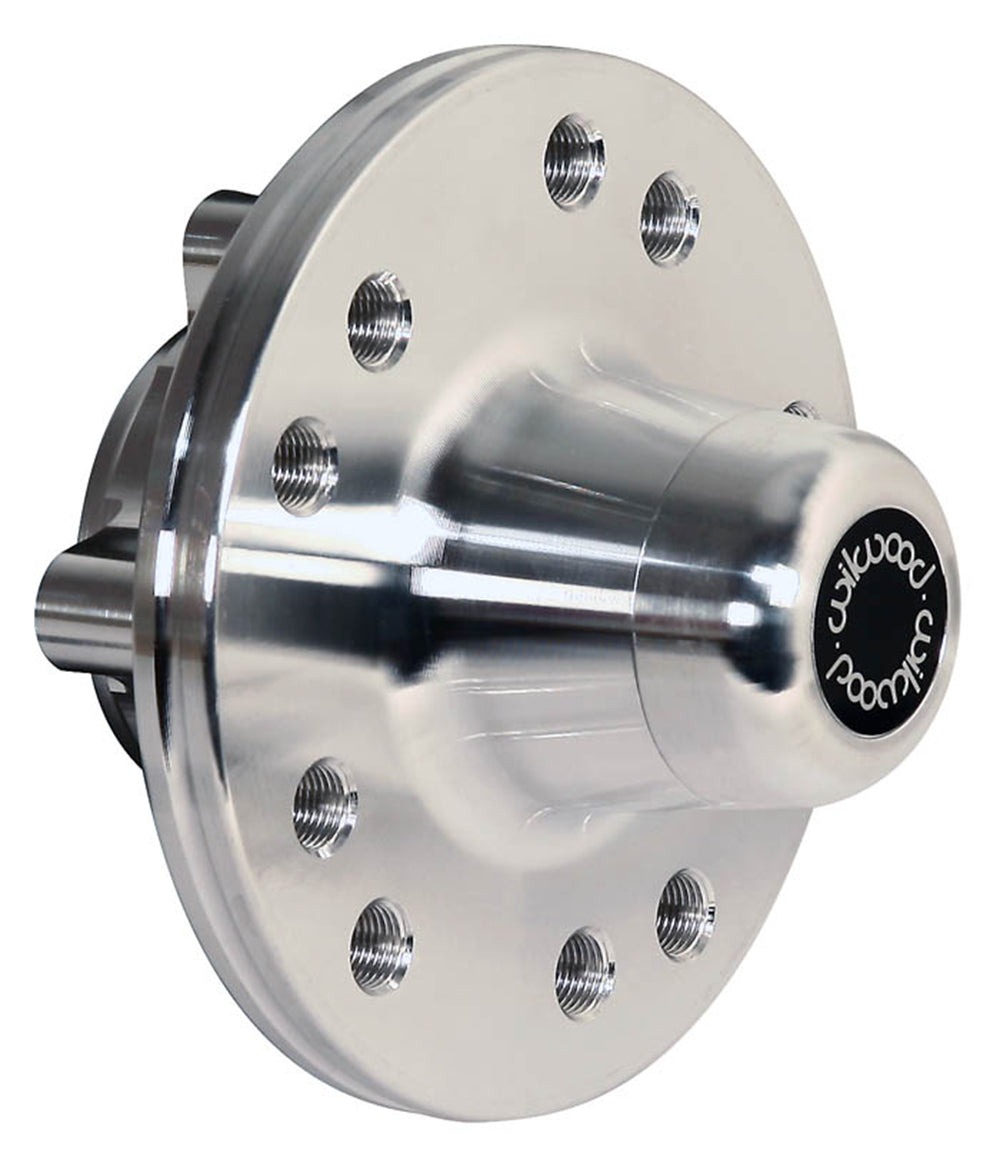

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance brings over 20 years of experience with brake components and fitment. Send us the installed kit number and relevant measurements if you need help confirming this part.
