Product details
The 1955-1957 Chevrolet spindle application of this Wilwood front hub uses an intermediate adapter to mount a vented rotor. Its bare aluminum construction and two five-lug wheel bolt circles are specified for a custom brake assembly rather than an integral replacement rotor. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 270-7283
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Rotor adapter patterns: 6 x 6.25 in; 8 x 7.00 in
- Weight: 3.3 lb
- Inner bearing specification: 370-0879 / A6 set (fitment reference)
- Outer bearing specification: 370-0877 / A2 set (fitment reference)
Fitment & Compatibility
Match the original or replacement spindle dimensions and bearings on the car. Choose rotor adapter 300-3307 or 300-3099 to suit the rotor attachment pattern, and check brake offset before fitting the caliper. The hub alone does not supply the complete braking system.
Manufacturer Documents

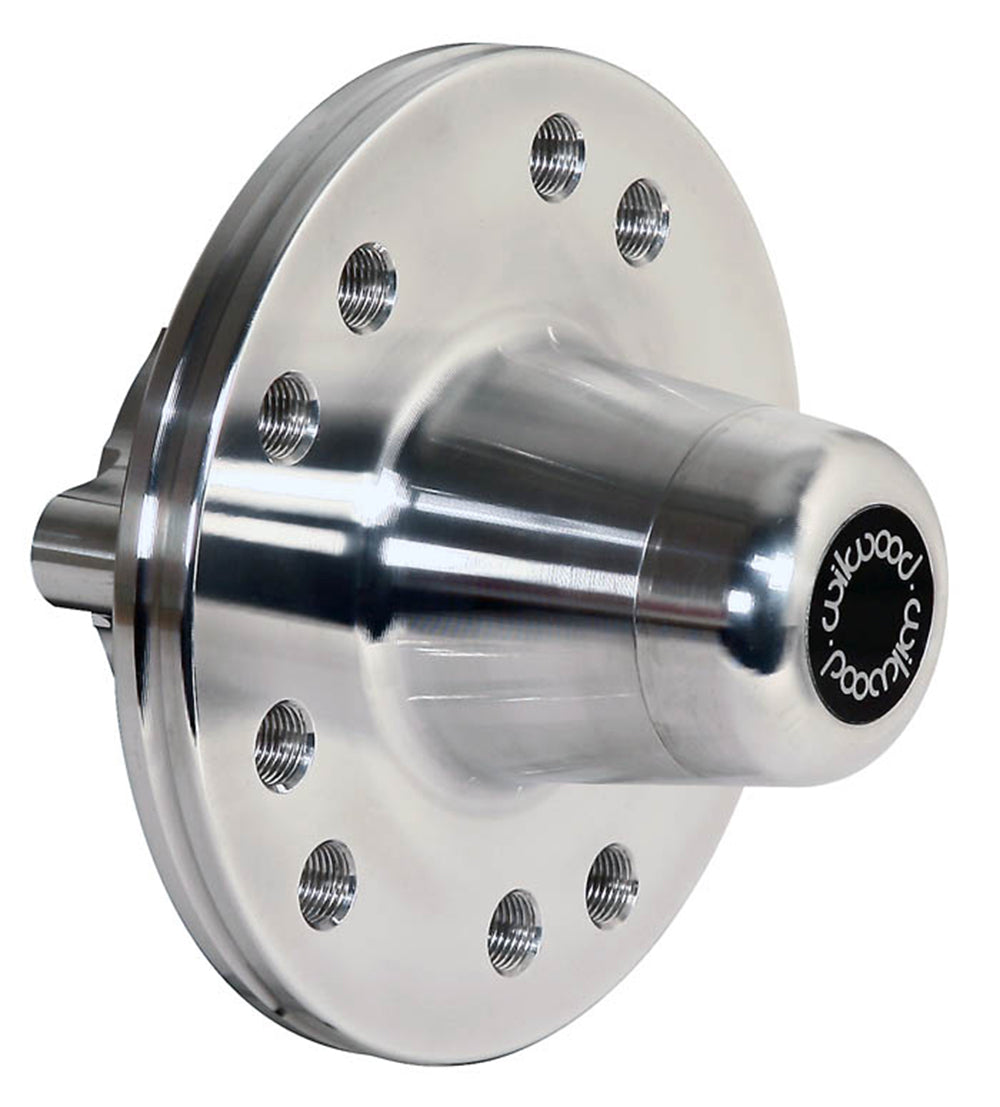

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
With over 20 years of experience, PMB Performance can help work through the dimensions and component requirements. Provide the installed kit information when requesting a fitment check.
