Product details
This Wilwood conversion hub adapts the matching early Ford front spindle to a vented-rotor brake assembly. The aluminum hub’s 4.120-inch M dimension and dedicated bearing arrangement distinguish it from later Ford spindle hubs. Wilwood Engineering has designed and manufactured disc-brake systems since Bill Wood founded the company in 1977. Its Camarillo, California operation supplies calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Matching individual components to the full brake system remains essential.
Technical Details
- Manufacturer part number: 270-7279
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Rotor adapter patterns: 6 x 6.25 in; 8 x 7.00 in
- Rotor adapter options: 300-3307 six-bolt; 300-3099 eight-bolt
- Weight: 3.5 lb
- Inner bearing specification: 370-1561 (fitment reference)
- Outer bearing specification: 370-0877 / A2 set (fitment reference)
- Drawing dimension M: 4.120 inches
Fitment & Compatibility
Compare the early Ford spindle against Wilwood’s dimensional sheet. Select the corresponding rotor adapter and confirm wheel-pattern, bearing and seal compatibility as a complete assembly.
Manufacturer Documents

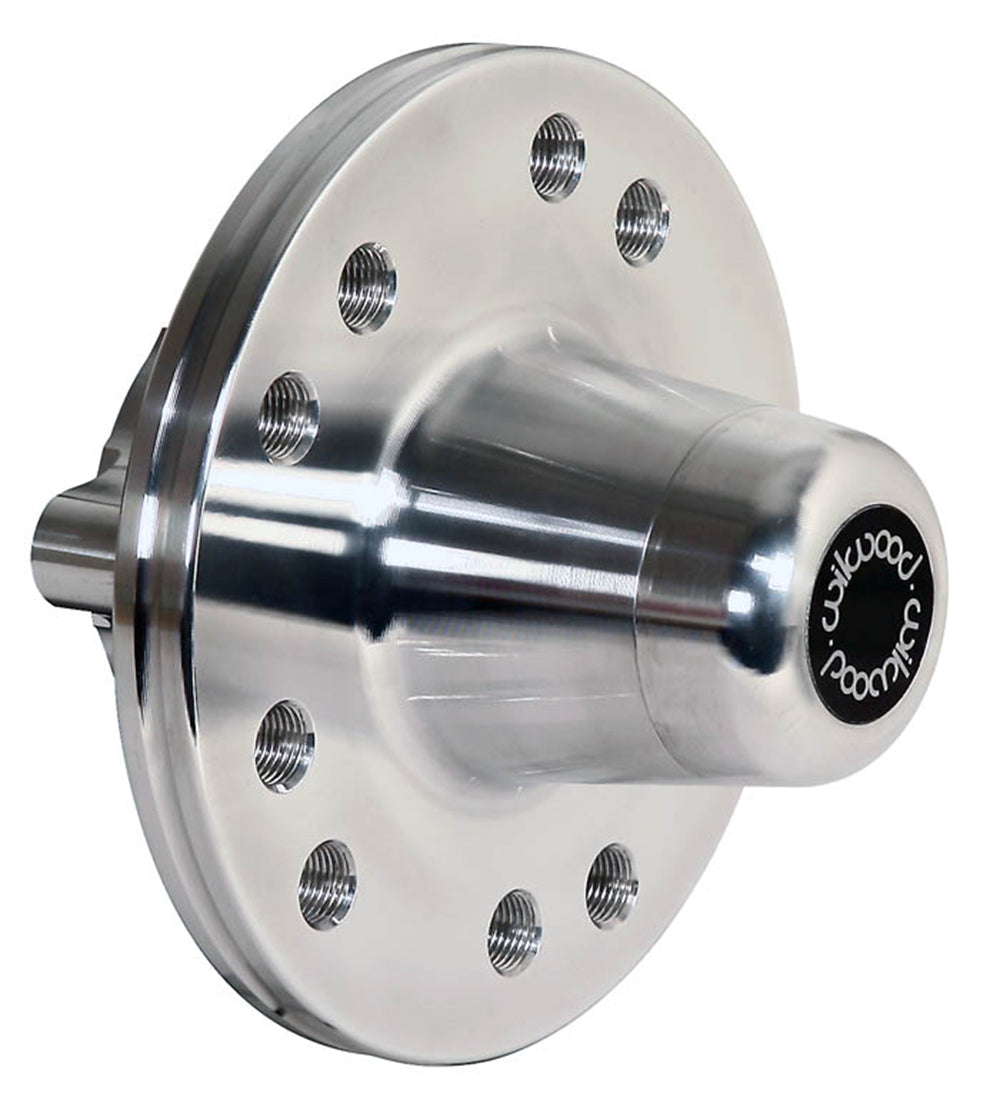

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance has over 20 years of experience helping customers select brake-system parts. Share the existing assembly information so we can help you check the details before ordering.
