Product details
Wilwood’s solid-rotor front hub supports direct or adapter-based rotor arrangements on the matching Pinto/Mustang II spindle. The 5 x 4.50/4.75-inch wheel flange does not establish rotor fit by itself; the hub offset is specific to this configuration. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Founded by Bill Wood in 1977, it serves motorsport, street-performance and specialized applications with calipers, rotors, master cylinders, valves, fittings and brake lines that must be selected as part of a matched braking system.
Technical Details
- Manufacturer part number: 270-7277
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Weight: 3.200 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0882 / A12 set (fitment reference)
- Documented solid-rotor arrangement: 0.35-inch solid rotor, mounted directly or with adapter 300-3307 as specified in DS-719
Fitment & Compatibility
For the matching Pinto/Mustang II front spindle and solid-rotor brake package. Compare the hub drawing and bearing journals, then follow the complete kit instructions for direct rotor attachment or the specified mounting adapter.
Manufacturer Documents

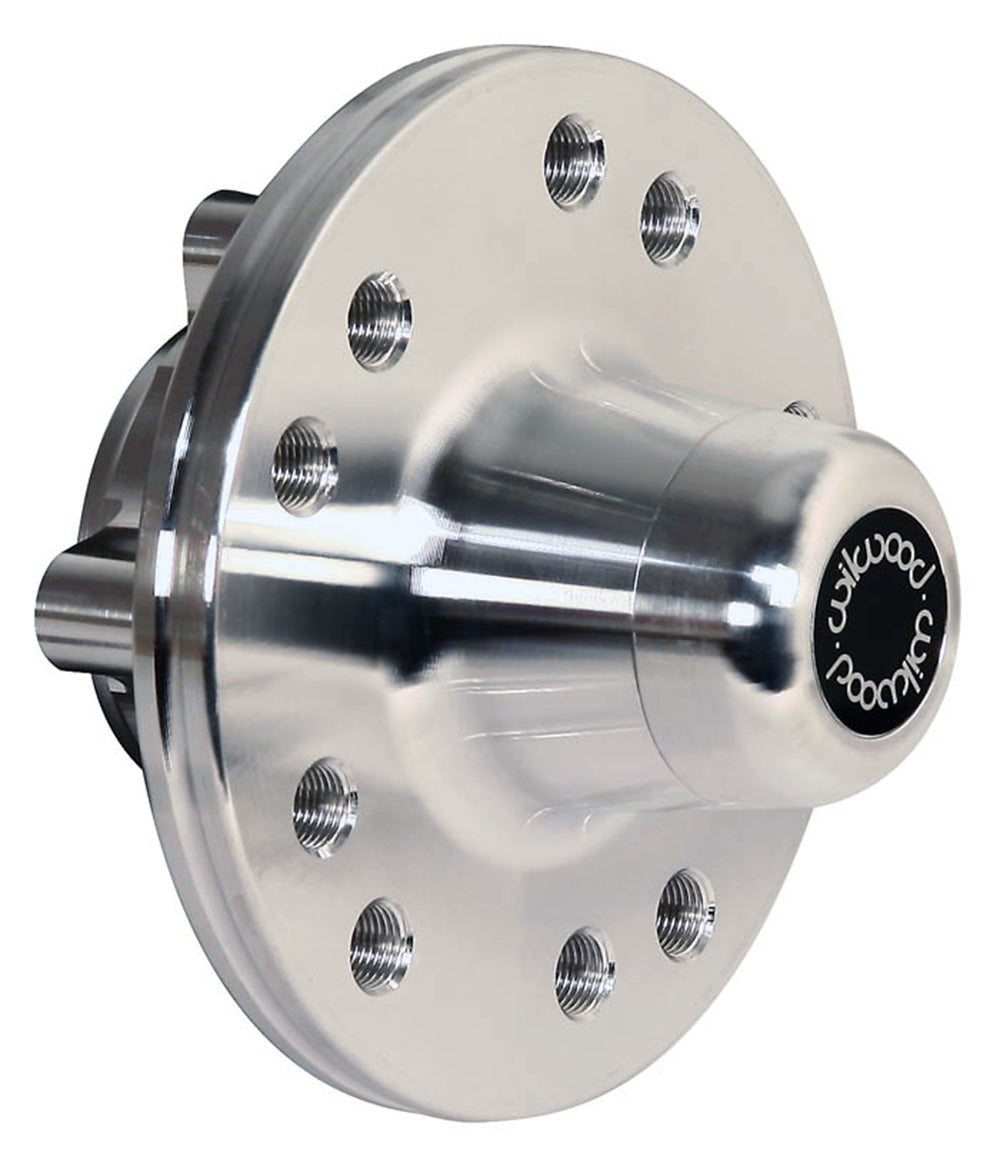

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance’s team has over 20 years of experience with brake parts and fitment. If the assembly is uncertain, contact us with its part numbers, measurements and vehicle details.
