Product details
Pinto/Mustang II spindle-based brake conversions use this Wilwood front hub with a vented-rotor mounting adapter. The bare aluminum hub separates the wheel mounting surface from the rotor so the adapter can establish the required brake offset. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 270-7276
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Rotor adapter patterns: 6 x 6.25 in; 8 x 7.00 in
- Adapter selection: 300-3307: 6 x 6.25 inches; 300-3099: 8 x 7.00 inches
- Weight: 3.200 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0882 / A12 set (fitment reference)
Fitment & Compatibility
Choose an adapter with the correct six- or eight-bolt rotor pattern and confirm the full rotor/caliper layout. Suitable spindle and bearing dimensions are required in addition to the 5 x 4.50-inch or 5 x 4.75-inch wheel pattern. Do not substitute the solid-offset version without checking geometry.
Manufacturer Documents

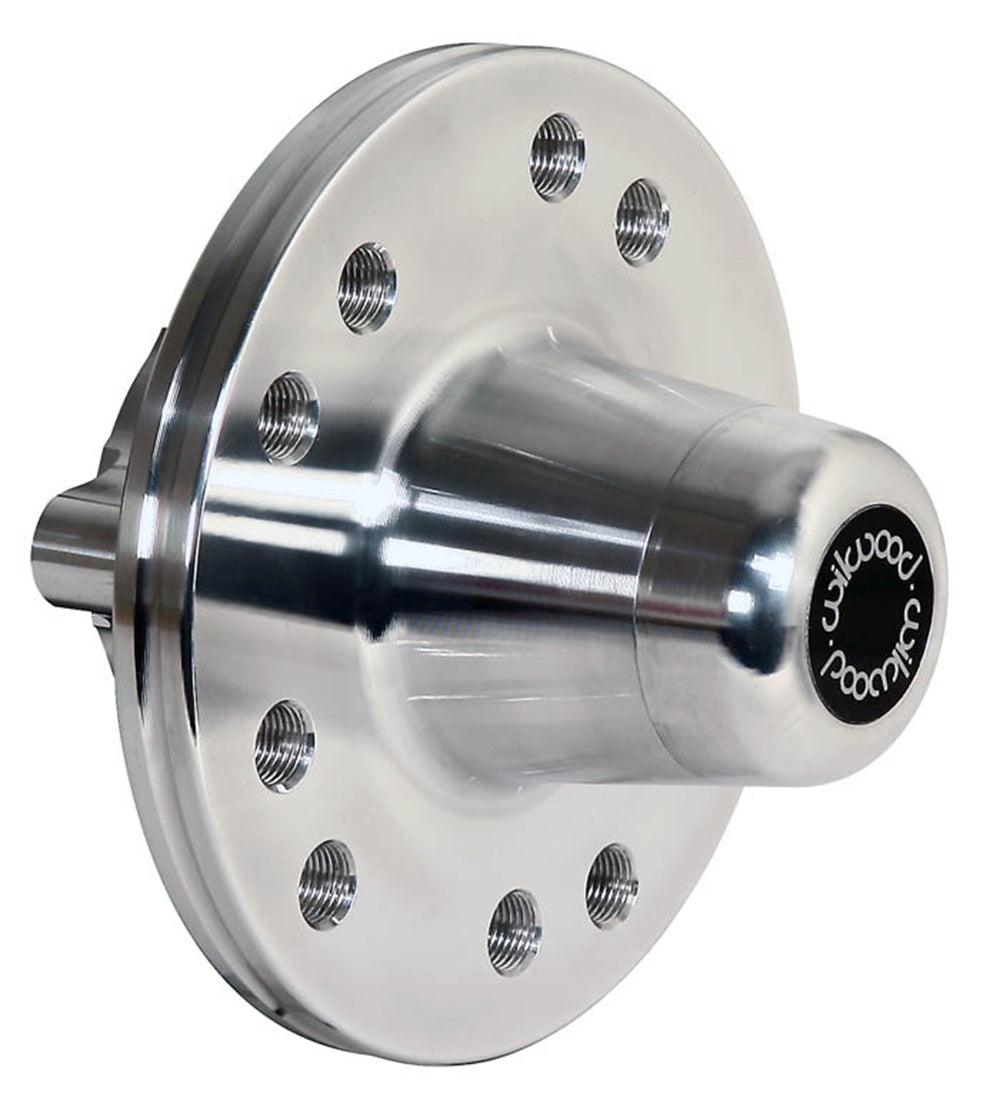

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
Contact PMB Performance with the existing part identification and brake-system configuration for selection assistance. We draw on over 20 years of experience with parts and fitment.
