Product details
This Wilwood front hub is machined for the solid-rotor offset arrangement used in selected Chevrolet brake assemblies. Its direct/adapter mounting configuration differs from the vented-rotor hub despite sharing the same two wheel bolt circles. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. The company designs and manufactures complete disc-brake systems and parts, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Selection depends on the complete brake-system configuration.
Technical Details
- Manufacturer part number: 270-7275
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Weight: 3.3 lb
- Inner bearing specification: 370-0879 / A6 set (fitment reference)
- Outer bearing specification: 370-0877 / A2 set (fitment reference)
- Documented solid-rotor arrangement: 0.35-inch solid rotor, mounted directly or with adapter 300-3307 as specified in DS-719
Fitment & Compatibility
Match the Chevrolet spindle, A6/A2 bearing arrangement and installed brake kit to the hub drawing. DS-719 identifies the solid-rotor layout separately from the vented version; confirm the rotor mounting method and caliper alignment before ordering.
Manufacturer Documents

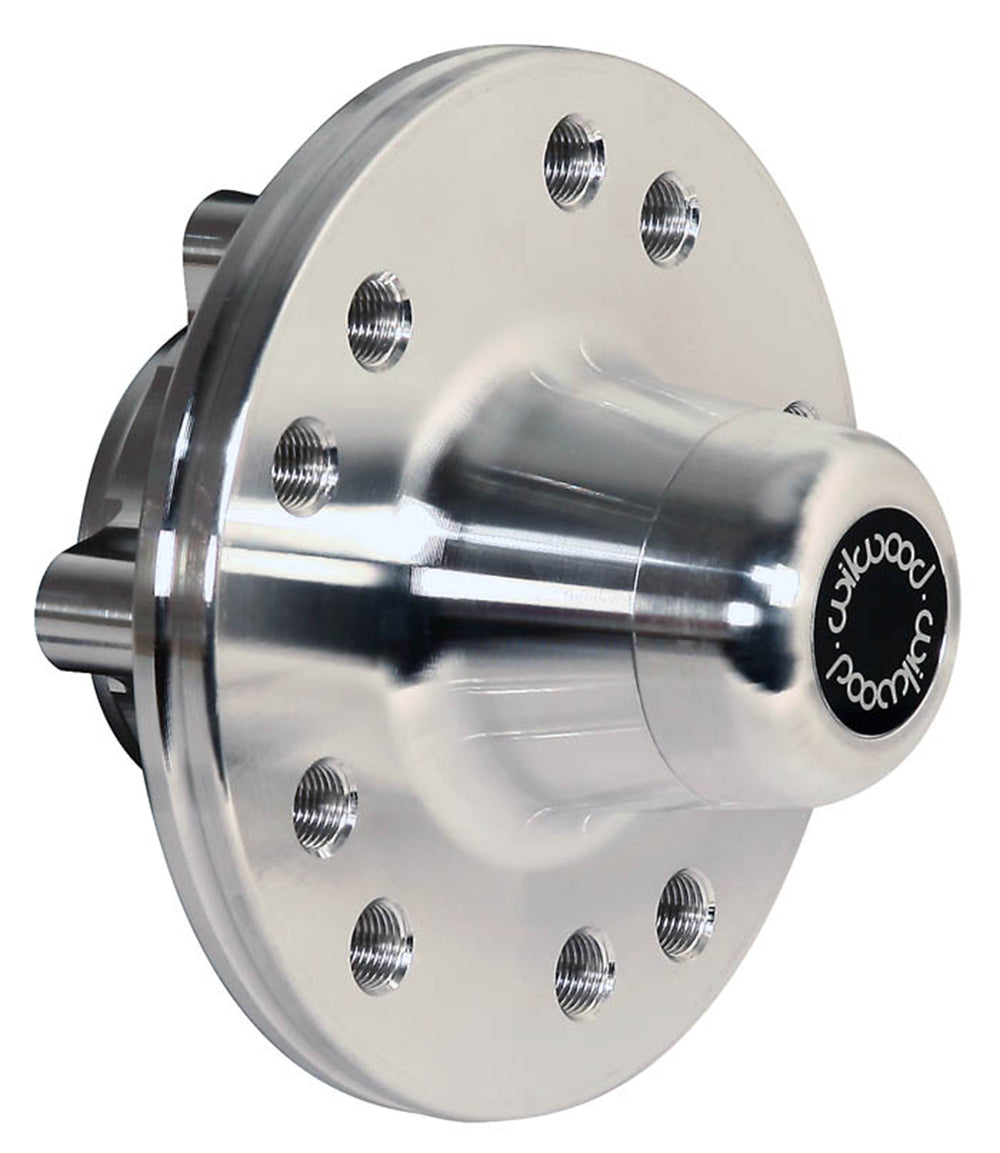

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
For help matching the component to your assembly, contact PMB Performance with the brake-kit details and dimensions. Our team has over 20 years of experience working through parts and fitment questions.
