Product details
Wilwood’s forged aluminum hat-mount hub locates a separate rotor hat on the matching Pinto or Mustang II front spindle arrangement. This version has a 2.060-inch drawing dimension N and dual 5 x 4.50/4.75-inch wheel patterns. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components include calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected for the complete brake system.
Technical Details
- Manufacturer part number: 270-6989
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 4.75 in; 5 x 4.50 in
- Wheel stud thread: 1/2-20
- Included components: Bearing races and screw-on aluminum cap
- Weight: 3.200 lb
- Inner bearing specification: 370-0884 / A13 set (fitment reference)
- Outer bearing specification: 370-0882 / A12 set (fitment reference)
- Drawing dimension N: 2.060 inches; compare the complete hub drawing
Fitment & Compatibility
Match the spindle bearings and full hub drawing to the brake kit. Three 1/4-20 holes retain the hat using bolt kit 230-7032; the different 1.630-inch-N hub is not interchangeable solely because the wheel pattern matches.
Manufacturer Documents

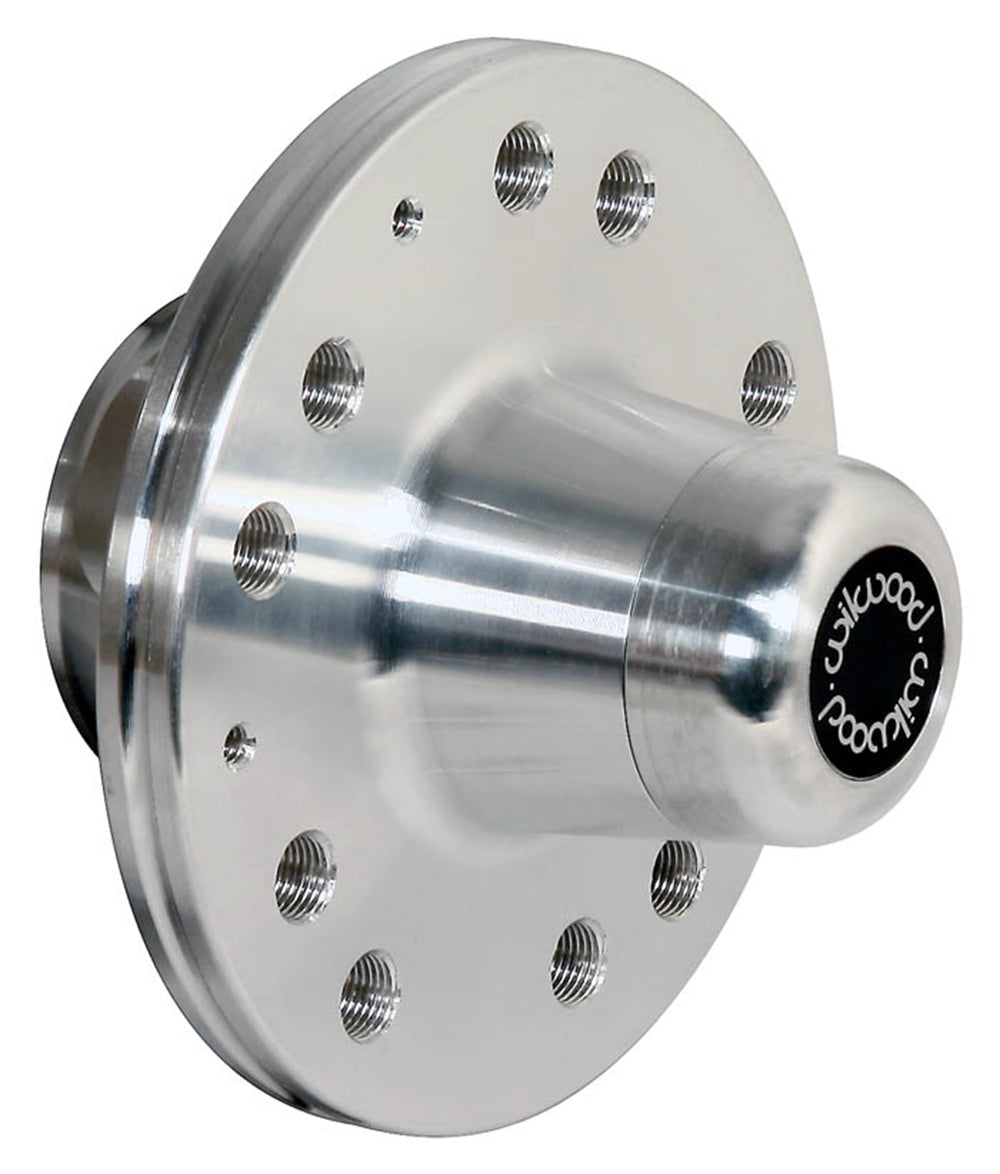

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance brings over 20 years of experience with brake components and fitment. Send us the installed kit number and relevant measurements if you need help confirming this part.
