Product details
This Starlite 55 front hub combines drilled coarse-thread studs with a bare finish and omits the bearing races. It is the front Snap-Cap configuration for a matching wide-five assembly, allowing the required bearing cups to be selected separately. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 270-6735UD
- Material: Aluminum
- Finish: Bare
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Position: Front
- Studs: Drilled 5/8-11
- Bearing races: Not included
- Cap style: Snap-Cap
- Weight: 6.9 lb
- Inner bearing specification: 370-0431 (fitment reference)
- Rotor mounting bolt circle: 8 x 7.00 inches
Fitment & Compatibility
Fit the correct inner and outer races and bearings for the front spindle. Check the 5 x 10.25-inch wheel circle, 5/8-11 studs and 8 x 7.00-inch rotor pattern as separate interfaces.
Manufacturer Documents

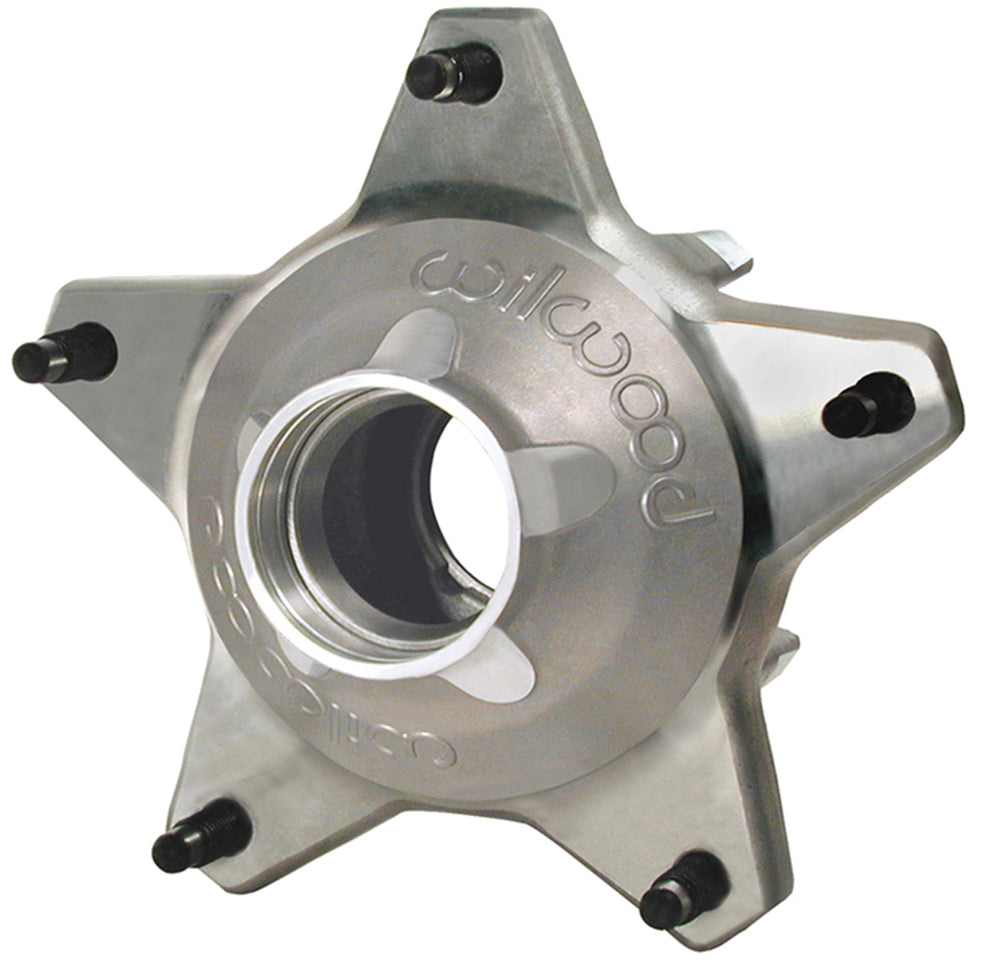

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance’s team has over 20 years of experience with brake parts and fitment. If the assembly is uncertain, contact us with its part numbers, measurements and vehicle details.
