Product details

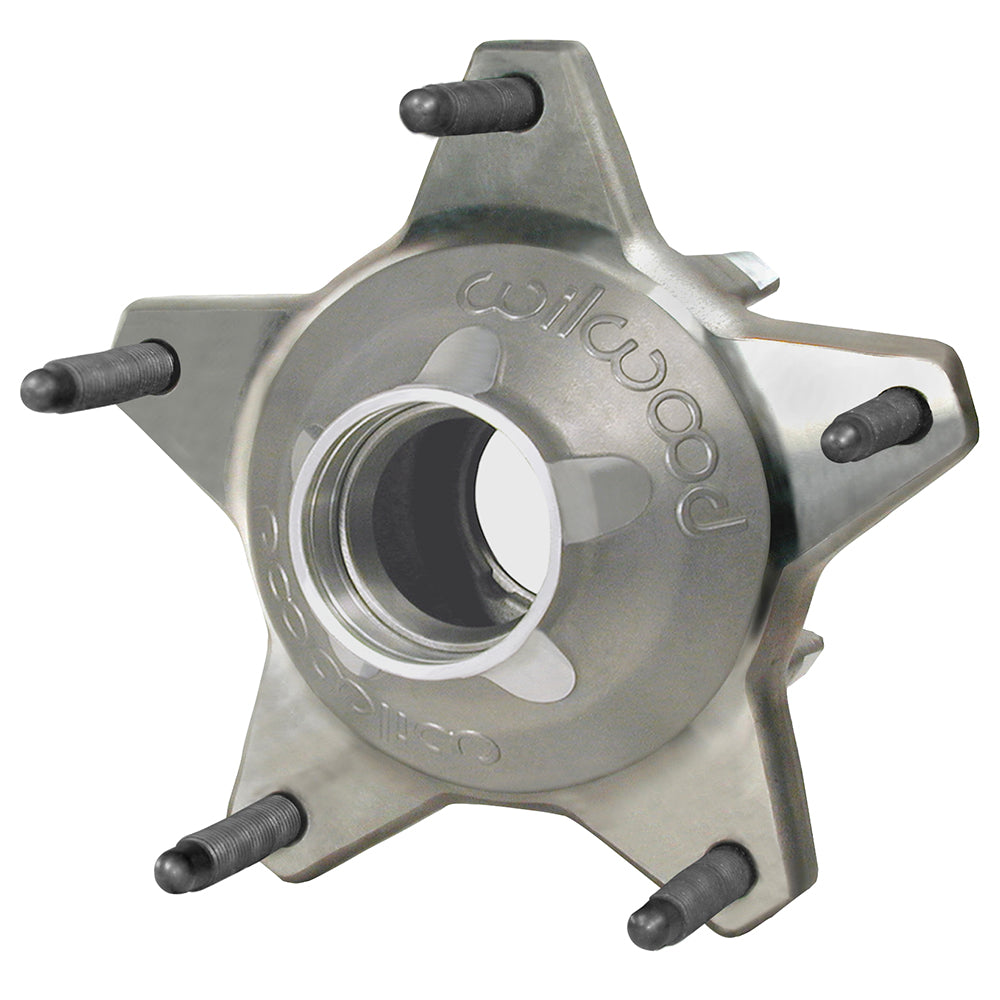

The long-stud, bare-finish Starlite 55 hub is intended for a wide-five front wheel assembly. It retains the Snap-Cap front closure while extending the coarse-thread wheel studs 1.38 inches beyond the standard configuration. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings, and brake lines serve motorsport, street-performance, and specialized applications, with each component selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 270-6735LS
- Material: Aluminum
- Finish: Bare
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Mounting position: Front
- Stud specification: 5/8-11; 1.38-inch extension over standard
- Hub closure type: Snap-Cap
- Rotor mount: 8 x 7.00 inches
- Weight: 8.900 lb
- Inner bearing specification: 370-0431 (fitment reference)
- Outer bearing specification: 370-0432 (fitment reference)
Fitment & Compatibility
Use the actual wheel center and lug nuts to confirm the required stud reach. Also match the front hub bearing seats, spindle, and 8 x 7.00-inch rotor attachment circle; the extended studs do not change those compatibility checks.
Manufacturer Documents
Contact PMB Performance with the existing part identification and brake-system configuration for selection assistance. We draw on over 20 years of experience with parts and fitment.
