Product details
The drilled-stud version of Wilwood’s bare Starlite 55 front hub serves Wide 5 racing wheel assemblies. A Snap-Cap closes the bearing cavity while the hub provides a separate direct-mount flange for the brake rotor. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. The company designs and manufactures complete disc-brake systems and parts, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Selection depends on the complete brake-system configuration.
Technical Details
- Manufacturer part number: 270-6735D
- Material: Aluminum
- Finish: Bare
- Position: Front
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Use: Front wide-five racing hub
- Stud type: Drilled coarse-thread
- Cap arrangement: Snap-Cap
- Rotor bolt circle: 8 x 7.00 inches
- Weight: 6.9 lb
- Inner bearing specification: 370-0431 (fitment reference)
- Outer bearing specification: 370-0432 (fitment reference)
Fitment & Compatibility
Match the 5/8-11 stud thread and 5 x 10.25-inch wheel pattern, then check bearing and rotor dimensions separately. Confirm that the installed hub calls for drilled studs and the Snap-Cap front closure rather than a rear drive flange.
Manufacturer Documents

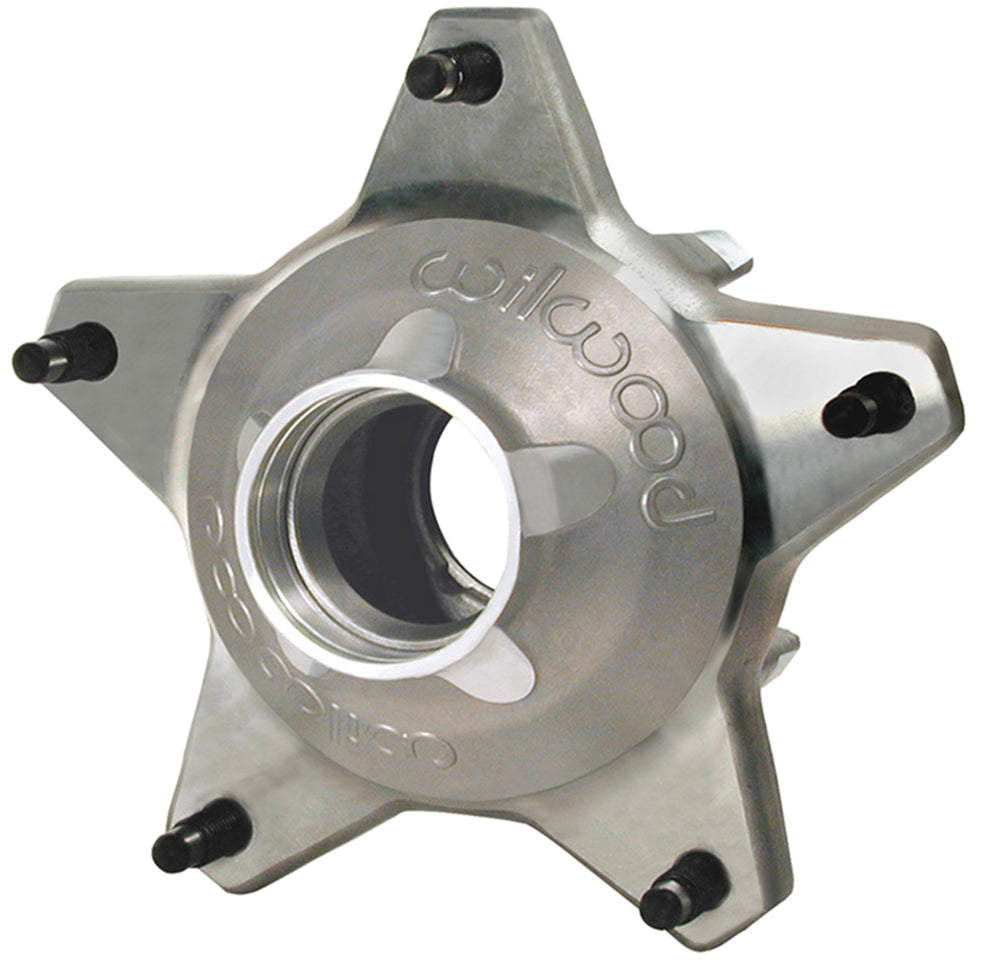

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
