Product details
This bare-aluminum Starlite 55 front hub carries the standard 5/8-11 coarse-thread studs and Snap-Cap closure. It is a wide-five racing hub rather than a vehicle-specific original-equipment replacement, with wheel and rotor interfaces that must both match the build. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.
Technical Details
- Manufacturer part number: 270-6735C
- Material: Aluminum
- Finish: Bare
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Hub position: Front
- Wheel studs: Standard coarse-thread configuration
- Closure: Snap-Cap
- Rotor mounting: 8 x 7.00 inches, standard offset
- Weight: 7.3 lb
- Inner bearing specification: 370-0431 (fitment reference)
- Outer bearing specification: 370-0432 (fitment reference)
Fitment & Compatibility
Confirm a 5 x 10.25-inch wheel bolt circle and the appropriate front spindle bearings. The standard-offset rotor mounting face uses an eight-hole, 7.00-inch circle; wheel bolt spacing by itself does not establish brake compatibility.
Manufacturer Documents

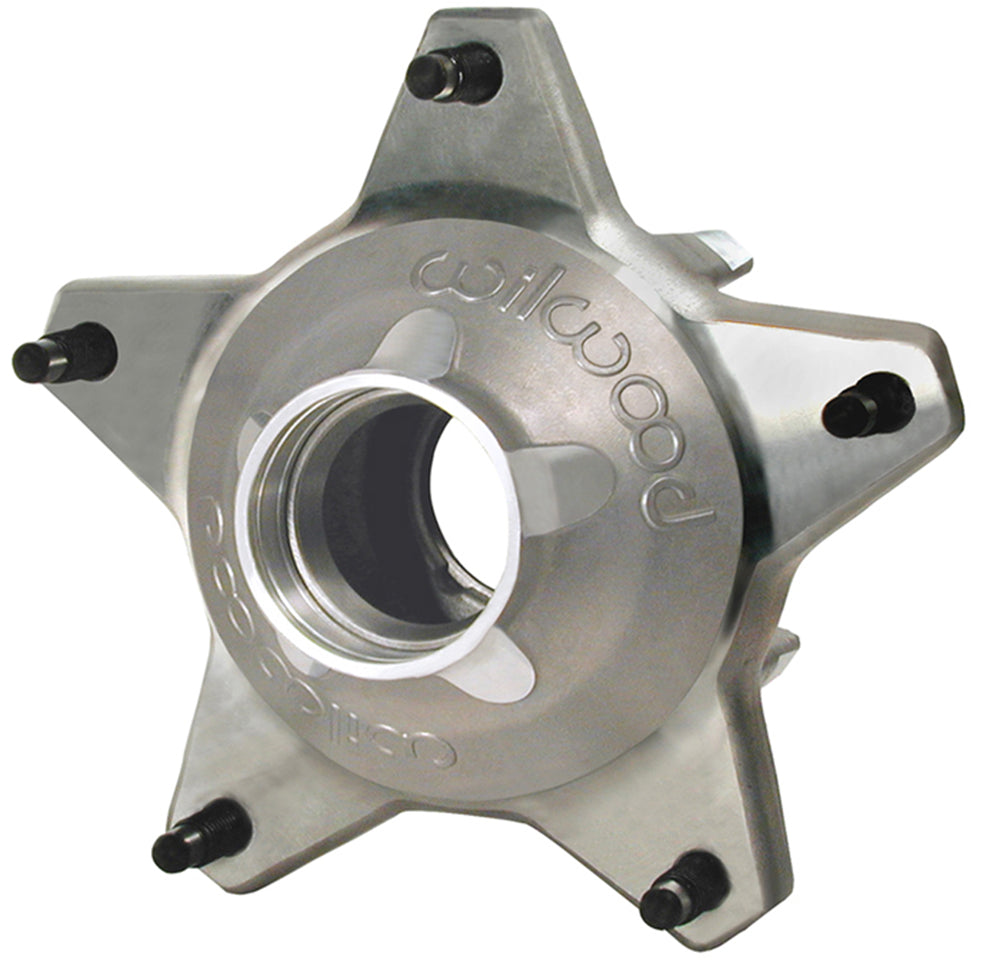

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
Before ordering for a modified assembly, send PMB Performance the kit number and relevant component details. Our over 20 years of experience can help you confirm the correct combination.
