Product details

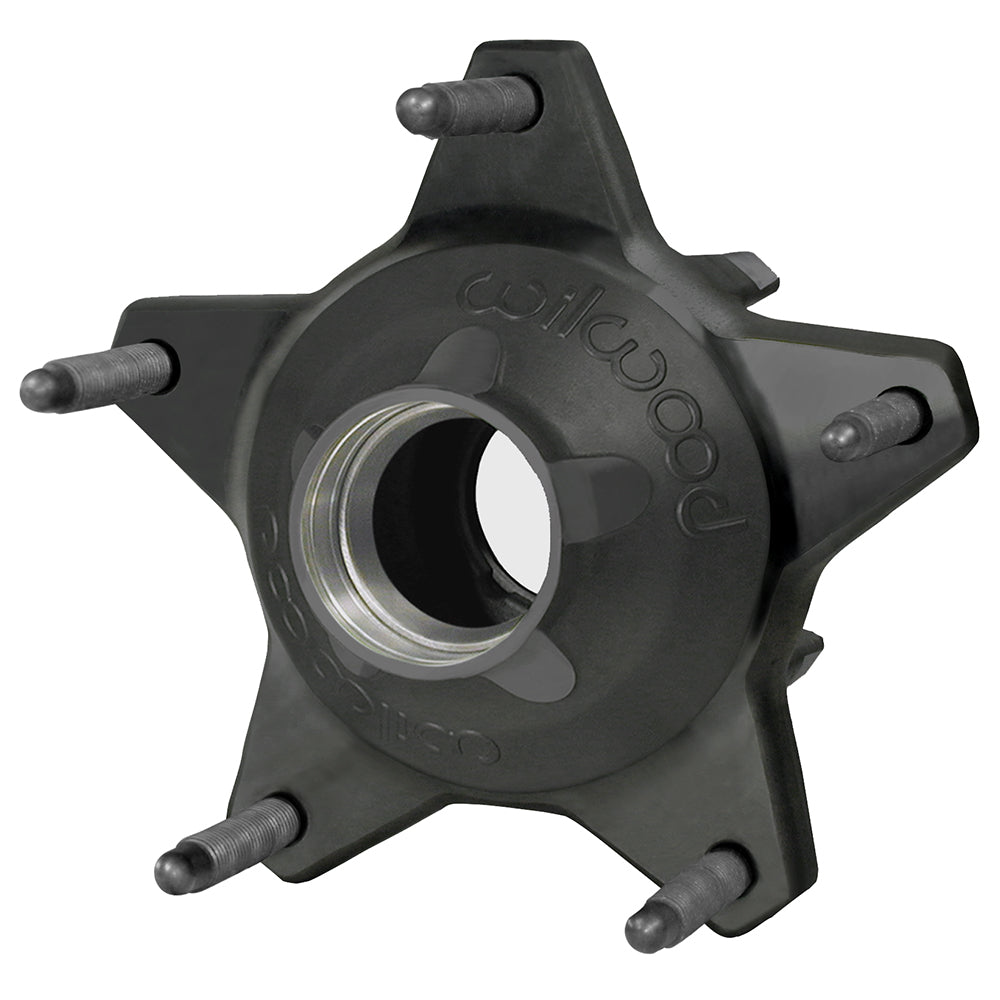

Wilwood equips this black Starlite 55 front hub with wheel studs that are 1.38 inches longer than standard. The aluminum Wide 5 hub retains the Snap-Cap configuration and direct eight-bolt rotor mount. Founded in 1977 by Bill Wood, Wilwood Engineering designs and manufactures disc-brake systems from Camarillo, California. Its range of calipers, rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications. Individual parts must be matched to the requirements of the complete system.
Technical Details
- Manufacturer part number: 270-6735BLS
- Material: Aluminum
- Finish: Black E-Coat
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Axle position: Front
- Hub cap: Snap-Cap
- Stud extension: 1.38 inches beyond standard length
- Rotor attachment circle: 8 x 7.00 inches
- Weight: 8.900 lb
- Inner bearing specification: 370-0431 (fitment reference)
- Outer bearing specification: 370-0432 (fitment reference)
Fitment & Compatibility
Check wheel-center thickness and lug-nut engagement against the additional 1.38 inches of stud length. Confirm the front spindle, bearing seats, and rotor mounting dimensions before using this hub in a custom racing brake package.
