Product details
The black E-coated Starlite 55 front hub from Wilwood combines a Wide 5 wheel mount with coarse-thread studs and a Snap-Cap. It accepts direct rotor attachment on an 8 x 7.00-inch bolt circle. The manufacturer, Wilwood Engineering, was established in 1977 by Bill Wood and is based in Camarillo, California. It produces disc-brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Motorsport, street-performance and specialized applications each require a suitable combination of those components.
Technical Details
- Manufacturer part number: 270-6735BC
- Material: Aluminum
- Finish: Black E-Coat
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Position: Front
- Stud configuration: Standard coarse-thread studs
- Hub closure: Snap-Cap
- Rotor mounting circle: 8 x 7.00 inches
- Weight: 7.3 lb
- Inner bearing specification: 370-0431 (fitment reference)
- Outer bearing specification: 370-0432 (fitment reference)
Fitment & Compatibility
The wheel mounting circle is 5 x 10.25 inches and the studs are 5/8-11. Verify the front spindle and bearing requirements as well as the 8 x 7.00-inch rotor bolt circle; this hub is not identified by a road-car model alone.
Manufacturer Documents

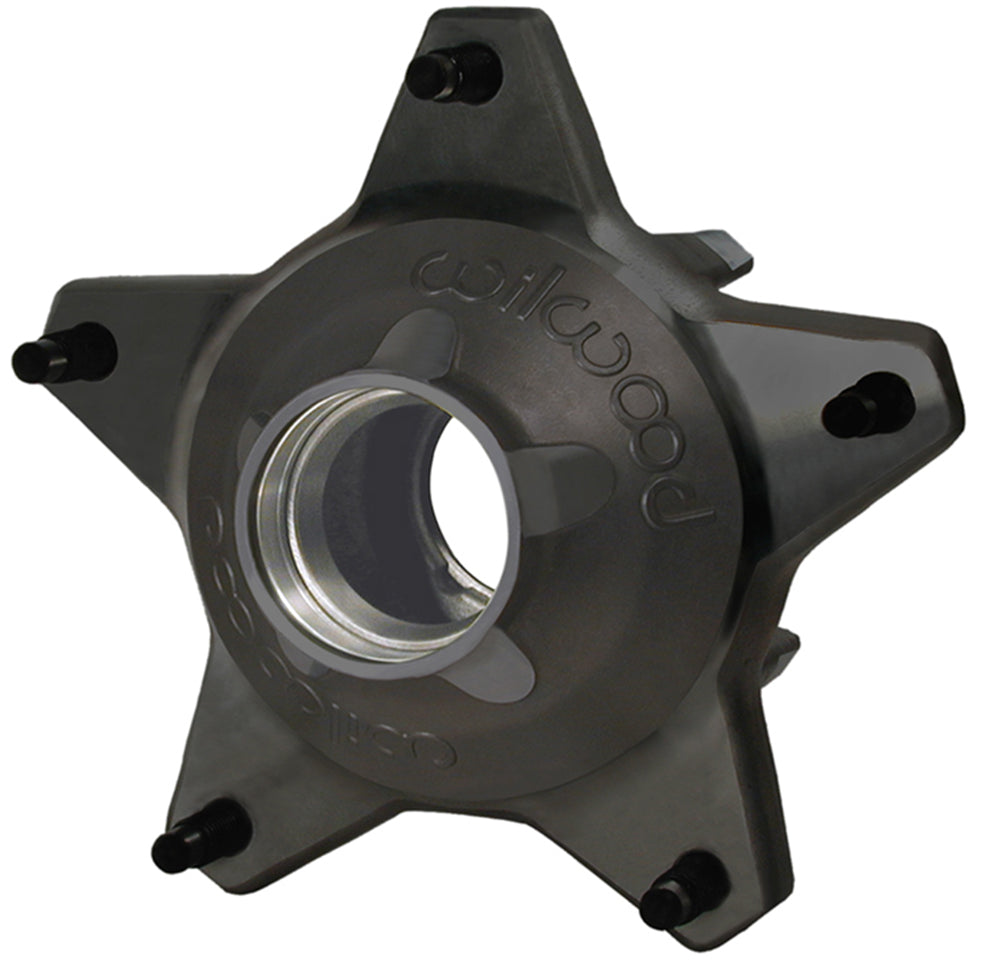

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
With over 20 years of experience, PMB Performance can help work through the dimensions and component requirements. Provide the installed kit information when requesting a fitment check.
