Product details

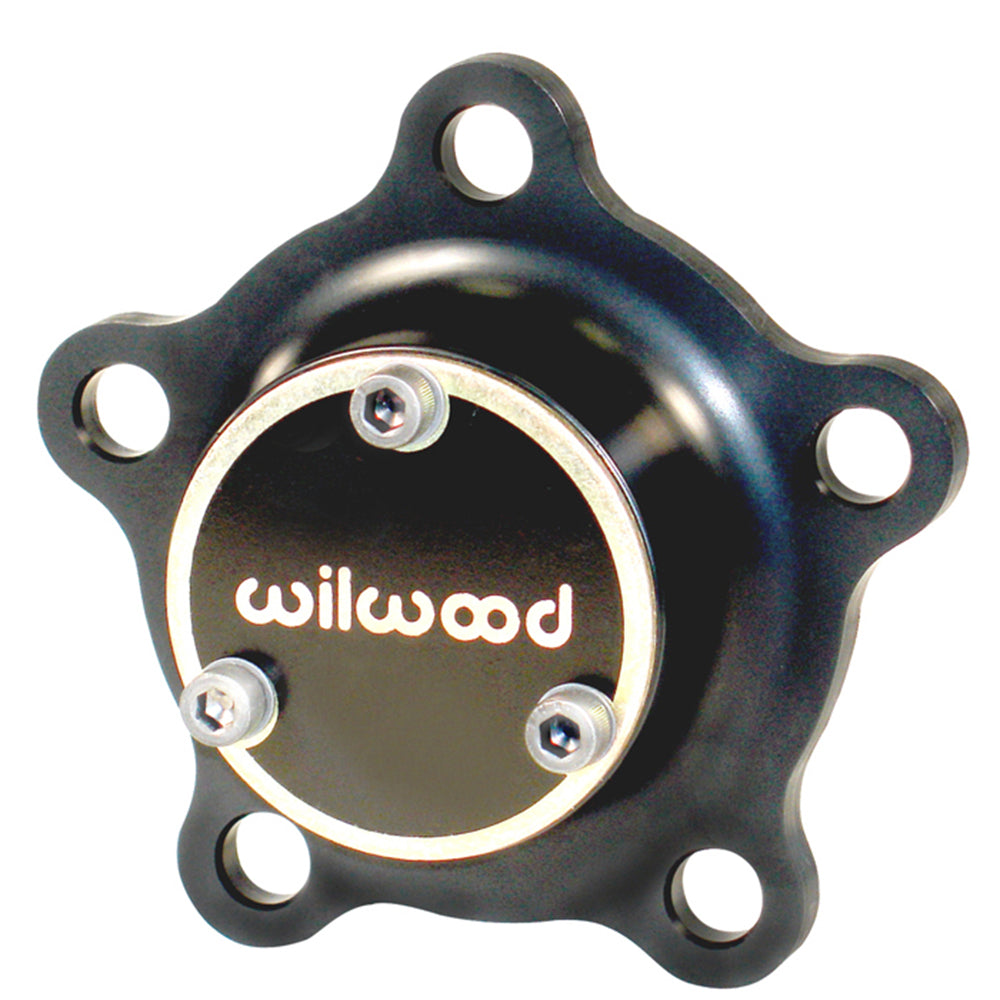

A black-anodized Starlite 55 drive flange is supplied here for installations where the flange attachment bolts will be sourced separately. The standard-weight, 24-spline component includes its end plate and screws, but not the bolts that secure the flange to the hub. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977. Its range covers brake calipers, rotors, master cylinders, valves, fittings, and lines, which are selected according to the needs of the complete system.
Technical Details
- Manufacturer part number: 270-6732L
- Finish: Black anodized
- Spline count: 24
- Alloy: 7075-T6 aluminum
- Included: End plate with screws
- Excluded: Flange attachment bolts
- Weight: 1.100 lb
- Flange attachment: five bolts on 3.98-inch circle
Fitment & Compatibility
Use only with the corresponding five-bolt Starlite 55 rear hub and compatible axle spline. Select the correct flange bolts and washers for that assembly; do not confuse the included small end-plate screws with the omitted drive bolts.
Manufacturer Documents
Contact PMB Performance with the existing part identification and brake-system configuration for selection assistance. We draw on over 20 years of experience with parts and fitment.
