Product details
This standard-weight Starlite 55 drive flange transfers axle drive to a compatible five-bolt wide-five rear hub. Its 24-spline aluminum flange is supplied with the end plate, end-plate screws, Grade-8 mounting bolts, and hardened washers. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 270-6732
- Finish: Black anodized
- Axle interface: 24 splines
- Flange construction: 7075-T6 aluminum
- Included hardware: End plate and screws, Grade-8 drive bolts, hardened washers
- Weight: 1.300 lb
- Flange attachment: five bolts on 3.98-inch circle
Fitment & Compatibility
Match the axle spline and five-bolt Starlite 55 flange interface before ordering. The included attachment hardware distinguishes this kit from the less-bolts version; it is not a replacement wheel hub or a universal axle flange.
Manufacturer Documents

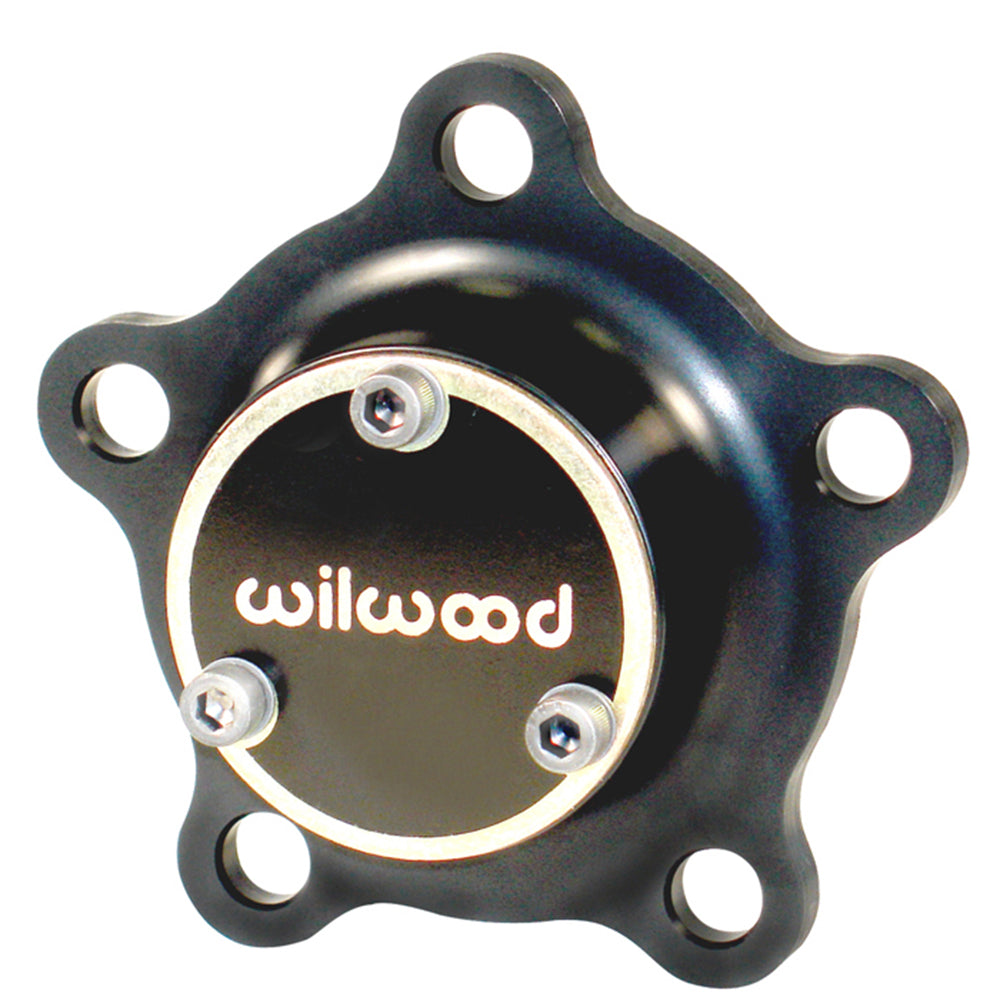

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
For help matching the component to your assembly, contact PMB Performance with the brake-kit details and dimensions. Our team has over 20 years of experience working through parts and fitment questions.
