Product details

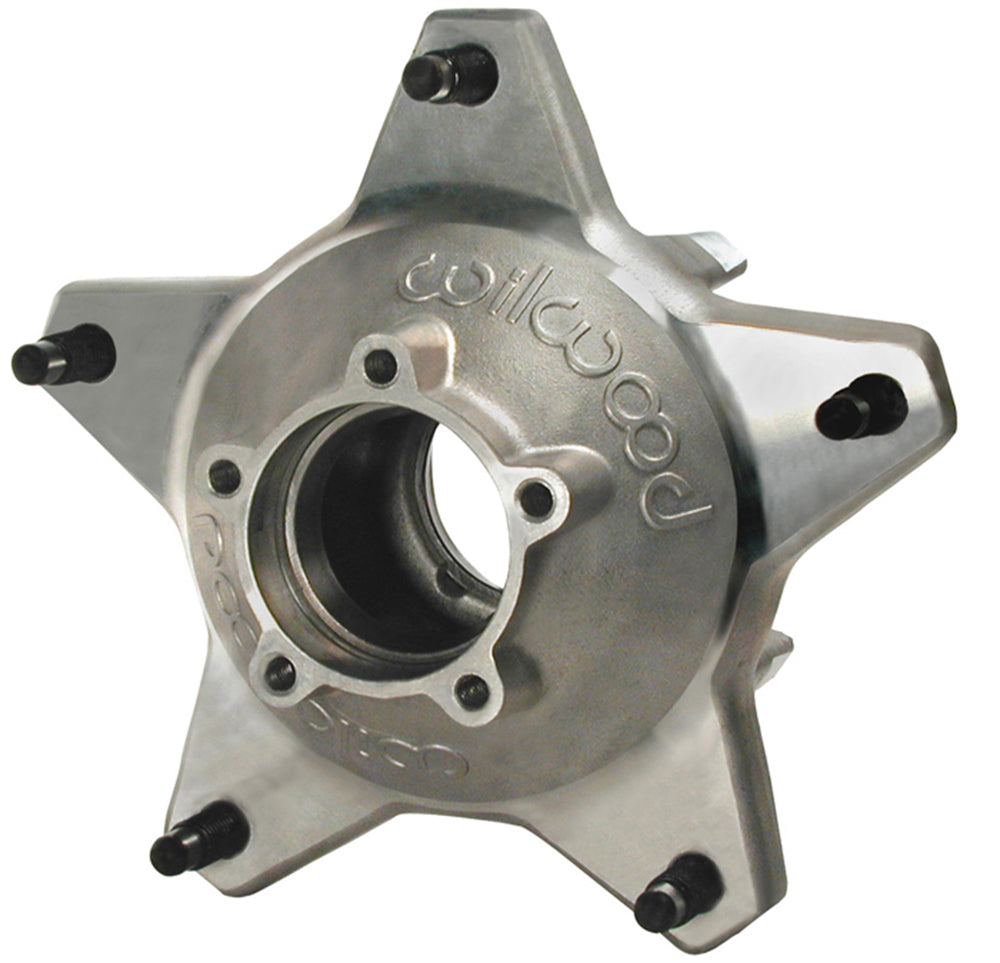

Drilled coarse-thread wheel studs distinguish this bare-aluminum Starlite 55 rear hub from the solid-stud versions. It supports a 5 x 10.25-inch wide-five wheel and is supplied without the bearing races needed to complete the hub assembly. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 270-6513UD
- Material: Aluminum
- Finish: Bare
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Position: Rear
- Stud style: Drilled, 5/8-11
- Bearing races: Excluded
- Rotor attachment: 8 x 7.00-inch bolt circle; standard offset
- Weight: 6.9 lb
Fitment & Compatibility
This rear hub must be matched to the race-car spindle and the correct cup-and-cone bearing combination. Confirm the standard rotor offset and eight-hole, 7.00-inch rotor mounting circle before transferring any brake components.
Manufacturer Documents
The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
