Product details

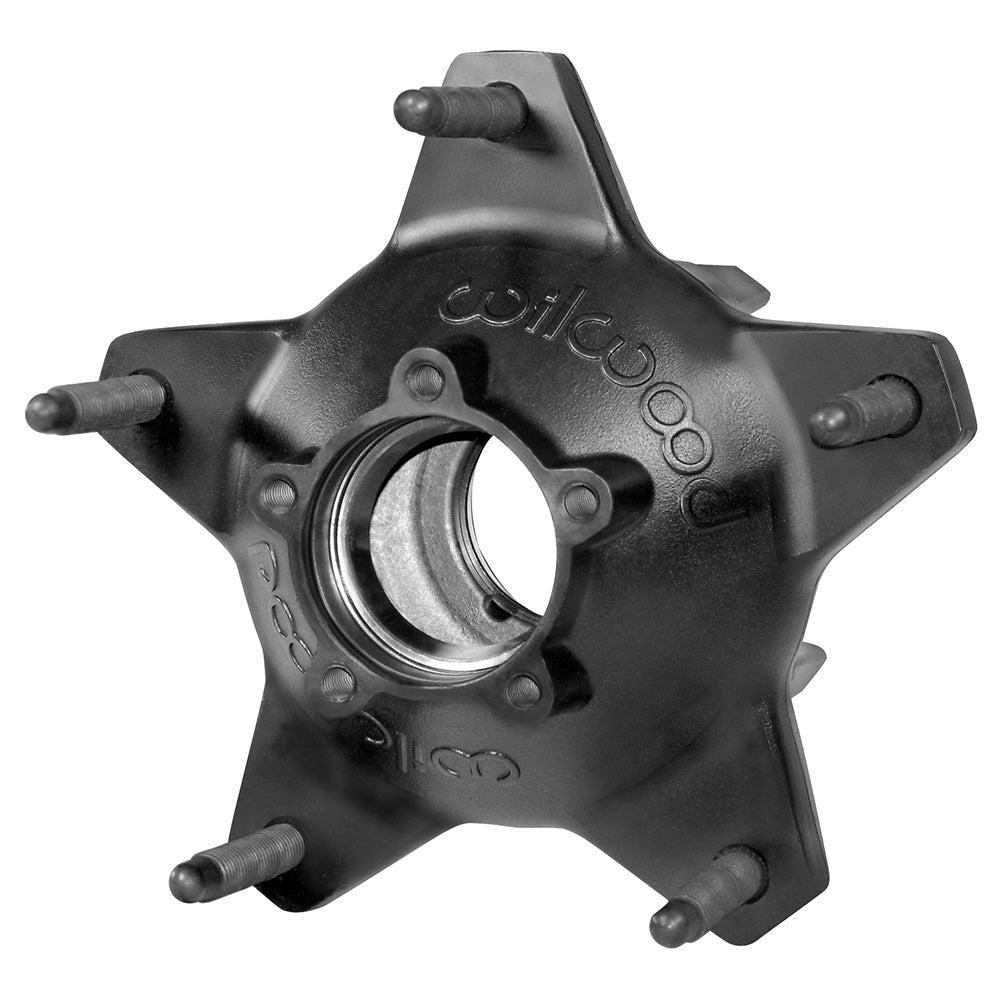

This black E-coated Wilwood Starlite 55 rear hub carries a Wide 5 wheel on a 5 x 10.25-inch bolt circle. Its 5/8-11 coarse studs extend 1.38 inches beyond the standard stud length, and bearing races are not included. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components include calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected for the complete brake system.
Technical Details
- Manufacturer part number: 270-6513UBLS
- Material: Aluminum
- Finish: Black E-Coat
- Wheel bolt pattern: 5 x 10.25 in
- Wheel stud thread: 5/8-11
- Axle position: Rear
- Wheel stud configuration: Extended 5/8-11 studs; 1.38 inches longer than standard
- Bearing races: Not included
- Rotor mounting bolt circle: 8 x 7.00 inches
- Weight: 8.200 lb
Fitment & Compatibility
Check the rear hub, spindle, bearing seats, and 5 x 10.25-inch wheel bolt circle together. The 5/8-11 studs are 1.38 inches longer than the standard version; verify wheel and lug-nut engagement rather than choosing by vehicle model alone.
Manufacturer Documents
PMB Performance brings over 20 years of experience with brake components and fitment. Send us the installed kit number and relevant measurements if you need help confirming this part.
