Product details

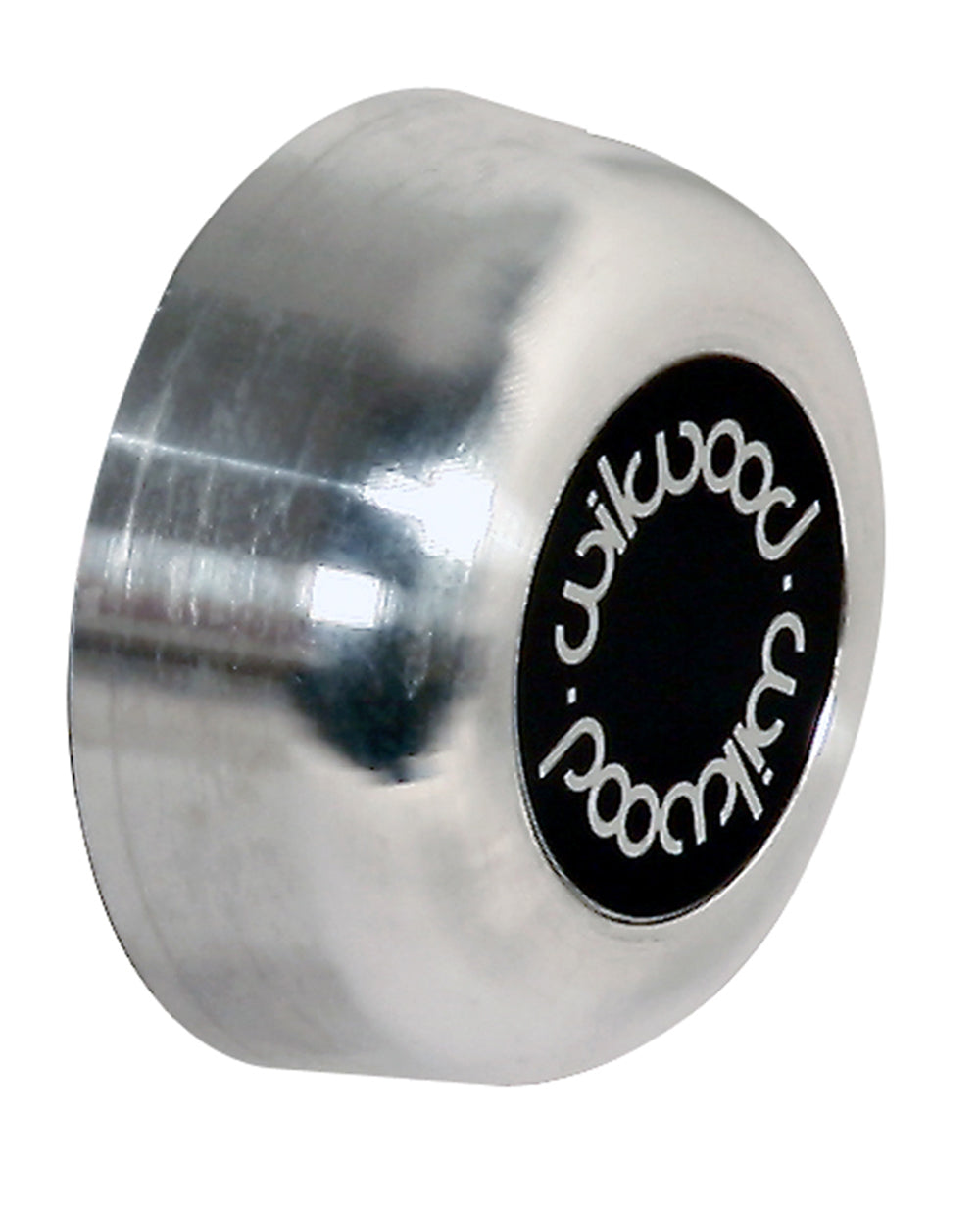

The bare aluminum cap screws into the specified Wilwood forged hub and includes a sealing/tensioning O-ring. Its published A reference is 1.120 inches; compare the installed cap and available wheel clearance. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 270-2158
- Cap profile: Published A reference 1.120 inches
- Component: Dust Cap
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Product-page drawing references (inches): A = 1.120. Use the manufacturer drawing for the reference faces.
- Package: One screw-in aluminum cap with sealing/tensioning O-ring
Fitment & Compatibility
For the compatible Wilwood forged front hub using this screw-in cap. Check cap thread, O-ring seat and wheel-center clearance; matching the visible logo or outside shape alone is insufficient.
Wilwood component specifications
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
