Product details

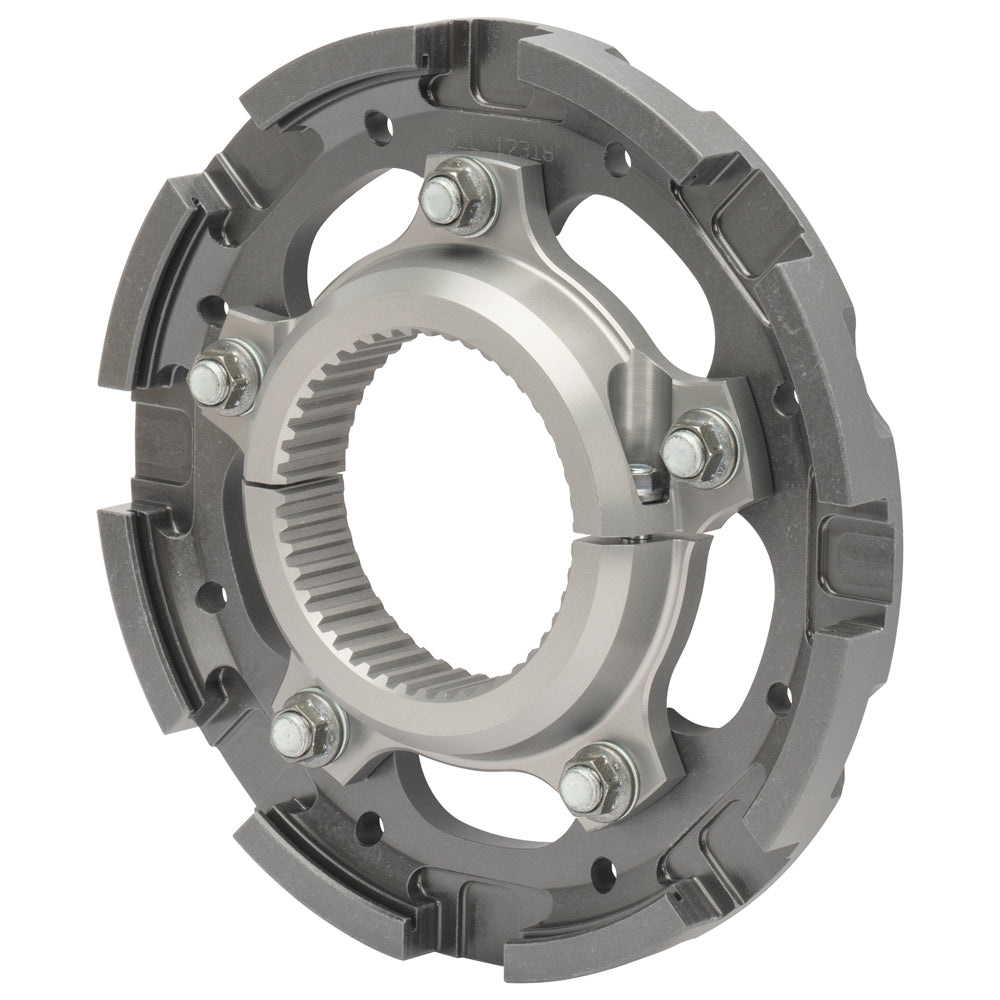

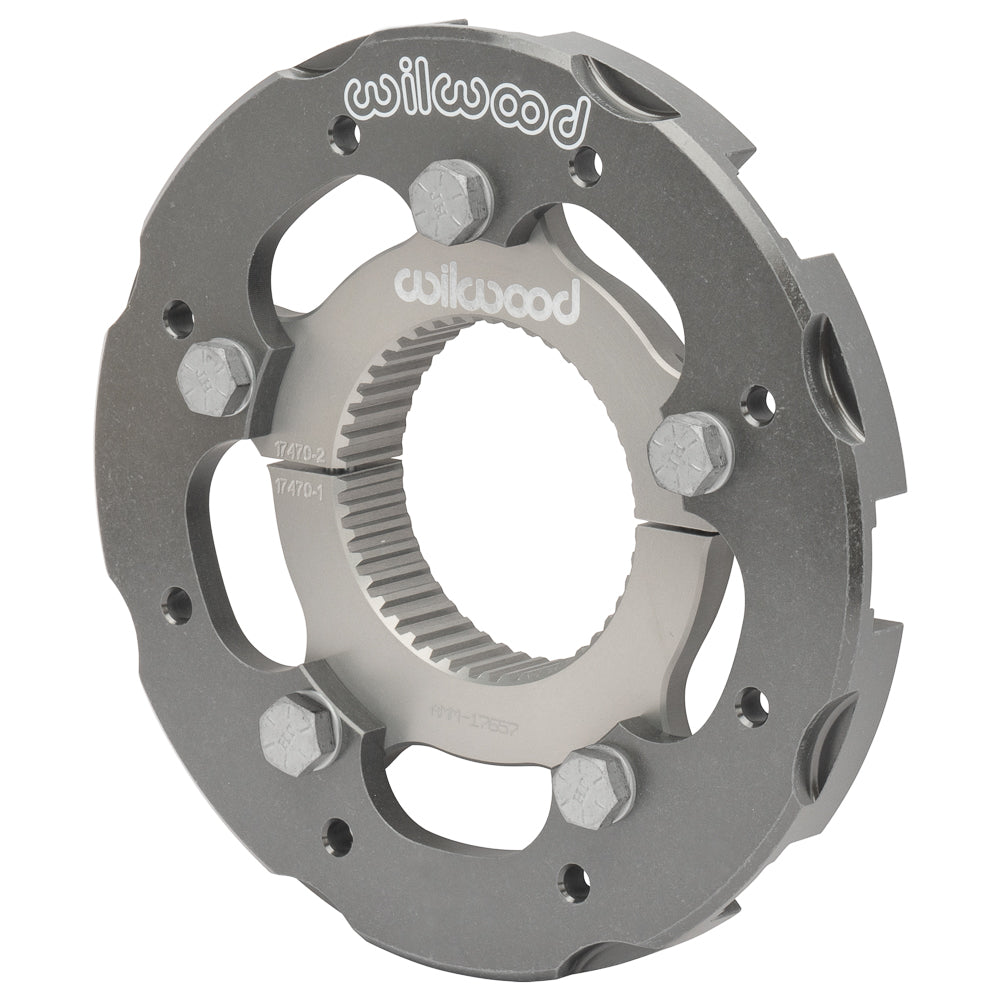

The XRZ lug-drive kit connects a 46-spline Sprint axle to the specified eight-lug rotor. A snap ring and wear plates retain the rotor without rotor-to-plate bolts; those retention parts are supplied separately. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 270-17650
- Hub-to-adapter attachment: 5x4.875; this is not the wheel bolt circle
- Compatible rotor-adapter output interface(s): 8Lug-7.18; match the actual adapter and rotor
- Related assembly part reference(s): 300-17318; check the kit contents and obtain any separately required parts
- Axle spline interface: 46-spline Sprint XRZ; match the specified DMI/Winters axle profile
- Package: One XRZ clamp-hub and lug-drive adapter kit. Additional snap ring and wear plates are required and not included; manufacturer reference 300-12561.
- Component: Sprint Inboard Hub Kit - Dynamic Lug Mount
- Position in the specified assembly: Rear
- Material: Aluminum
- Finish: Type III Anodize
- Rotor mounting arrangement: Adapter-Dynamic
Fitment & Compatibility
For the specified rear inboard racing axle and matching rotor adapter. Confirm the spline count and profile, axle clamp engagement, rotor alignment and caliper clearance. This part mounts the brake rotor; it is not an outboard wheel hub. Wilwood specifies 160-16923 or 160-17781 lug-drive rotors and a radial-mount caliper for this arrangement.
Wilwood component specifications
Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.
