Product details

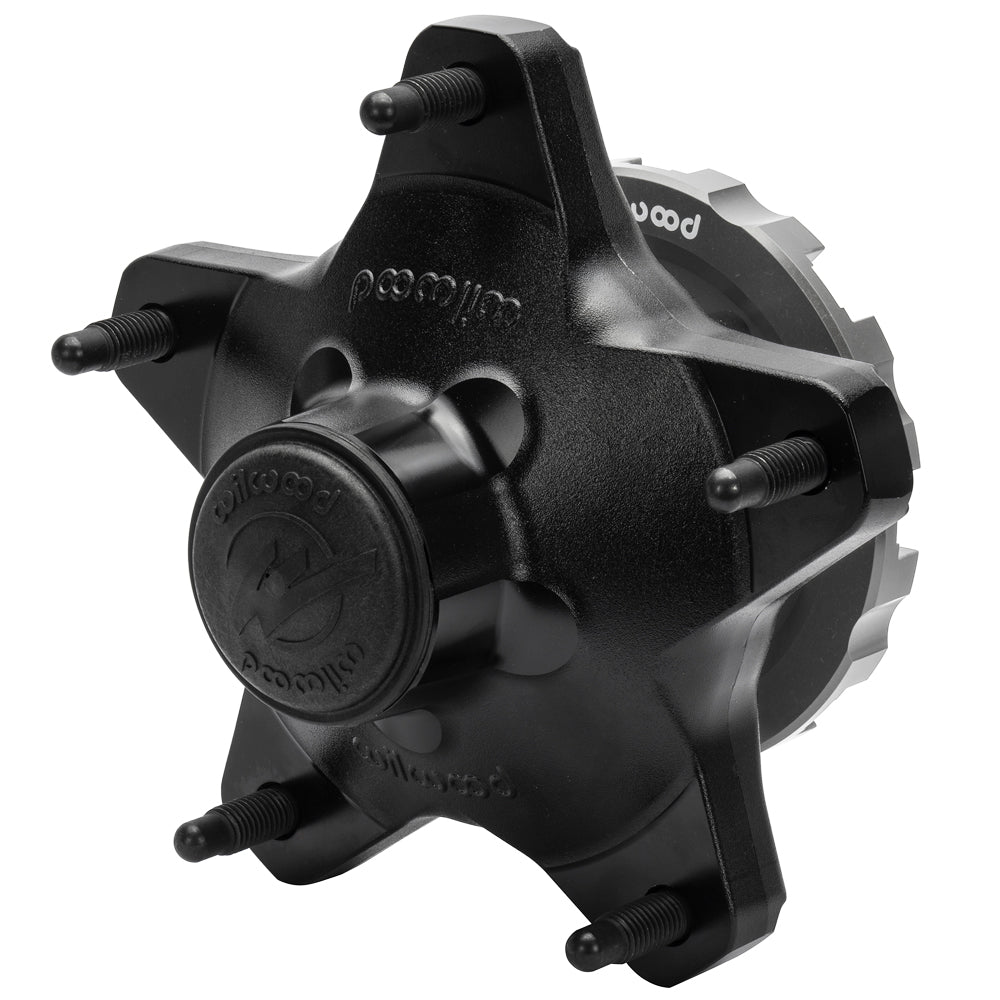

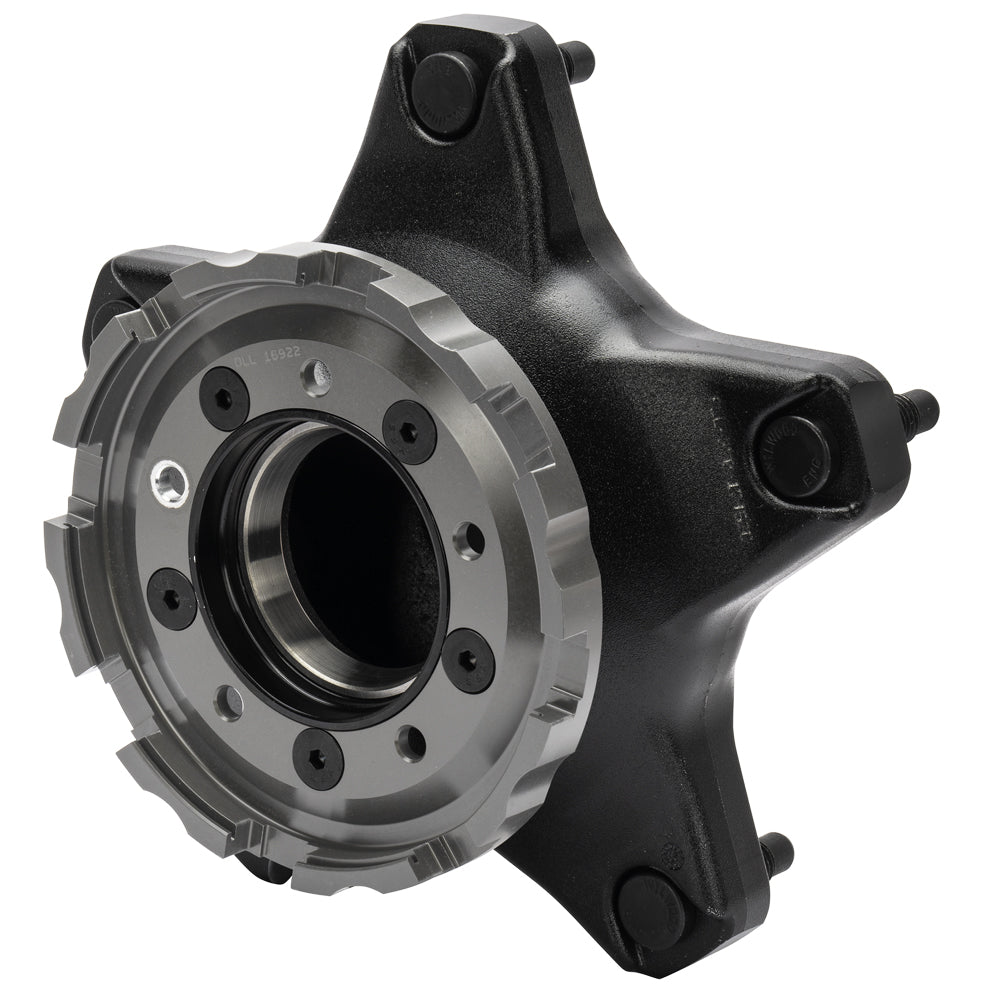

This front Starlite 55XD configuration combines a Snap-Cap with a dynamic lug-drive rotor plate. Its large wheel bolt circle and smaller rotor-drive interface perform separate functions and must each match the assembly. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 270-17462C
- Package configuration: One front hub with bolt-on lug-drive rotor plate
- Front closure: Snap-Cap in the specified front hub configuration
- Component: Wide 5 - Starlite 55XD - Dynamic Lug Mount
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Black E-Coat
- Wheel mounting pattern(s): 5 x 10.25 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 5/8-11
- Rotor mounting arrangement: Adapter
- Rotor interface: 8Lug-7.18; this is not the wheel bolt circle
- Product-page drawing references (inches): A = 3.320; D = 3.480; H = 2.650; M = 4.600; N = 2.930. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0431; Outer Bearing: 370-0432; Inner Hub Bearing - Race: 370-0314; Outer Hub Bearing - Race: 370-0315. References identify compatible service parts and do not mean all bearings are included.
- Related assembly part reference(s): 300-16922; check the kit contents and obtain any separately required parts
Fitment & Compatibility
For the specified Wide 5 racing spindle and wheel assembly. Match the bearing-race arrangement, drive flange or front cap, wheel-stud specification and separate rotor attachment. Use Wilwood’s current hub instructions for fastener selection and torque.
