Product details

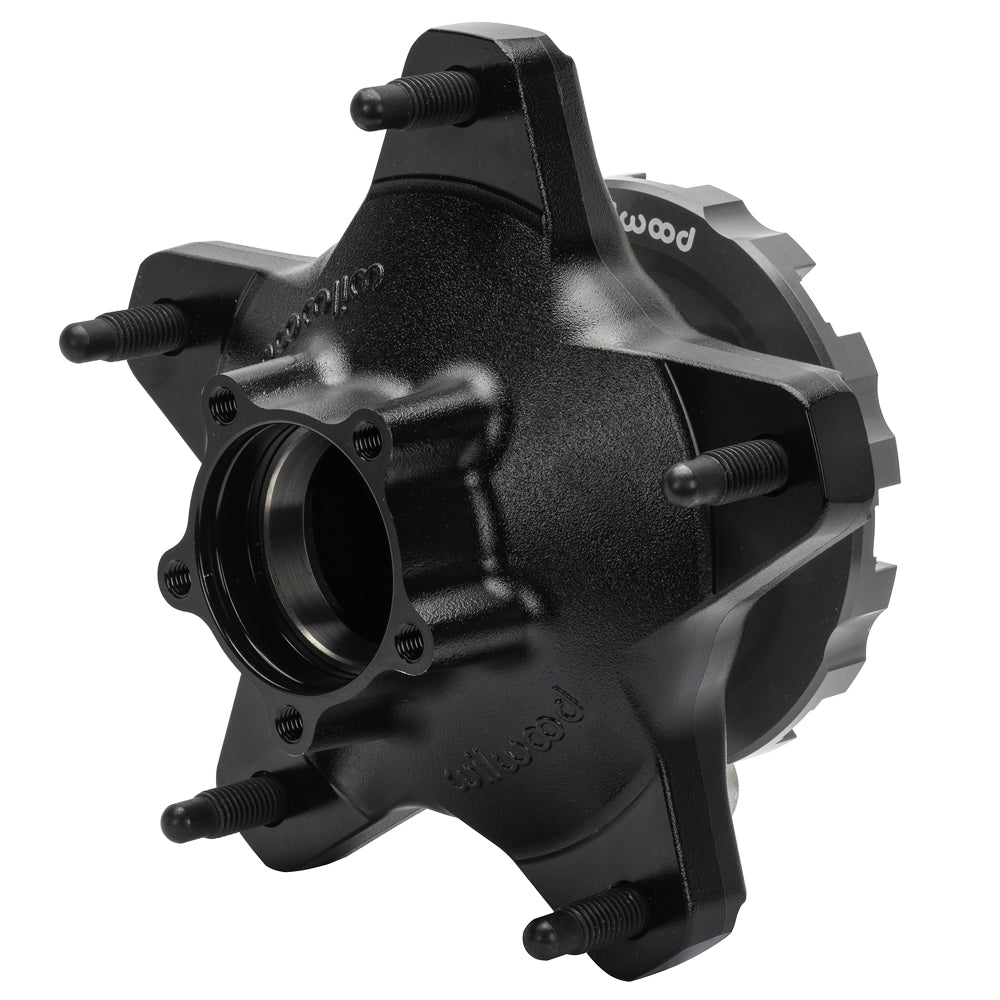

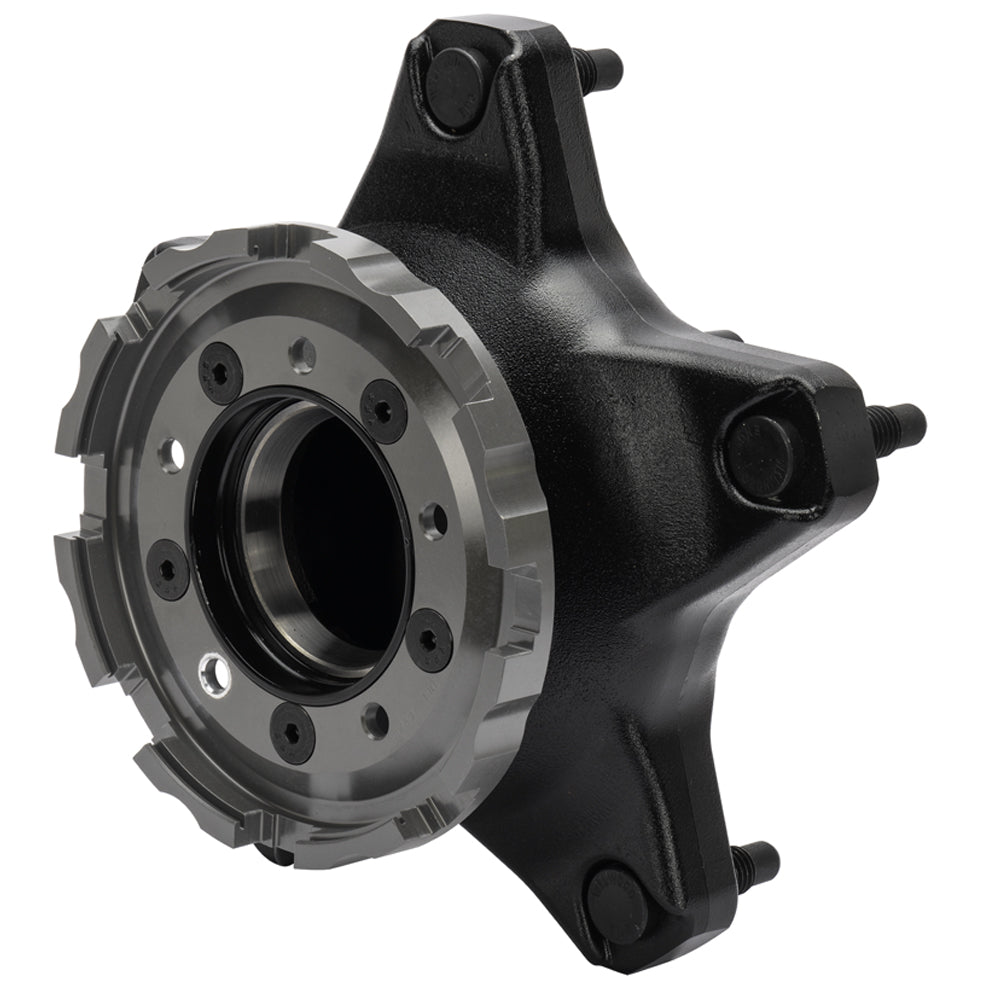

A bolt-on lug-drive plate distinguishes this rear 55XD hub from the conventional eight-bolt rotor version. The dynamic rotor connection requires the specified lug-drive rotor and retention components. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 270-17461C
- Material: Aluminum
- Finish: Black E-Coat
- Wheel mounting pattern(s): 5 x 10.25 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 5/8-11
- Rotor mounting arrangement: Adapter
- Rotor interface: 8Lug-7.18; this is not the wheel bolt circle
- Product-page drawing references (inches): A = 3.320; D = 3.480; H = 2.650; M = 4.600; N = 2.930. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0431; Outer Bearing: 370-0432; Inner Hub Bearing - Race: 370-0314; Outer Hub Bearing - Race: 370-0315. References identify compatible service parts and do not mean all bearings are included.
- Related assembly part reference(s): 300-16922; check the kit contents and obtain any separately required parts
- Package configuration: One rear hub with bolt-on lug-drive rotor plate
- Component: Wide 5 - Starlite 55XD - Dynamic Lug Mount
- Position in the specified assembly: Rear
Fitment & Compatibility
For the specified Wide 5 racing spindle and wheel assembly. Match the bearing-race arrangement, drive flange or front cap, wheel-stud specification and separate rotor attachment. Use Wilwood’s current hub instructions for fastener selection and torque.
Wilwood component specifications · Manufacturer reference FL574
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
