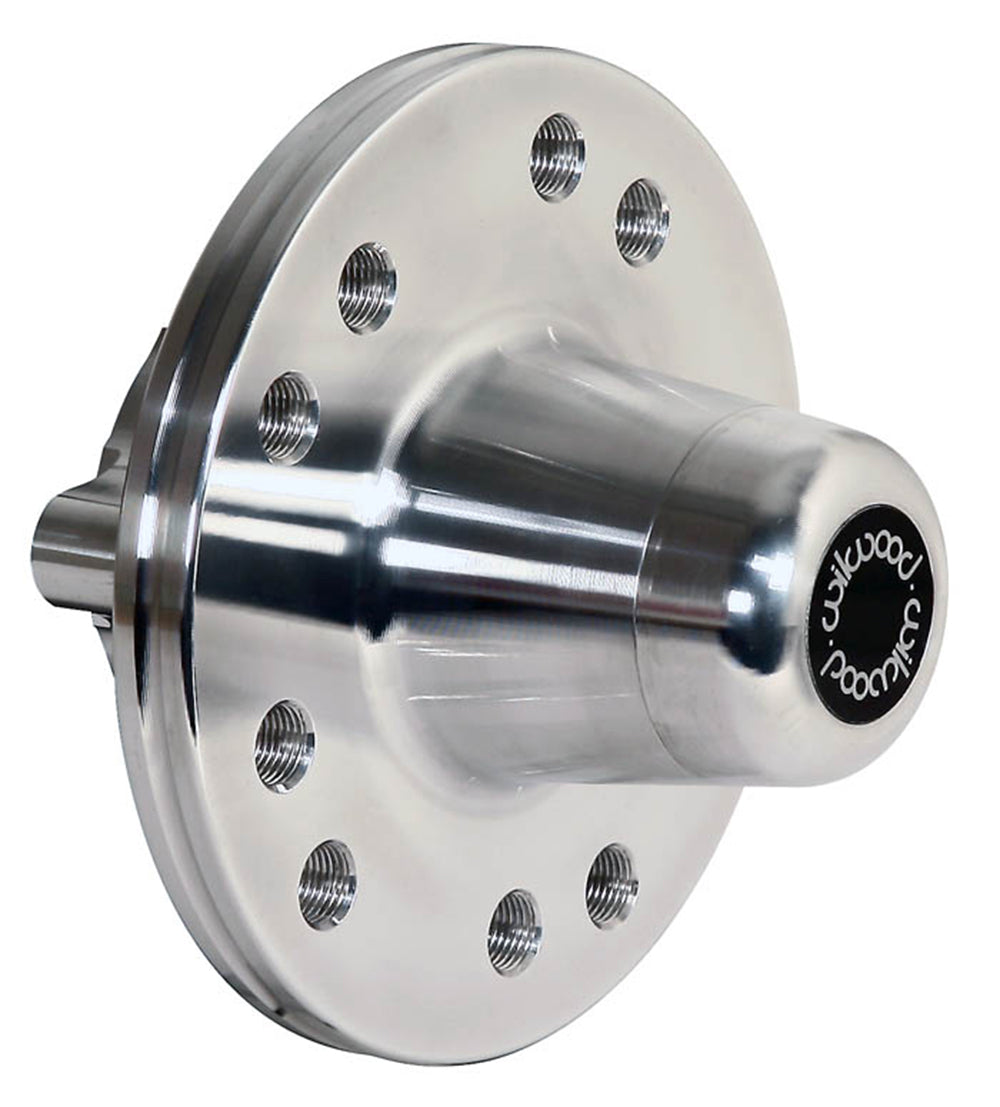

Wilwood Mopar A-Body Front Disc-Spindle Hub with Intermediate Rotor Plate (1965–1972)

This A-Body hub is listed for the specified 1965–1972 disc-brake spindle. It mounts a vented rotor through an intermediate plate, and its geometry should be compared with the exact Wilwood conversion instructions. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.

Technical Details

• Manufacturer part number: 270-15456
• Compatible rotor-adapter output interface(s): 6 x 6.25, 8 x 7.00; match the actual adapter and rotor
• Product-page drawing references (inches): A = 1.730; D = 2.330; H = 1.720; M = 2.970; N = 1.710; P = 3.060; Q = 0.250. Use the manufacturer drawing for the reference faces.
• Manufacturer bearing / race references: Inner Bearing: 370-0879; Outer Bearing: 370-0877; Inner Hub Bearing - Race: 370-0878; Outer Hub Bearing - Race: 370-0876. References identify compatible service parts and do not mean all bearings are included.
• Related assembly part reference(s): 300-3307; 300-3099; check the kit contents and obtain any separately required parts
• Conflicting published dimensions: Dim A: product page 1.730 inch, DS719 1.727 inch; Dim D: product page 2.330 inch, DS719 2.332 inch; Dim H: product page 1.720 inch, DS719 1.715 inch. Confirm the supplied hub and reference faces before using either value.
• Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
• Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
• Component: Hub - Vented Rotor Offset
• Position in the specified assembly: Front
• Material: Aluminum
• Finish: Bare
• Wheel mounting pattern(s): 5 x 4.50, 5 x 4.75 inches; separate from rotor or drive-flange attachment
• Wheel-stud thread: 1/2-20
• Rotor mounting arrangement: Adapter
• Rotor interface: 5 x 3.88; this is not the wheel bolt circle

Fitment & Compatibility

The wheel flange and rotor attachment are different interfaces. Check both against the specified hub, spindle and brake-kit drawing, including the bearings and required fasteners.

Wilwood component specifications · Manufacturer reference DS719
