Product details

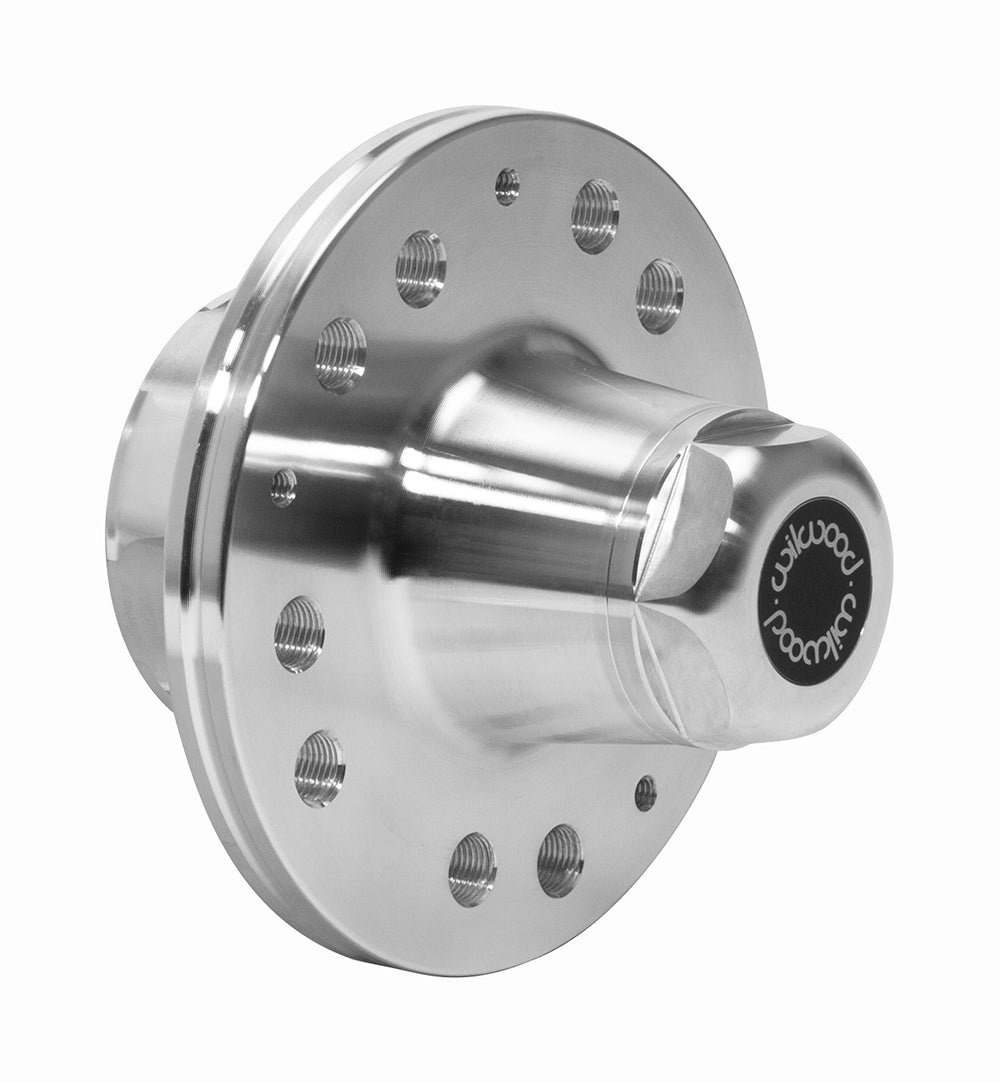

This F-100 hat-mount hub uses a different outer-bearing arrangement from the earlier-spindle version. Wilwood's product page starts the application in 1968, while the dimensional guide starts it in 1965; verify the actual spindle. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 270-14836
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Hat Mount
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 4.50, 5 x 4.75 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Hat
- Product-page drawing references (inches): D = 2.620; H = 1.770; M = 3.500; N = 2.010; P = 3.180; Q = 0.260. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-2609; Outer Bearing: 370-9542; Inner Hub Bearing - Race: 370-2571; Outer Hub Bearing - Race: 370-9425. References identify compatible service parts and do not mean all bearings are included.
- Conflicting published dimensions: Dim D: product page 2.620 inch, DS719 2.624 inch. Confirm the supplied hub and reference faces before using either value.
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Hat retention: Three 1/4-20 holes; Wilwood lists bolt kit 230-7032
Fitment & Compatibility
Check wheel-flange position against the spindle and rotor mounting faces. Hubs for the same vehicle can use different offsets or bearing combinations and should not be substituted on model name alone. Product application states 1968–1972 F-100; DS719 begins in 1965. Confirm the exact spindle application with Wilwood.
Wilwood component specifications · Manufacturer reference DS719
