Product details

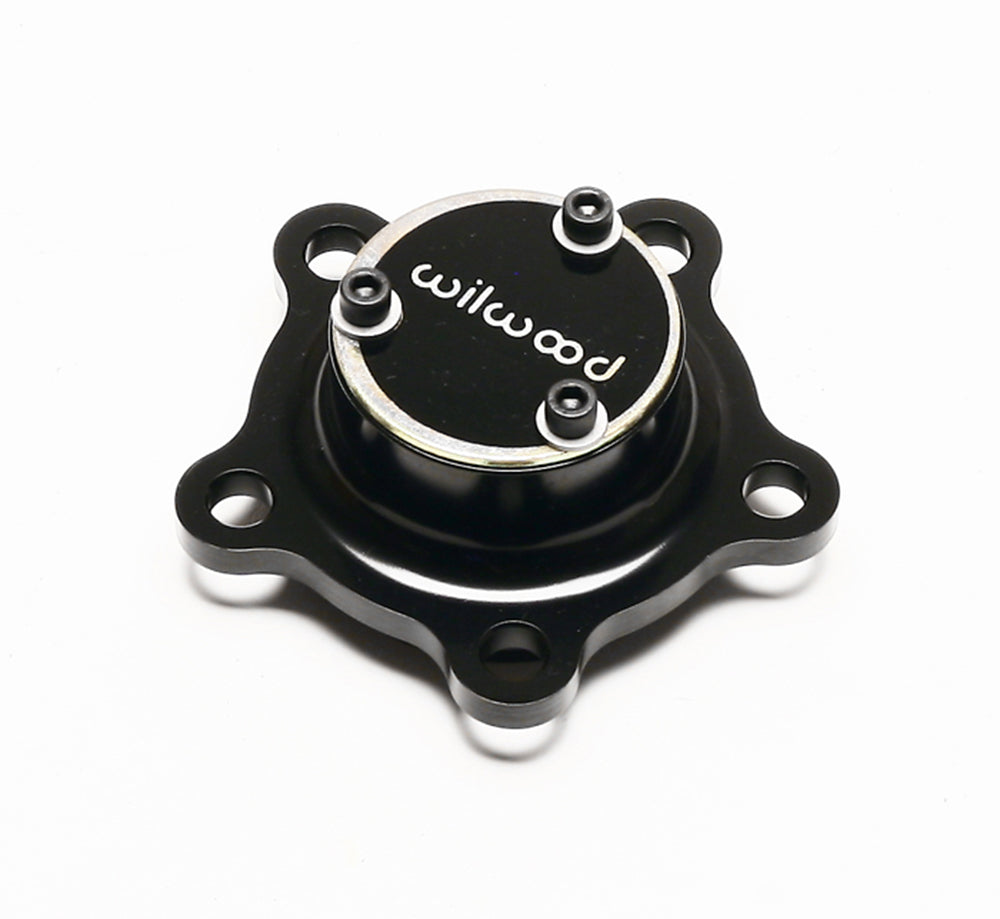

The L version supplies the Starlite 55 drive flange without its flange attachment bolts. It retains the 24-spline torque connection and O-ring sealing arrangement, requiring separately selected compatible fasteners. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 270-13213L
- Attachment hardware: Flange attachment bolts excluded
- Component: Starlite 55 Drive Flange
- Position in the specified assembly: Rear
- Material: Aluminum
- Finish: Black Anodize
- Flange attachment reference: 5 x 3.98; this is not the wheel bolt circle
- Drive-shaft spline count: 24 splines
- Sealing arrangement: 7075-T6 aluminum flange with sealing boss and O-ring
Fitment & Compatibility
Match the 24-spline rear drive shaft and five-bolt Wide 5 hub interface. Wilwood excludes one-ton axles and hubs because of interference. Do not interchange this flange with that bearing/hub arrangement.
Wilwood component specifications
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
