Product details

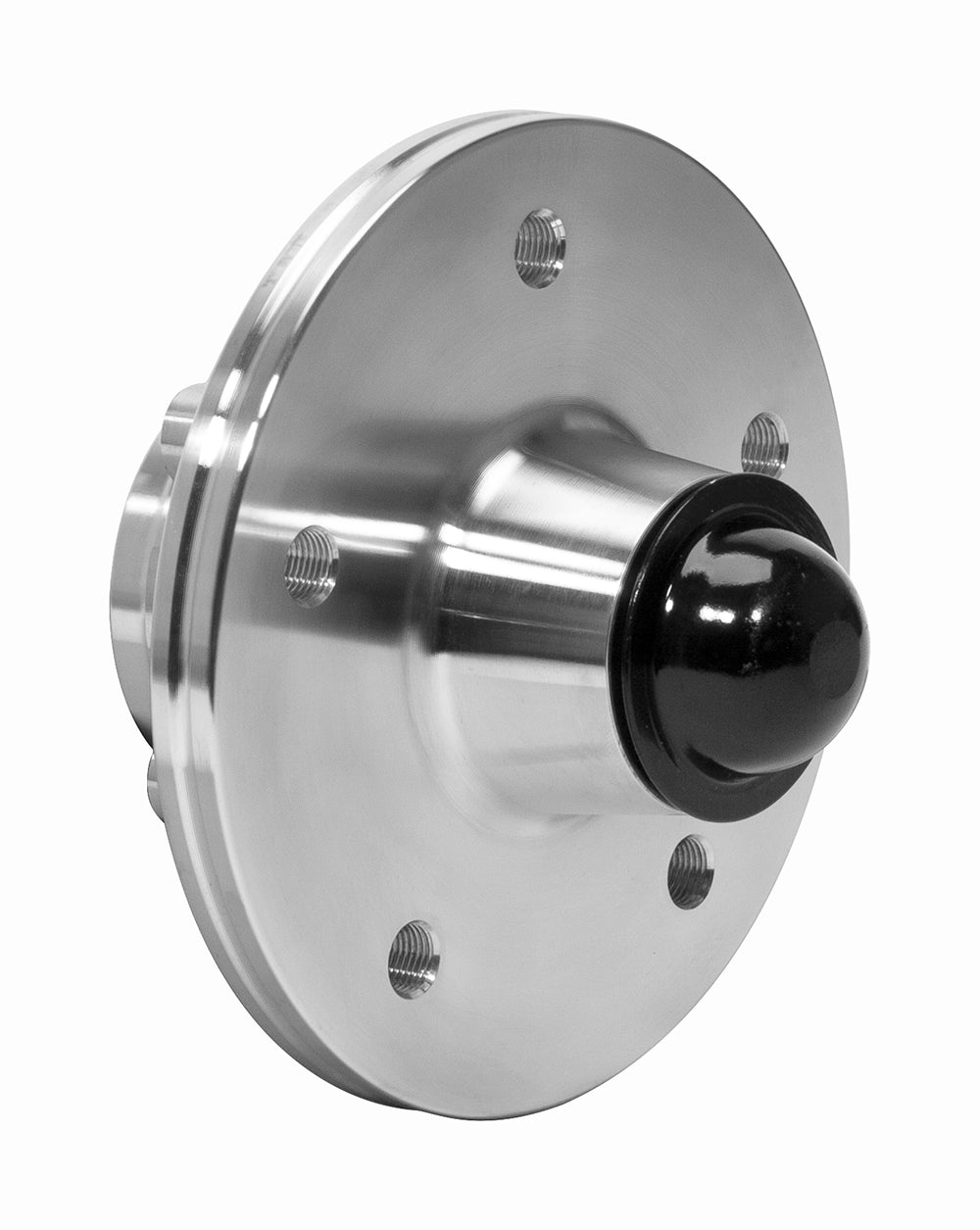

This Oldsmobile hub uses a press-on steel bearing cap rather than the screw-on cap on many other street hubs. The wheel flange is five-on-five; the exact year and spindle scope require confirmation across Wilwood references. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.
Technical Details
- Manufacturer part number: 270-12619
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Bearing cap: Press-on steel cap 270-12403 included
- Component: Hub - Vented Rotor Offset
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 5.00 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Adapter
- Rotor interface: 5 x 3.88; this is not the wheel bolt circle
- Compatible rotor-adapter output interface(s): 6 x 6.25, 8 x 7.00; match the actual adapter and rotor
- Product-page drawing references (inches): A = 1.820; D = 2.624; H = 1.394; M = 3.700; N = 2.320; P = 3.040; Q = 0.250. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0884; Outer Bearing: 370-0877; Inner Hub Bearing - Race: 370-0883; Outer Hub Bearing - Race: 370-0876. References identify compatible service parts and do not mean all bearings are included.
- Related assembly part reference(s): 300-3307; 300-3099; check the kit contents and obtain any separately required parts
Fitment & Compatibility
Compare the spindle journals, bearing references and hub mounting faces with the complete brake assembly. A shared wheel bolt pattern alone does not establish hub interchangeability. Product characteristics and narrative specify 1940–1952 Oldsmobile, while DS719 says 1940–1951. Confirm the exact spindle application with Wilwood.
Wilwood component specifications · Manufacturer reference DS719
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
