Product details

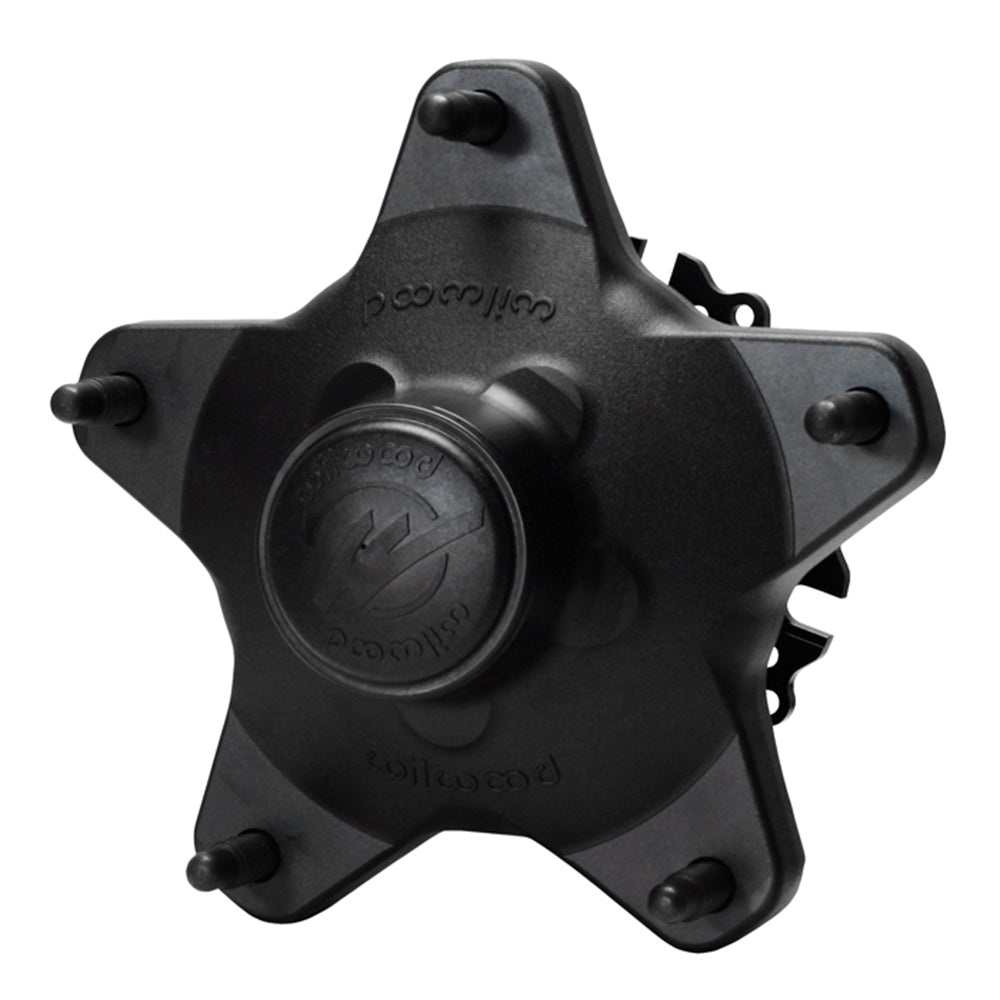

The front 55XD version adds a Snap-Cap to the Wide 5 hub and bolt-on rotor plate. Its coarse wheel studs and spindle bearings need to match the intended racing wheel and suspension assembly. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer part number: 270-12127C
- Wheel mounting pattern(s): 5 x 10.25 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 5/8-11
- Rotor mounting arrangement: Adapter
- Rotor interface: 8 x 7.00; this is not the wheel bolt circle
- Product-page drawing references (inches): A = 3.320; D = 3.480; H = 2.650; M = 4.600; N = 2.930. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0431; Outer Bearing: 370-0432; Inner Hub Bearing - Race: 370-0314; Outer Hub Bearing - Race: 370-0315. References identify compatible service parts and do not mean all bearings are included.
- Related assembly part reference(s): 300-11211; check the kit contents and obtain any separately required parts
- Package configuration: One front hub with bolt-on eight-bolt rotor plate
- Front closure: Snap-Cap in the specified front hub configuration
- Component: Wide 5 - Starlite 55XD
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Black E-Coat
Fitment & Compatibility
For the specified Wide 5 racing spindle and wheel assembly. Match the bearing-race arrangement, drive flange or front cap, wheel-stud specification and separate rotor attachment. Use Wilwood’s current hub instructions for fastener selection and torque.
