Product details

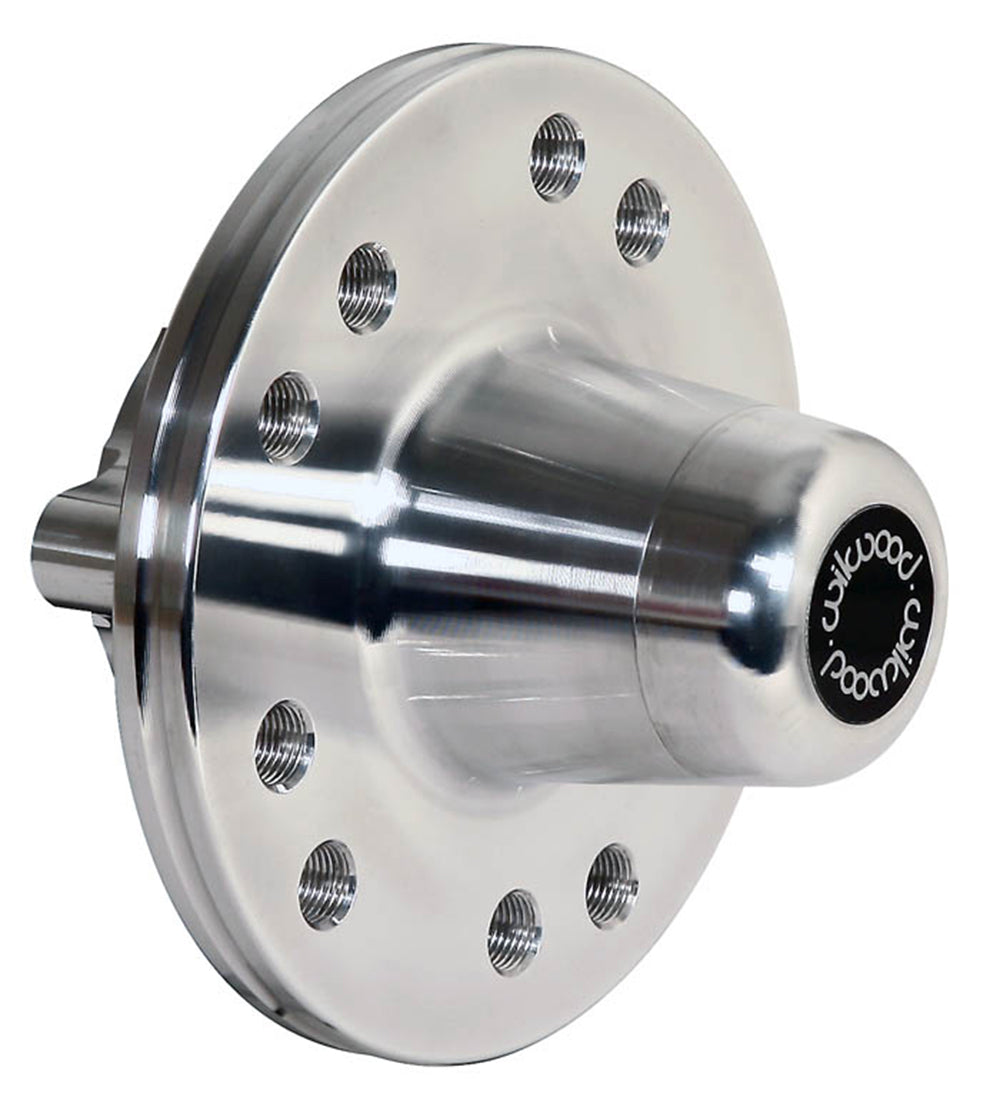

This front hub serves the specified AMC spindle arrangement through an intermediate rotor adapter. AMC model identity alone is insufficient; compare the bearing references and mounting geometry with the installed conversion. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.
Technical Details
- Manufacturer part number: 270-11942
- Related assembly part reference(s): 300-3307; 300-3099; check the kit contents and obtain any separately required parts
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Vented Rotor Offset
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 4.50, 5 x 4.75 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Adapter
- Rotor interface: 5 x 3.88; this is not the wheel bolt circle
- Compatible rotor-adapter output interface(s): 6 x 6.25, 8 x 7.00; match the actual adapter and rotor
- Product-page drawing references (inches): A = 1.694; D = 2.495; H = 1.402; M = 3.150; N = 1.960; P = 3.010; Q = 0.250. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0879; Outer Bearing: 370-0877; Inner Hub Bearing - Race: 370-0878; Outer Hub Bearing - Race: 370-0876. References identify compatible service parts and do not mean all bearings are included.
Fitment & Compatibility
Identify the installed conversion and compare its hub drawing before ordering. The spindle, bearings, rotor connection and caliper alignment must agree as a complete assembly.
Wilwood component specifications · Manufacturer reference DS719
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
