Product details

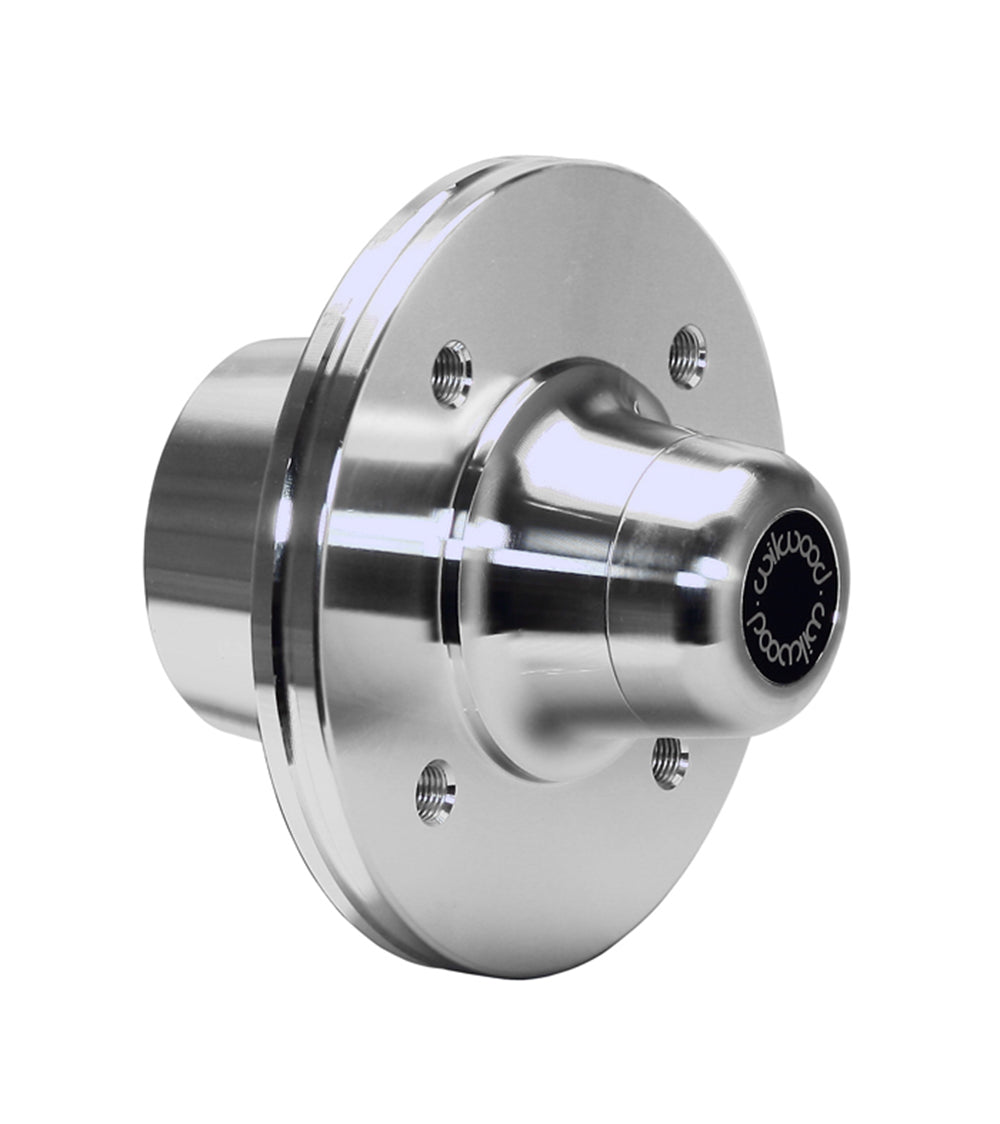

A four-on-4.25-inch wheel flange identifies this Sunbeam Tiger front hub. The hub works within the documented hat-mounted brake conversion, using the specified bearings and separate rotor hat. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.
Technical Details
- Manufacturer part number: 270-11746
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 4 x 4.25 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 7/16-20
- Rotor mounting arrangement: Hat
- Product-page drawing references (inches): D = 2.432; H = 1.149; M = 3.170; N = 2.430; P = 3.060; Q = 0.050. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-1236; Outer Bearing: 370-0877; Inner Hub Bearing - Race: 370-11758; Outer Hub Bearing - Race: 370-0876. References identify compatible service parts and do not mean all bearings are included.
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Hat Mount
Fitment & Compatibility
Confirm the hub drawing and all mating surfaces before installation. Check the required bearing set, wheel stud thread and rotor alignment against the installed conversion.
