Product details

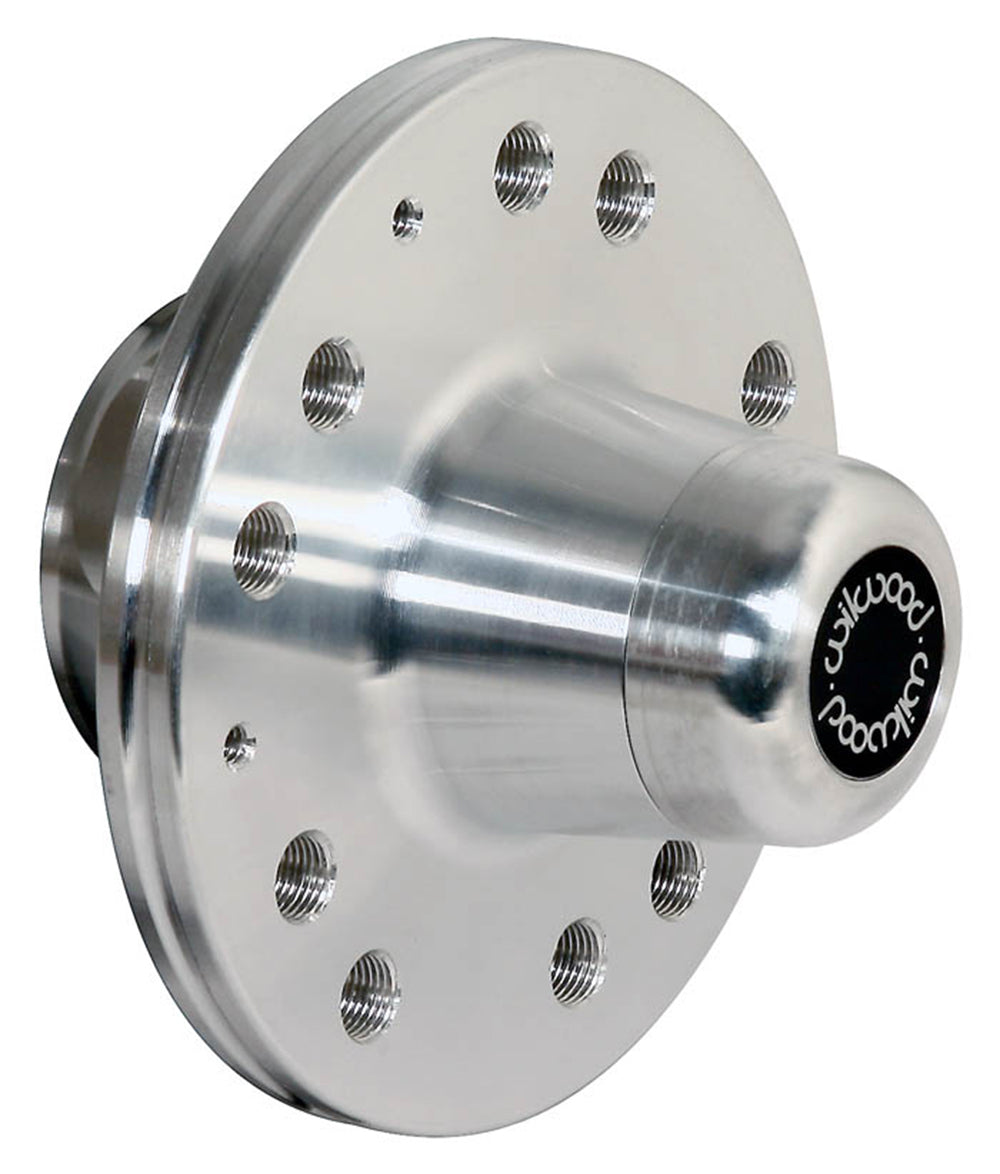

The 1973–1976 Mopar A-Body disc-spindle application uses a hat-mounted rotor with this hub. Bearing references differ from the adapter-mount alternative, making the complete spindle interface an essential check. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer part number: 270-11533
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Hat retention: Three 1/4-20 holes; Wilwood lists bolt kit 230-7032
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Hat Mount
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 4.50, 5 x 4.75 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Hat
- Product-page drawing references (inches): D = 2.619; H = 2.025; M = 3.730; N = 2.060; P = 3.140; Q = 0.250. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0884; Outer Bearing: 370-0877; Inner Hub Bearing - Race: 370-0883; Outer Hub Bearing - Race: 370-0876. References identify compatible service parts and do not mean all bearings are included.
Fitment & Compatibility
The wheel flange and rotor attachment are different interfaces. Check both against the specified hub, spindle and brake-kit drawing, including the bearings and required fasteners.
Wilwood component specifications · Manufacturer reference DS719
