Product details

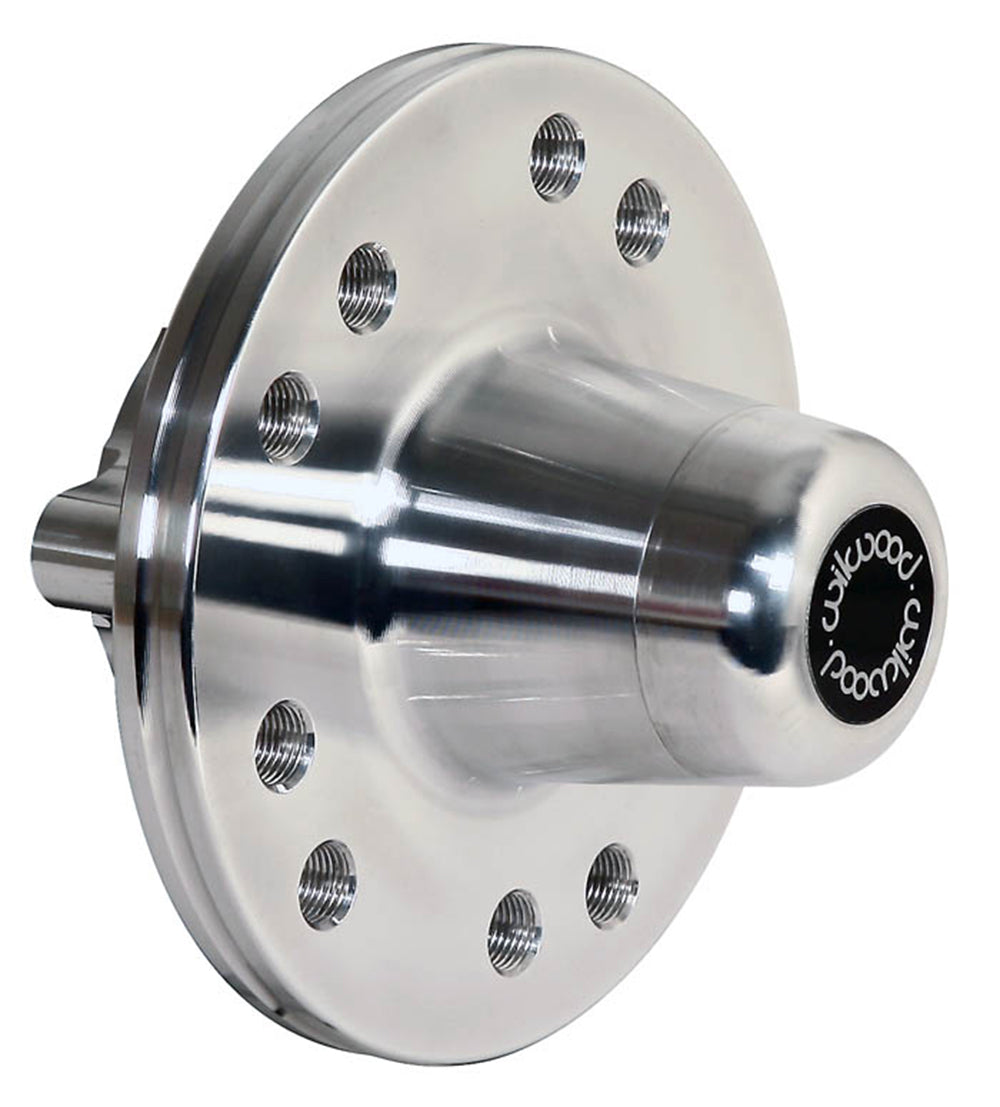

This Camaro hub carries the rotor-adapter mounting face at the 2.135-inch A reference. Its longer spacing separates it from the 1.584-inch configuration used in other conversions for the same model years. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 270-11048
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Vented Rotor Offset
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 4.50, 5 x 4.75 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Adapter
- Rotor interface: 5 x 3.88; this is not the wheel bolt circle
- Compatible rotor-adapter output interface(s): 6 x 6.25, 8 x 7.00; match the actual adapter and rotor
- Product-page drawing references (inches): A = 2.135; D = 2.495; H = 1.600; M = 3.150; N = 1.840; P = 3.070; Q = 0.340. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0879; Outer Bearing: 370-0933; Inner Hub Bearing - Race: 370-0878; Outer Hub Bearing - Race: 370-0881. References identify compatible service parts and do not mean all bearings are included.
- Related assembly part reference(s): 300-3307; 300-3099; check the kit contents and obtain any separately required parts
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
Fitment & Compatibility
The wheel flange and rotor attachment are different interfaces. Check both against the specified hub, spindle and brake-kit drawing, including the bearings and required fasteners.
Wilwood component specifications · Manufacturer reference DS719
