Product details

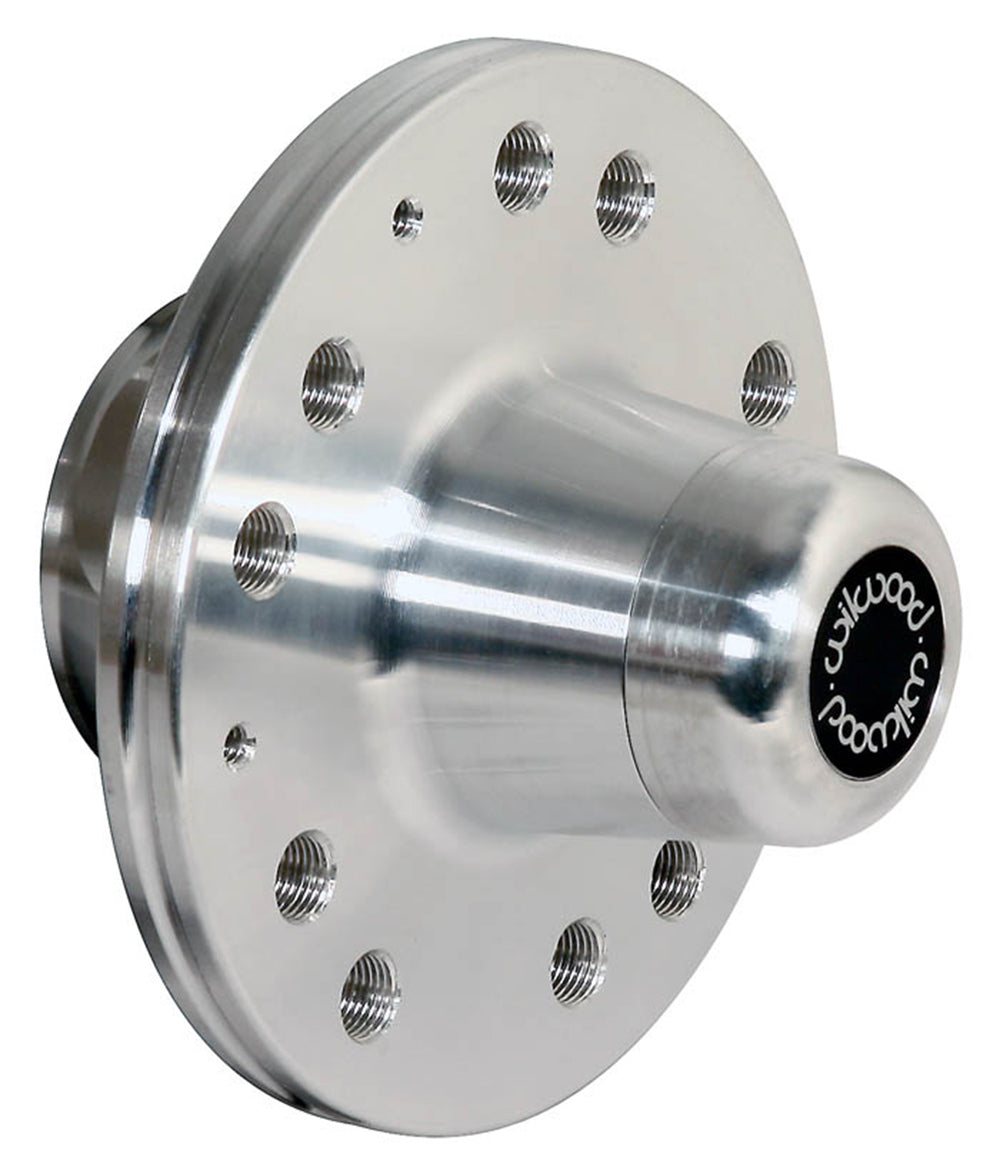

This front hub is specified for a Mopar B-Body drum-spindle brake conversion. It accepts a separate rotor hat retained at three threaded points; confirm the assembly dimensions rather than choosing by wheel pattern alone. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 270-10812
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Hat retention: Three 1/4-20 holes; Wilwood lists bolt kit 230-7032
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Hat Mount
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 4.50, 5 x 4.75 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Hat
- Product-page drawing references (inches): D = 2.330; H = 2.055; M = 3.710; N = 1.890; P = 3.180; Q = 0.270. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0879; Outer Bearing: 370-0877; Inner Hub Bearing - Race: 370-0878; Outer Hub Bearing - Race: 370-0876. References identify compatible service parts and do not mean all bearings are included.
- Conflicting published dimensions: Dim D: product page 2.330 inch, DS719 2.332 inch. Confirm the supplied hub and reference faces before using either value.
Fitment & Compatibility
Match the documented hub configuration to the installed spindle. Select the corresponding bearings and rotor hardware separately where they are not included; confirm the wheel and caliper clearance.
Wilwood component specifications · Manufacturer reference DS719
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
