Product details

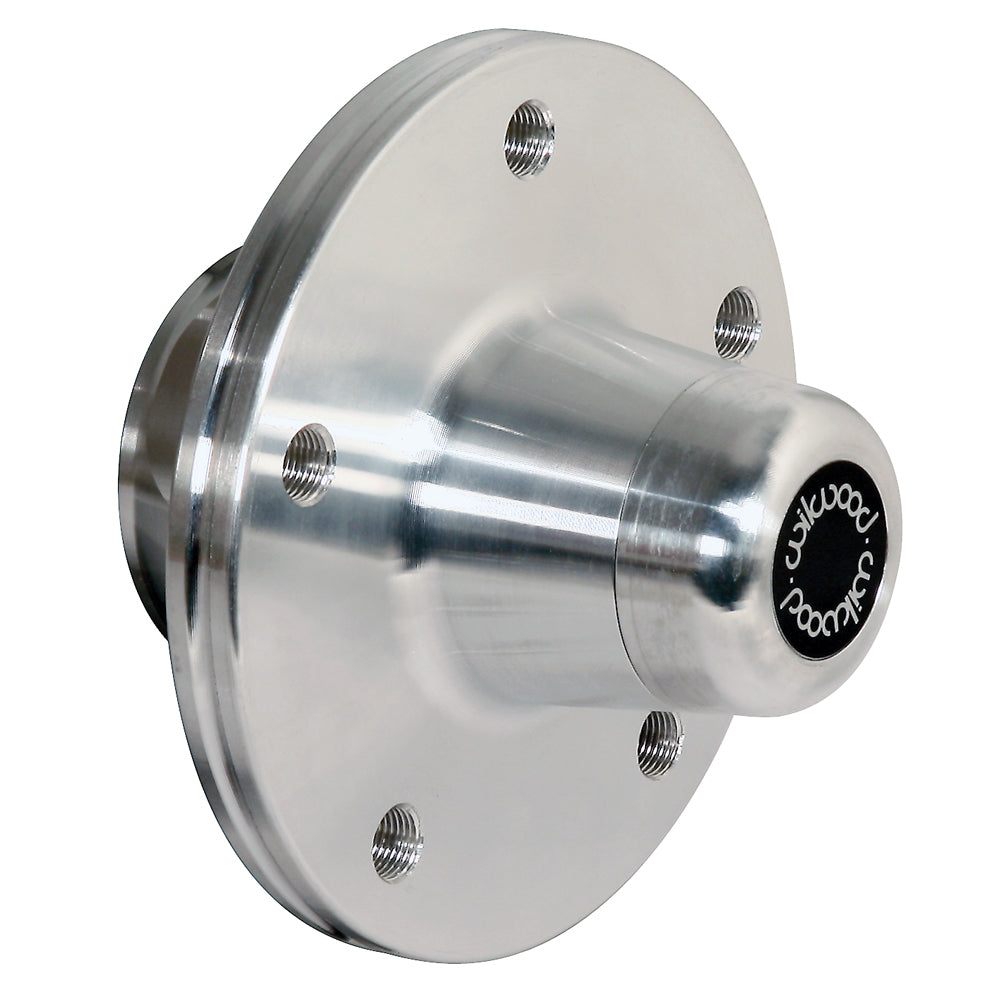

The five-on-five wheel flange makes this Pinto/Mustang II hat-mount hub distinct from the dual-pattern versions. The wheel pattern alone does not establish compatibility with a spindle, bearing or rotor hat. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 270-10658
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Hat retention: Three 1/4-20 holes; Wilwood lists bolt kit 230-7032
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Hat Mount
- Position in the specified assembly: Front
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 5.00 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Hat
- Product-page drawing references (inches): D = 2.495; H = 1.380; M = 3.150; N = 2.060; P = 3.210; Q = 0.380. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0884; Outer Bearing: 370-0882; Inner Hub Bearing - Race: 370-0883; Outer Hub Bearing - Race: 370-0881. References identify compatible service parts and do not mean all bearings are included.
Fitment & Compatibility
Identify the installed conversion and compare its hub drawing before ordering. The spindle, bearings, rotor connection and caliper alignment must agree as a complete assembly.
Wilwood component specifications · Manufacturer reference DS719
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
