Product details

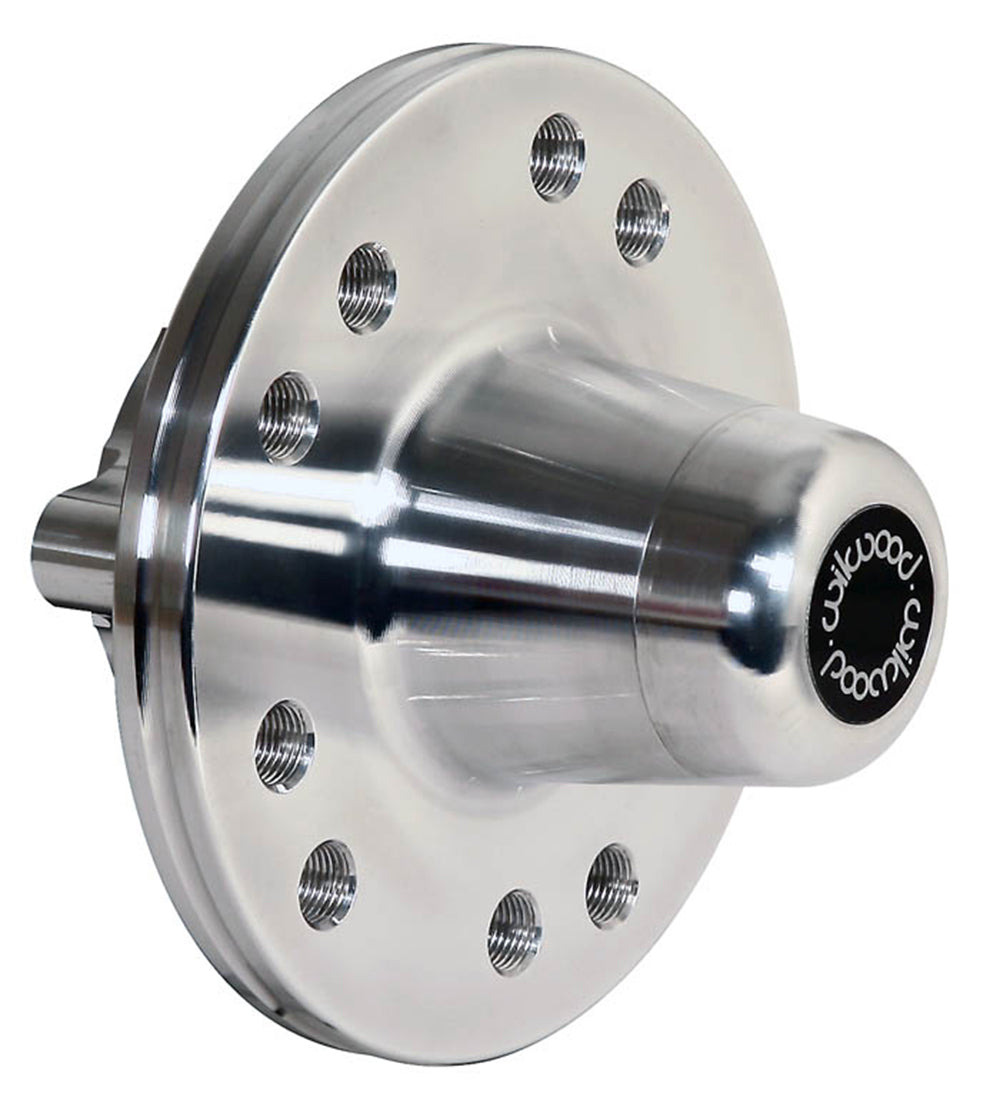

This front hub supports the vented-rotor adapter arrangement on a Wilwood ProSpindle. Two wheel patterns share the flange, while the rotor attaches through its own intermediate plate and fasteners. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 270-10044
- Material: Aluminum
- Finish: Bare
- Wheel mounting pattern(s): 5 x 4.50, 5 x 4.75 inches; separate from rotor or drive-flange attachment
- Wheel-stud thread: 1/2-20
- Rotor mounting arrangement: Adapter
- Rotor interface: 5 x 3.88; this is not the wheel bolt circle
- Compatible rotor-adapter output interface(s): 6 x 6.25, 8 x 7.00; match the actual adapter and rotor
- Product-page drawing references (inches): A = 1.750; D = 2.495; H = 1.700; M = 3.150; N = 1.740; P = 3.060; Q = 0.250. Use the manufacturer drawing for the reference faces.
- Manufacturer bearing / race references: Inner Bearing: 370-0884; Outer Bearing: 370-0882; Inner Hub Bearing - Race: 370-0883; Outer Hub Bearing - Race: 370-0881. References identify compatible service parts and do not mean all bearings are included.
- Related assembly part reference(s): 300-3307; 300-3099; check the kit contents and obtain any separately required parts
- Package: One hub; the compatible rotor, rotor adapter or hat and its attachment hardware are selected for the complete conversion
- Hub closure and races: Manufacturer describes included bearing races and screw-on aluminum cap; confirm the supplied assembly and obtain the compatible bearings separately
- Component: Hub - Vented Rotor Offset
- Position in the specified assembly: Front
Fitment & Compatibility
Match the documented hub configuration to the installed spindle. Select the corresponding bearings and rotor hardware separately where they are not included; confirm the wheel and caliper clearance.
Wilwood component specifications · Manufacturer reference DS719
