Wilwood Black 1-1/8-Inch Mopar Four-Bolt Tandem Master Kit with Right Valve, No Pushrod

The larger 1-1/8-inch bore is combined with a right-mounted valve and black body in this Mopar package. The master mounts through its four-bolt flange, while the input without a supplied rod requires separate actuation matching. Wilwood Engineering, the Camarillo, California disc brake manufacturer founded by Bill Wood in 1977, designs and builds systems for specialized, motorsport and street-performance applications. The product range covers brake lines, valves, fittings, calipers, master cylinders and rotors. A replacement component must preserve the intended relationship between the system's hydraulic and mechanical parts.

Technical Details

• Manufacturer part number: 261-17799-BK
• Material: Aluminum
• Cylinder bore: 1-1/8"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral
• Fluid capacity: 7.8 / 4.7 oz
• Overall Length: 7.16"
• Mounting centers: 3.25 × 1.76"
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-20 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

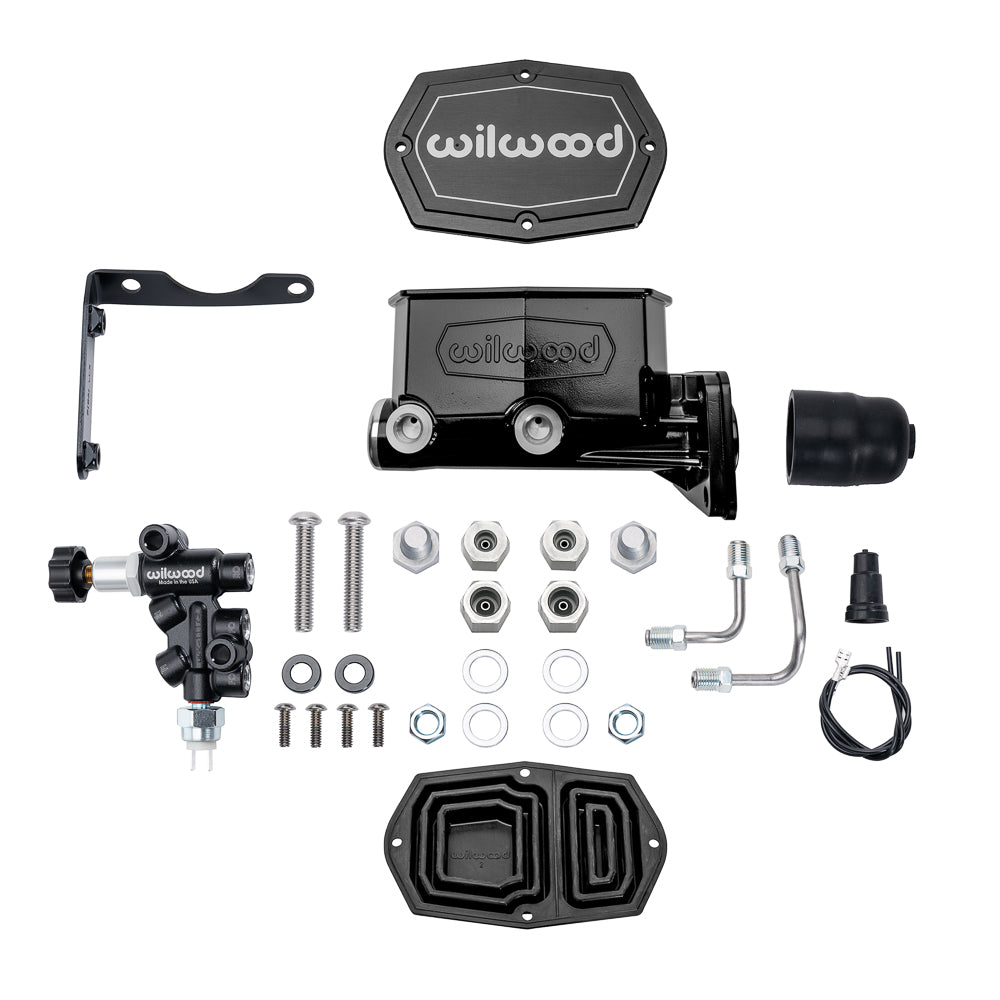

• Kit contents: Master cylinder, right-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
• Flange-to-end references: Exact product page: 6.55 inches; DS-1520 dimensional drawing: 6.70 inches. Confirm the available installation envelope.
• Circuit routing: Primary outlet A feeds the axle with greater total effective caliper piston area, normally the front; secondary B feeds the lesser-area axle, normally the rear. Outlet locations are reversed from the original Mopar master cylinder; follow DS-1520.
• Linkage: Pushrod not included; match the existing or separately supplied actuation interface

Fitment & Compatibility

Confirm the exact Mopar mount and booster rod depth. Check bore choice, complete piston movement and right-side tubing clearance against the installed system.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1520 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood DS1178 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
