Wilwood Right-Valve Mopar Master Kit, Chrome Powder-Coated 15/16-Inch Bore with Four-Bolt Mount and Manual Pushrod

SKU: 261-17796-P

$549.28

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

A chrome powder-coated, 15/16-inch compact master and manual Mopar pushrod are paired with the right valve bracket. The master's four-bolt mounting flange must suit the firewall interface while allowing room for the formed connecting tubes. Wilwood Engineering's design and manufacturing work covers disc brake systems for specialized applications, street performance and motorsport. Founded by Bill Wood in 1977, the company operates from Camarillo, California. Its component range includes master cylinders, fittings, brake lines, rotors, valves and calipers, each requiring selection in the context of the complete brake system.

Technical Details

Manufacturer part number: 261-17796-P
Material: Aluminum
Cylinder bore: 15/16"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral
Fluid capacity: 7.8 / 4.7 oz
Overall Length: 8.92"
Mounting centers: 3.25 × 1.76"
Finish: Chrome powder coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-20 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

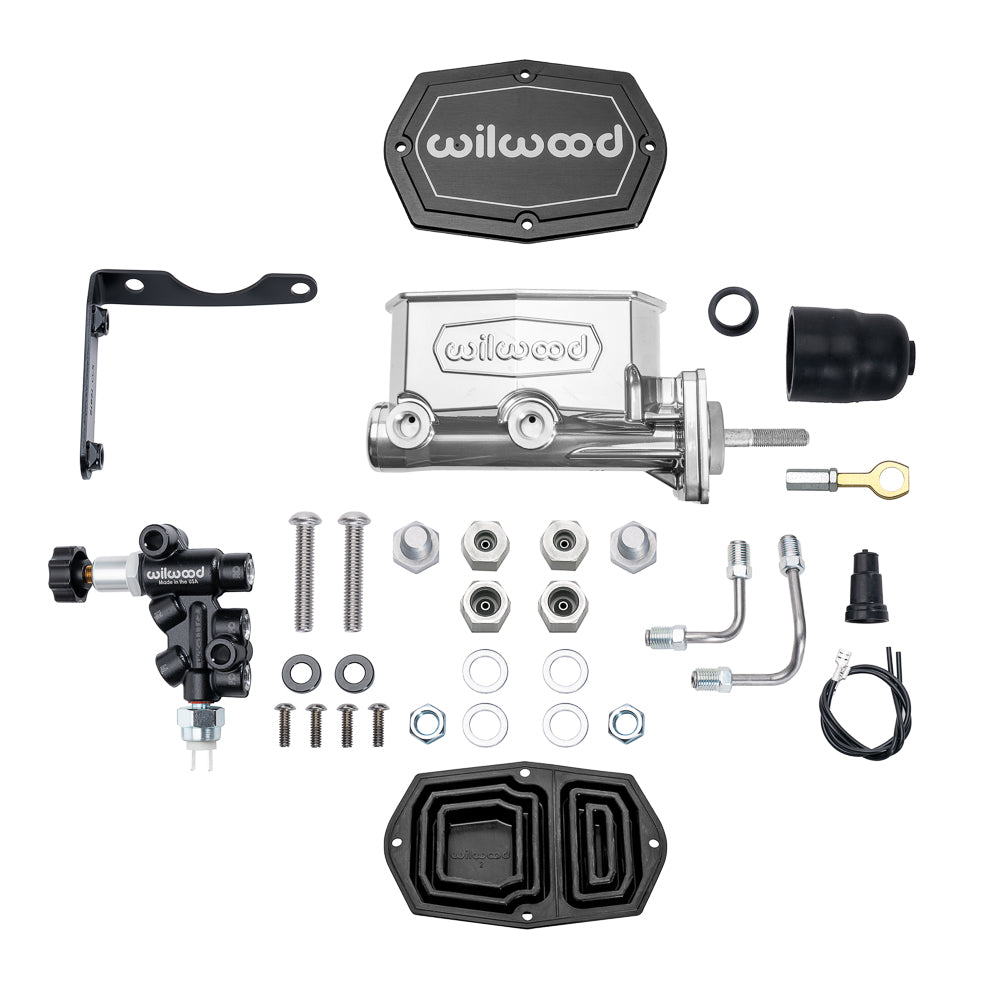

Kit contents: Master cylinder, right-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
Flange-to-end references: Exact product page: 6.55 inches; DS-1520 dimensional drawing: 6.70 inches. Confirm the available installation envelope.
Circuit routing: Primary outlet A feeds the axle with greater total effective caliper piston area, normally the front; secondary B feeds the lesser-area axle, normally the rear. Outlet locations are reversed from the original Mopar master cylinder; follow DS-1520.
Linkage: Included pushrod with Mopar eyelet; 3/8-24 adjustment thread. The drawing identifies a 2.00-inch eyelet, not the complete pushrod length.

Fitment & Compatibility

Confirm manual-pedal alignment and right-side valve clearance. Check adapter seats separately from native master threads, and preserve the circuit arrangement specified by Wilwood.

Manufacturer Documents

The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
