Wilwood Black Mopar Compact Master Kit, 15/16-Inch Bore, Manual Pushrod and Right Valve

SKU: 261-17796-BK

$549.28

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

The right-side bracket changes the installation envelope of this black Mopar manual kit. Its 15/16-inch compact master has a four-bolt mounting flange, a supplied pushrod and separate hydraulic circuits. Master cylinders are part of Wilwood Engineering's wider disc brake range, alongside calipers, rotors, valves, fittings and brake lines. Wilwood was founded in 1977 by Bill Wood and designs and manufactures its systems from Camarillo, California for motorsport, specialized and street-performance applications. Hydraulic sizing and mechanical compatibility remain decisions for the complete brake system.

Technical Details

Manufacturer part number: 261-17796-BK
Material: Aluminum
Cylinder bore: 15/16"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral
Fluid capacity: 7.8 / 4.7 oz
Overall Length: 8.92"
Mounting centers: 3.25 × 1.76"
Finish: Black E-coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-20 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

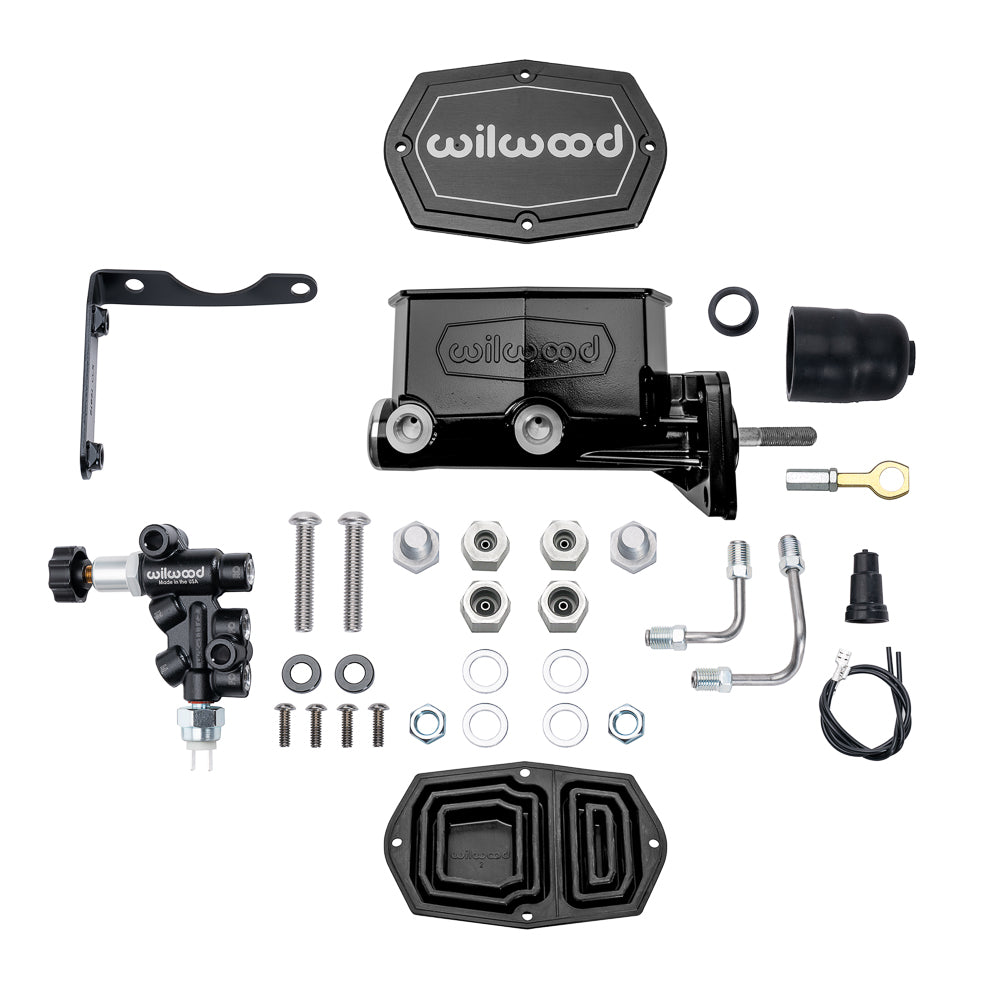

Kit contents: Master cylinder, right-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
Flange-to-end references: Exact product page: 6.55 inches; DS-1520 dimensional drawing: 6.70 inches. Confirm the available installation envelope.
Circuit routing: Primary outlet A feeds the axle with greater total effective caliper piston area, normally the front; secondary B feeds the lesser-area axle, normally the rear. Outlet locations are reversed from the original Mopar master cylinder; follow DS-1520.
Linkage: Included pushrod with Mopar eyelet; 3/8-24 adjustment thread. The drawing identifies a 2.00-inch eyelet, not the complete pushrod length.

Fitment & Compatibility

Check the actual Mopar pedal connection and right-side tube clearance. Confirm flange fit and the brake-line adapters' thread and flare details.

Manufacturer Documents

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
