Wilwood Black One-Inch Mopar Manual Master Kit with Four-Bolt Mount, Pushrod and Left Valve

SKU: 261-17319-BK

$549.28

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

This one-inch compact tandem package adds the Mopar manual-pedal pushrod to the four-bolt mounting arrangement. Its left-mounted combination valve and connecting tubes must fit the exact firewall and brake-line layout. A disc brake manufacturer based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures calipers, rotors, brake lines, fittings, valves and master cylinders for street-performance, motorsport and specialized systems. The chosen service part must agree with the complete system's connections, dimensions and operating demands.

Technical Details

Manufacturer part number: 261-17319-BK
Material: Aluminum
Cylinder bore: 1.00"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral
Fluid capacity: 7.8 / 4.7 oz
Overall Length: 8.92"
Mounting centers: 3.25 × 1.76"
Finish: Black E-coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-20 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

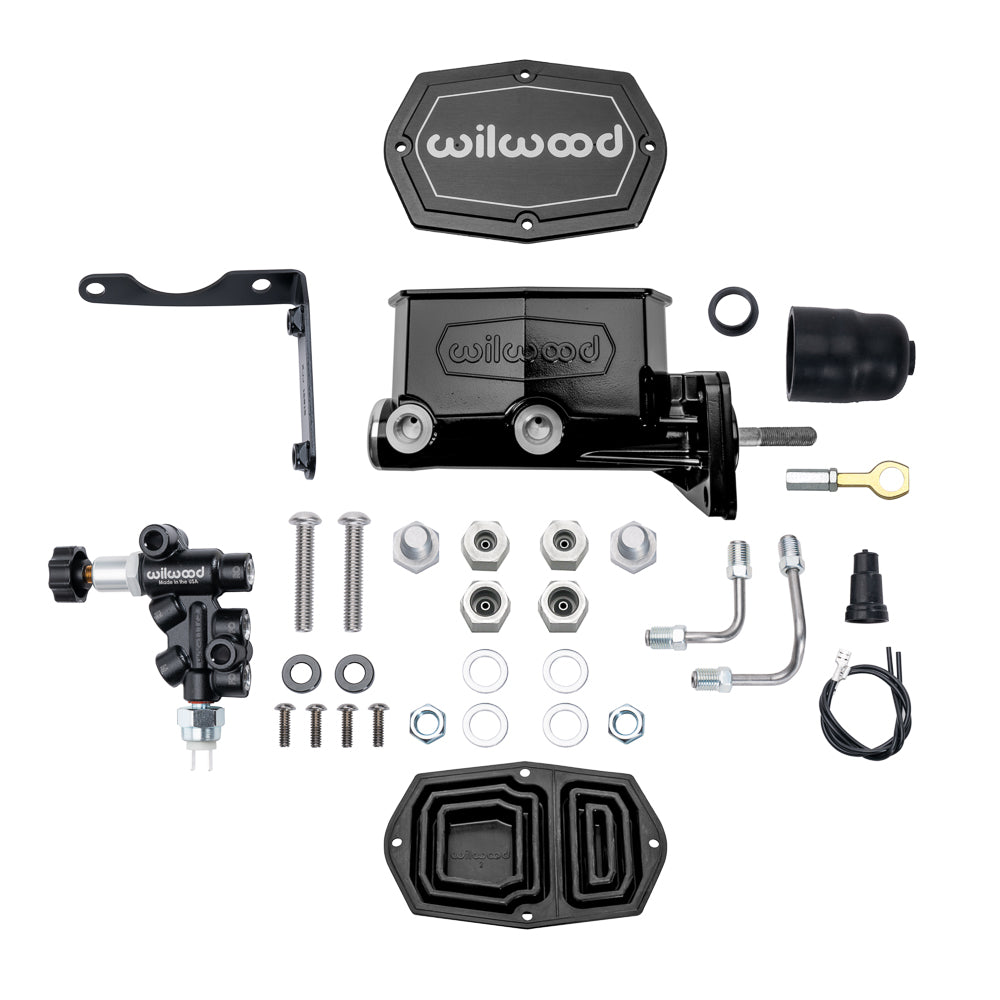

Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
Flange-to-end references: Exact product page: 6.55 inches; DS-1520 dimensional drawing: 6.70 inches. Confirm the available installation envelope.
Circuit routing: Primary outlet A feeds the axle with greater total effective caliper piston area, normally the front; secondary B feeds the lesser-area axle, normally the rear. Outlet locations are reversed from the original Mopar master cylinder; follow DS-1520.
Linkage: Included pushrod with Mopar eyelet; 3/8-24 adjustment thread. The drawing identifies a 2.00-inch eyelet, not the complete pushrod length.

Fitment & Compatibility

Confirm the Mopar pedal connection, pushrod adjustment and four-bolt flange. Check the native ports separately from the supplied inverted-flare adapters.

Manufacturer Documents

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
