Wilwood Black Mopar Four-Bolt Compact Tandem Master Kit, 15/16-Inch Bore, Pushrod and Left Valve

SKU: 261-16796-BK

$549.28

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

A four-bolt mounting flange is built into the black 15/16-inch compact master in this manual-brake kit. The supplied pushrod and left-side combination valve must match the pedal and hydraulic circuit arrangement. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. Its disc brake design and manufacturing range includes valves, master cylinders, calipers, brake lines, rotors and fittings for street-performance, specialized and motorsport use. These parts are selected together so the completed braking system has the required hydraulic and mechanical arrangement.

Technical Details

Manufacturer part number: 261-16796-BK
Material: Aluminum
Cylinder bore: 15/16"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral
Fluid capacity: 7.8 / 4.7 oz
Overall Length: 8.92"
Mounting centers: 3.25 × 1.76"
Finish: Black E-coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-20 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

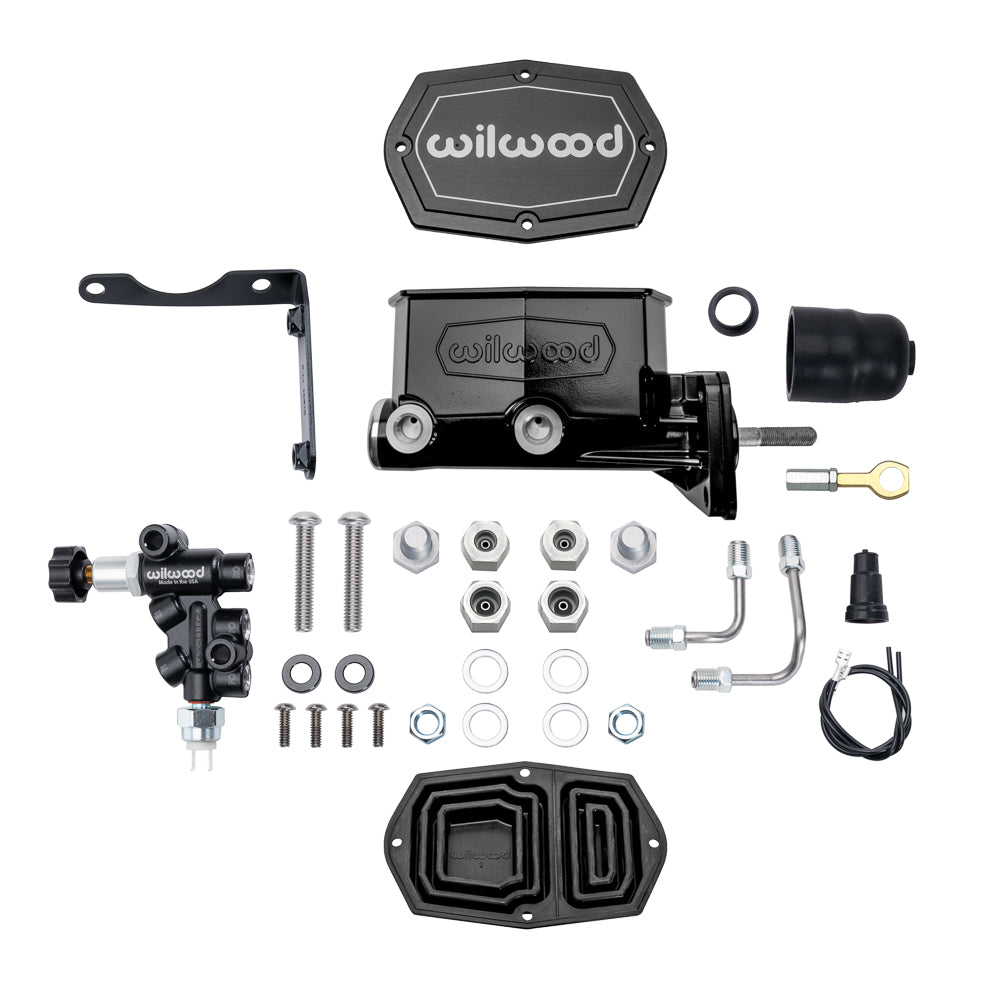

Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
Flange-to-end references: Exact product page: 6.55 inches; DS-1520 dimensional drawing: 6.70 inches. Confirm the available installation envelope.
Circuit routing: Primary outlet A feeds the axle with greater total effective caliper piston area, normally the front; secondary B feeds the lesser-area axle, normally the rear. Outlet locations are reversed from the original Mopar master cylinder; follow DS-1520.
Linkage: Included pushrod with Mopar eyelet; 3/8-24 adjustment thread. The drawing identifies a 2.00-inch eyelet, not the complete pushrod length.

Fitment & Compatibility

Match the Mopar four-bolt flange and manual pedal connection. Confirm the adapters' exact threads and flare seats against the vehicle lines.

Manufacturer Documents

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
