Wilwood Black One-Inch Mustang Compact Master Kit, Right Valve and Manual Pushrod

A one-inch master is supplied with the manual Mustang pushrod in this right-bracket kit. It differs from the one-inch assembly supplied without a rod, so select the package by its pedal connection as well as bore. The broader Wilwood Engineering range includes calipers, brake lines, rotors, valves, fittings and master cylinders for disc brake systems. Established by Bill Wood in 1977 and based in Camarillo, California, Wilwood designs and manufactures for motorsport, street-performance and specialized applications. Correct component selection considers the complete system's geometry and hydraulic requirements.

Technical Details

• Manufacturer part number: 261-15665-BK
• Material: Aluminum
• Cylinder bore: 1.00"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
• Fluid capacity: 7.8 / 4.7 oz
• Flange-to-end length: 6.55"
• Overall Length: 12.32"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 5.75"
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

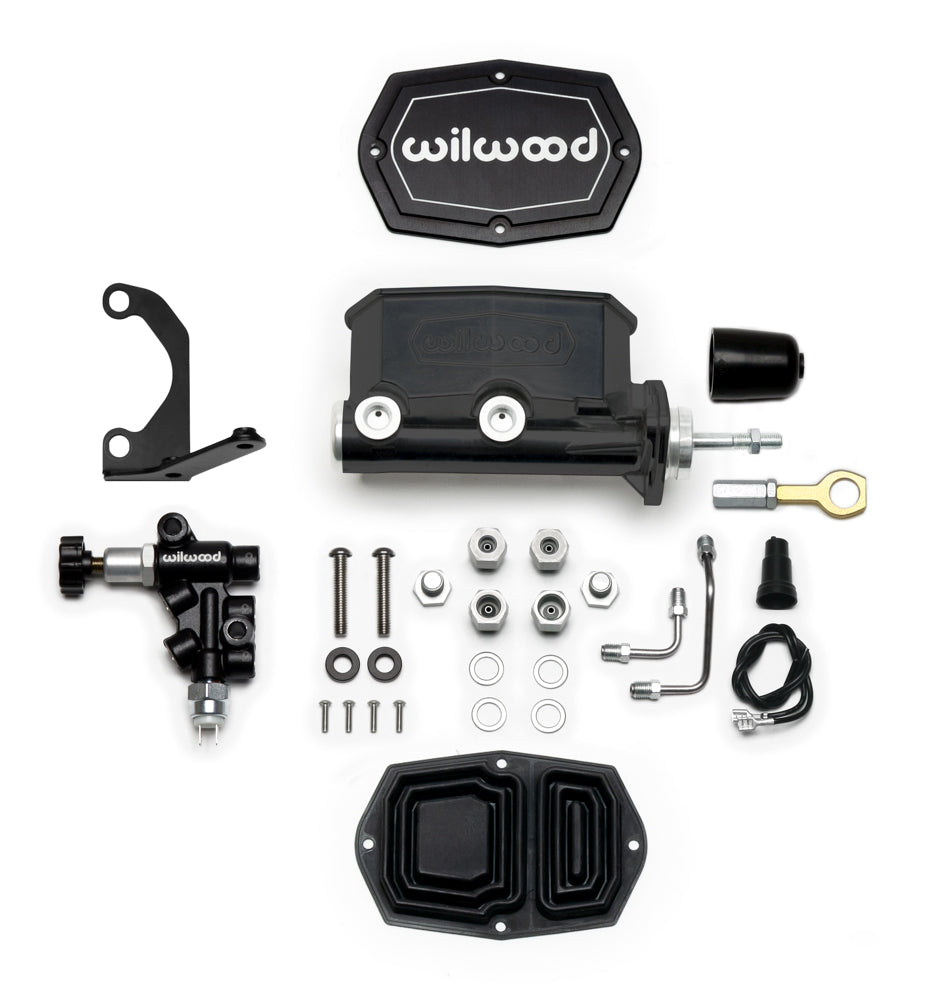

• Kit contents: Master cylinder, right-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Confirm the listed classic Mustang installation and clevis engagement. Check right-side clearance and master sizing against the actual brake configuration.

Wilwood’s kit summary gives a 1964–1973 Ford/Mustang range, while the corresponding bare-master family identifies 1964–1972. Confirm the actual manual pedal, supplied eyelet and mounting geometry, particularly for 1973, before ordering.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications
• Wilwood DS1287 instructions and specifications
• Wilwood DS1178 instructions and specifications
• Wilwood FL311 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
