Wilwood Right-Bracket Tandem Master Cylinder Kit, Chrome Powder-Coated 7/8-Inch Body with Pushrod

A chrome powder-coated, 7/8-inch master body and right-mounted combination valve form this compact package. The included pushrod serves the specified manual actuation arrangement, which must retain correct alignment and free play. Wilwood Engineering serves motorsport, specialized and street-performance applications through disc brake system design and manufacturing. Bill Wood founded the company in 1977, and it is based in Camarillo, California. The range spans valves, rotors, fittings, calipers, brake lines and master cylinders; the installed braking assembly determines the appropriate combination of parts.

Technical Details

• Manufacturer part number: 261-15659-P
• Material: Aluminum
• Cylinder bore: 7/8"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
• Fluid capacity: 7.8 / 4.7 oz
• Flange-to-end length: 6.55"
• Overall Length: 10.93"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.38" x 3/8-24
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

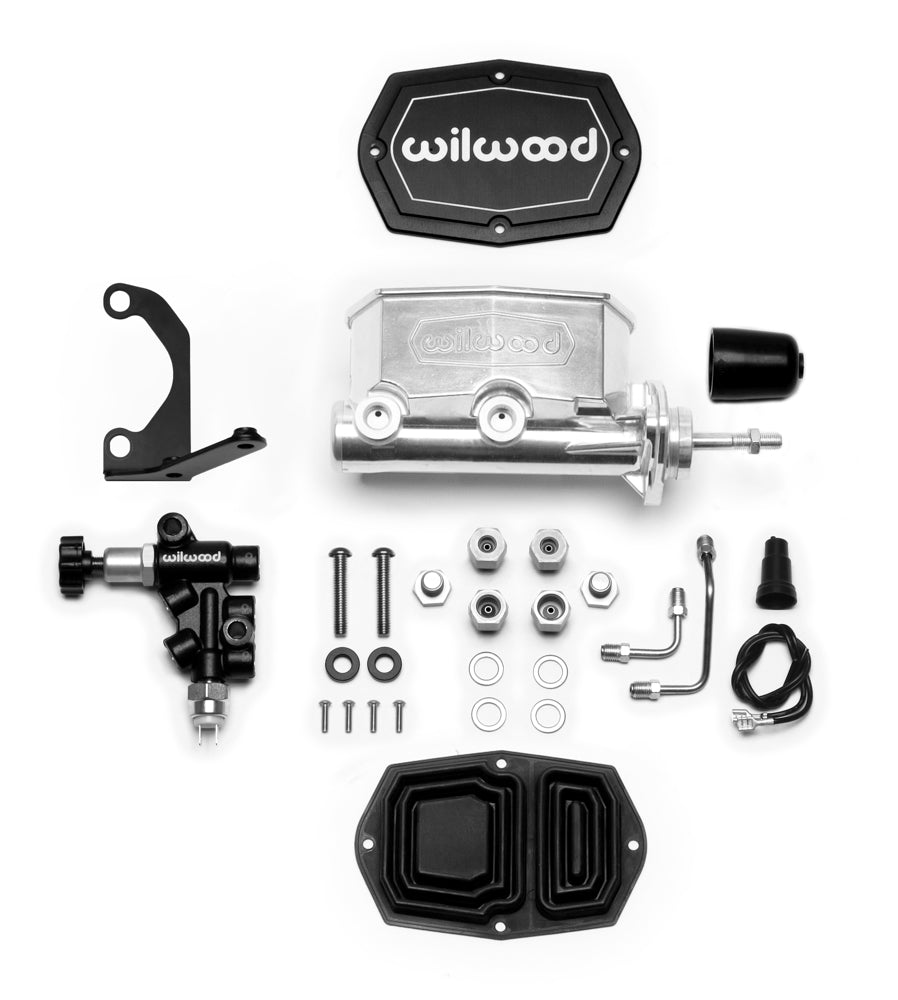

• Kit contents: Master cylinder, right-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Check right-side clearance and the intended pedal linkage. Verify flange spacing and full piston stroke before setting the pedal stop.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications
• Wilwood DS1287 instructions and specifications
• Wilwood FL467 instructions and specifications
• Wilwood DS1178 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
